Steering Column: Diagrams

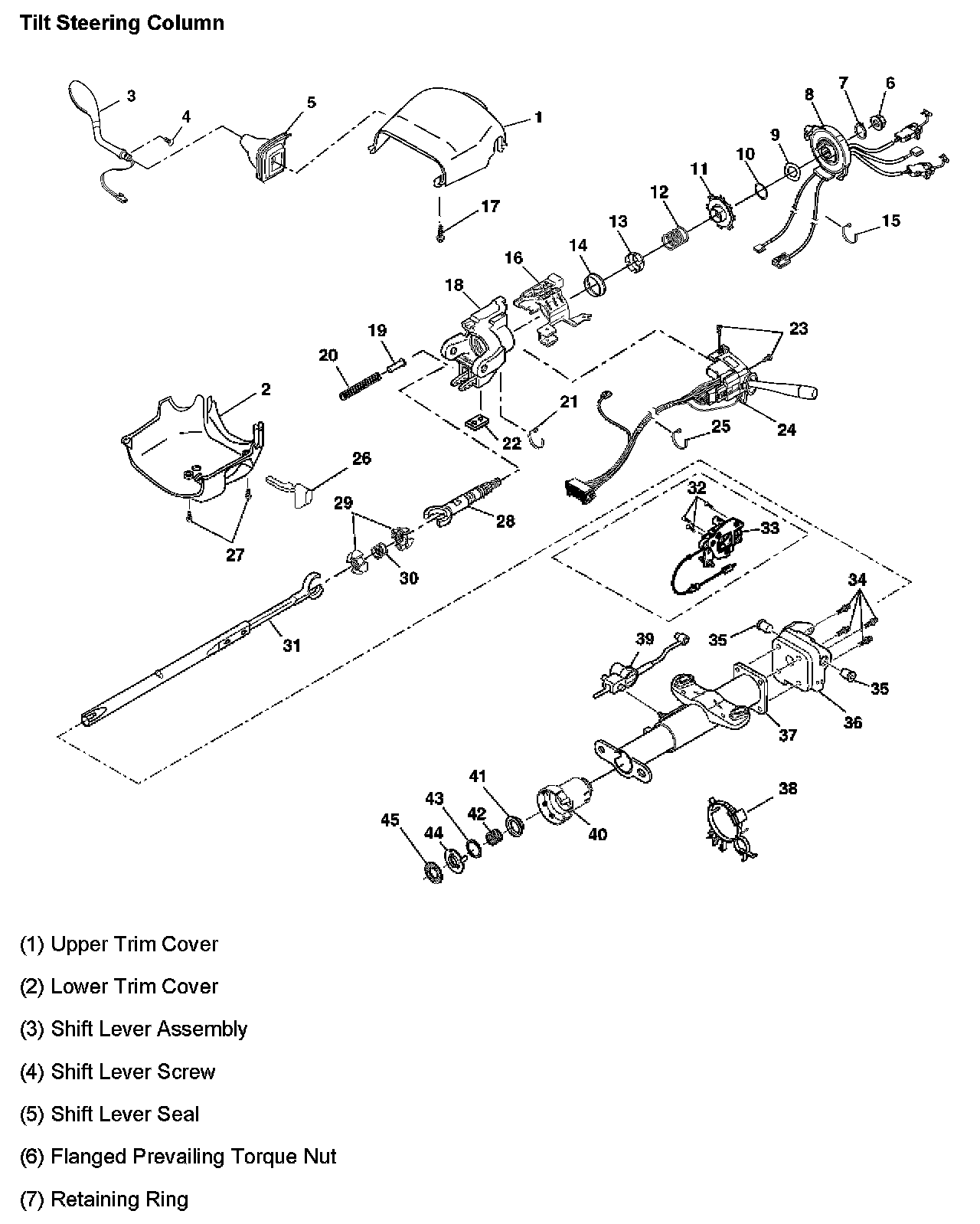

Tilt Steering Column Part 1:



Tilt Steering Column Part 2:



Tilt Steering Column Part 1:



Tilt Steering Column Part 2:
