Keyless Entry Receiver: Service and Repair

REMOTE CONTROL DOOR LOCK RECEIVER REPLACEMENT

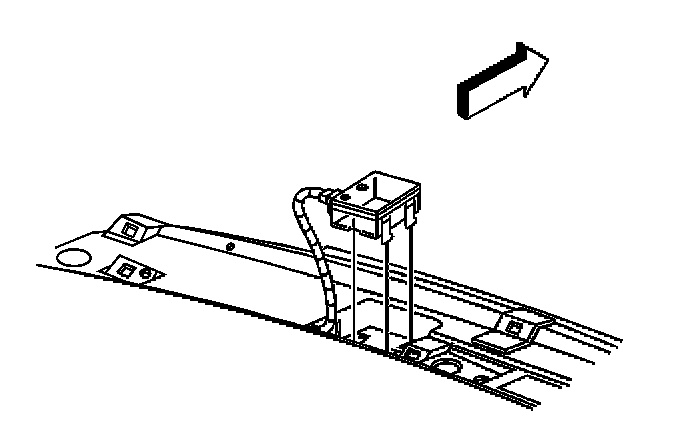

REMOVAL PROCEDURE




1. Remove the instrument panel (IP) upper trim panel.
2. Disengage the receiver retainers from the IP upper trim pad.
3. Disconnect the receiver electrical connector.
4. Remove the receiver.

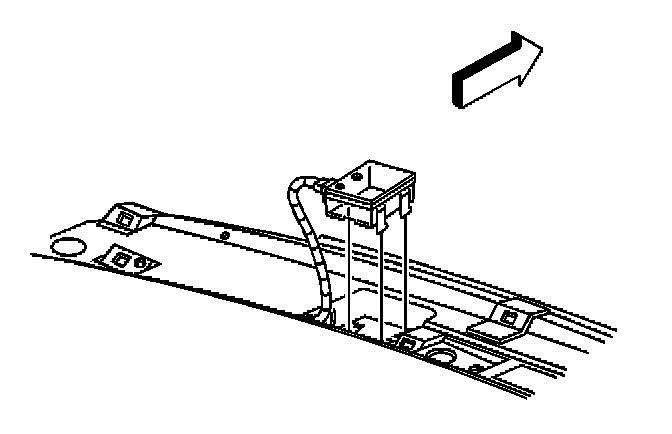

INSTALLATION PROCEDURE




1. Connect the electrical connector.
2. Engage the receiver retainers to the IP upper trim pad.
3. Install the IP upper trim panel.
4. If a new remote control door lock receiver is being installed, synchronize the transmitter. Programming and Relearning
5. If a new remote control door lock receiver is being installed, program the transmitter. Programming and Relearning
