Seat Back Cover Replacement - Rear (Folding)

Seat Back Cover Replacement - Rear (Folding)

Removal Procedure

1. Remove the rear seat back.
2. Remove the rear seat back bolsters.

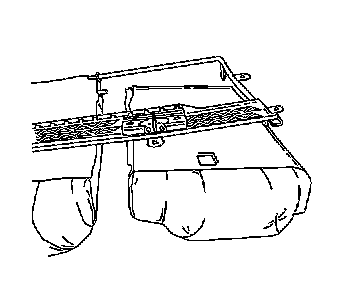

3. Remove the seat back frame bolts (1).




4. Remove the left seat back from the seat back frame.




5. Remove the right seat back from the seat back frame.




6. Unhook the J-hook retainers at the bottom of the seat back.
7. Pull back the carpet in order to expose the seat trim flaps. Remove the staples.




8. Reach inside of the seat back cover in order to unfasten the hook and loop retainers that secure the seat back cover to the pad.
9. Remove the folding armrest, if equipped.




10. Remove the seat back cover by pulling the cover up and over the pad.

Installation Procedure




1. Install the rear seat back cover by pulling the cover down and over the pad.
2. Reach inside of the right seat back cover and reposition the release pullstrap through the cover.
3. Align the hook and the loop retainers.




4. Use firm hand pressure in order to fasten the hook and loop retainers, securing the seat back cover to the pad.
5. Install the folding armrest, if equipped.




6. Reposition the seat back cable on the right seat back.
7. Reposition the seat trim flaps.




8. Install new staples to the seat trim flaps.




9. Fasten the J-hook retainer at the bottom of the seat back.




10. Install the left seat back to the seat back frame.




11. Install the right seat back to the seat back frame.






Notice: Refer to Fastener Notice in Service Precautions.

12. Install the seat back frame bolts (1).

Tighten the bolts to 10 N.m (89 lb in).

13. Install the rear seat back bolsters.
14. Install the seat back.
