Home >> Chevrolet >> 2003 >> Monte Carlo V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> C101-C126 >> Inline Connector C126

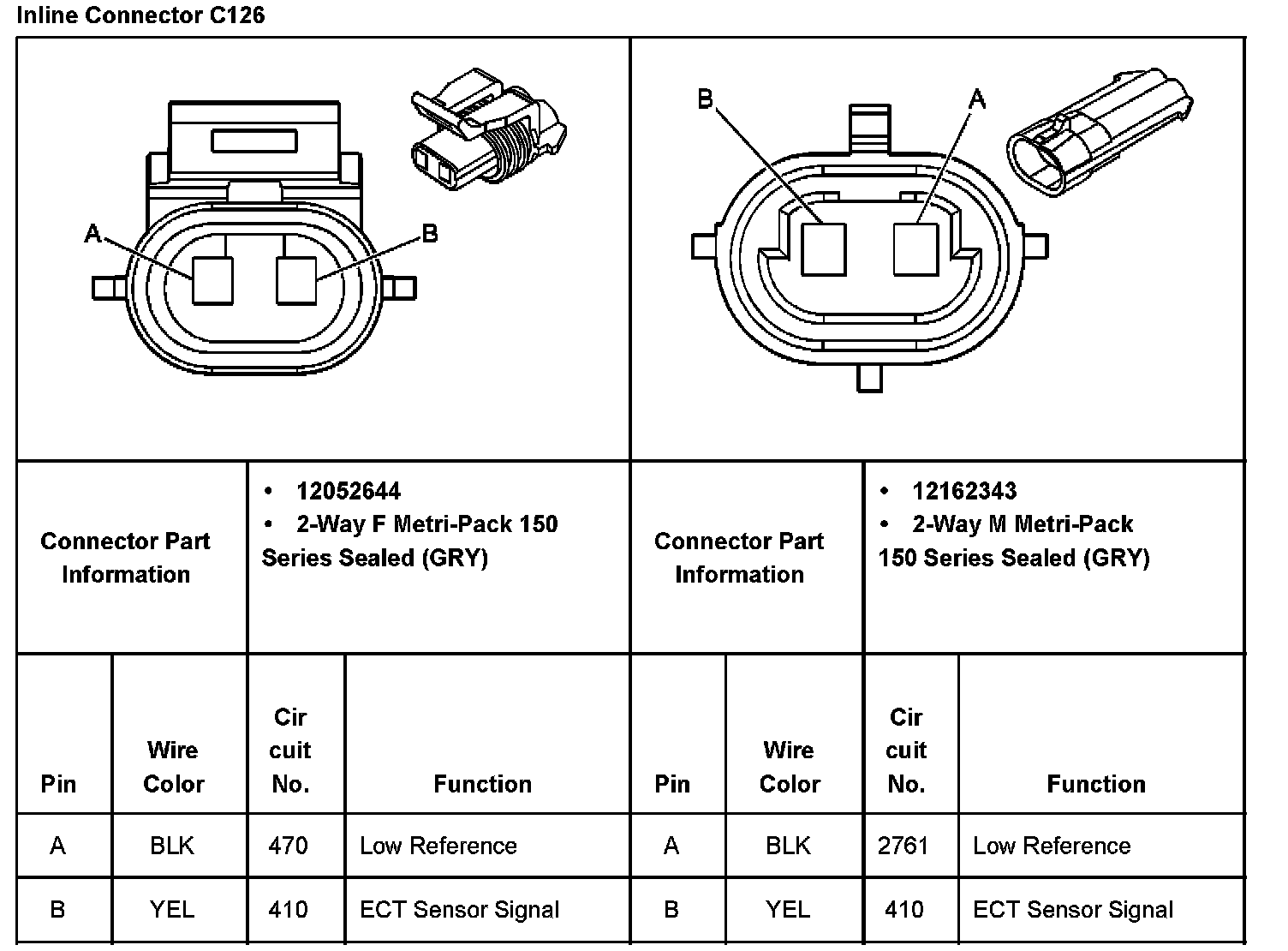

Inline Connector C126

Inline Connector C126:
