Home >> Chevrolet >> 2003 >> Monte Carlo V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C201-C299 >> Inline Connector C255

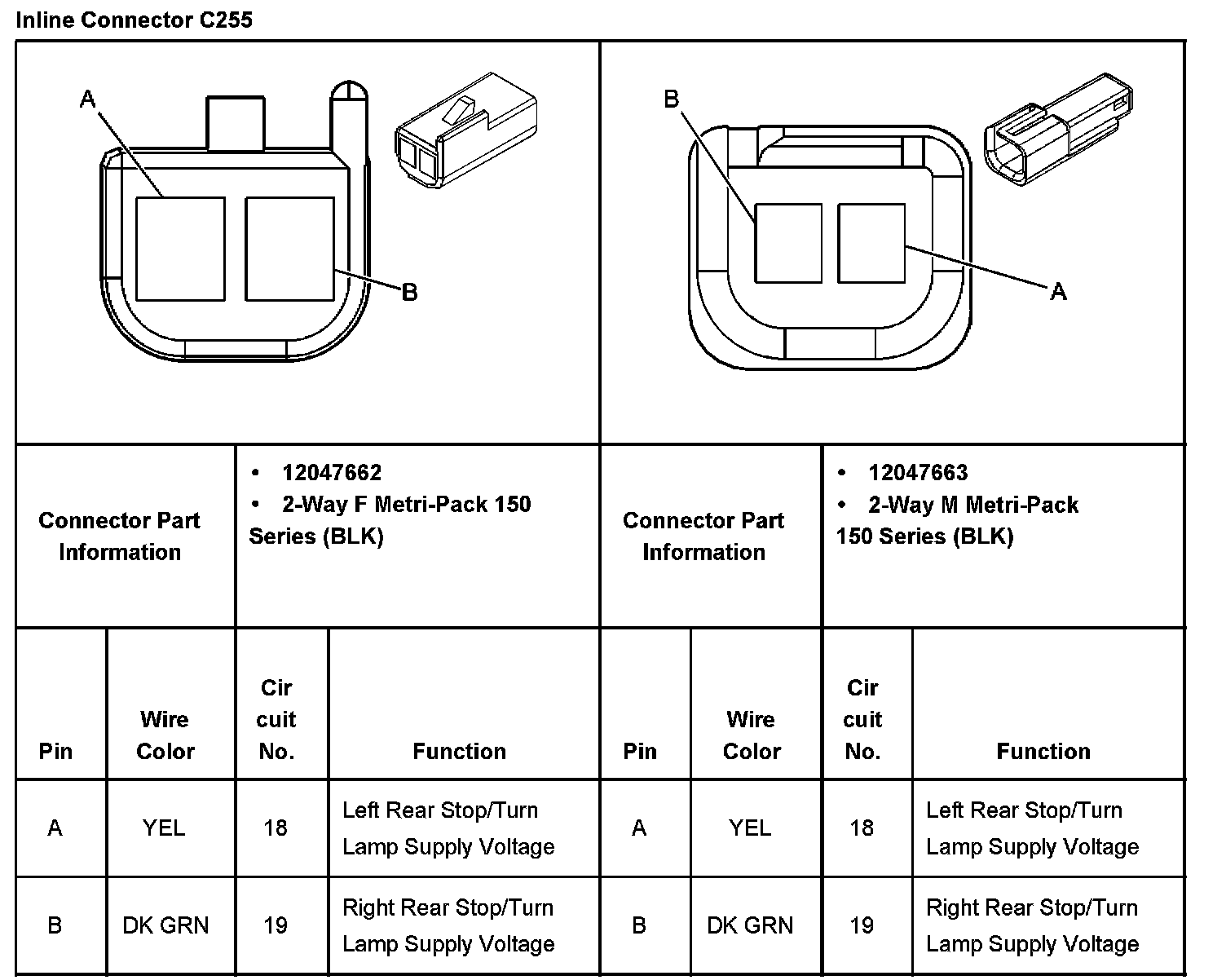

Inline Connector C255

Inline Connector C255:
