Transmission Control Systems

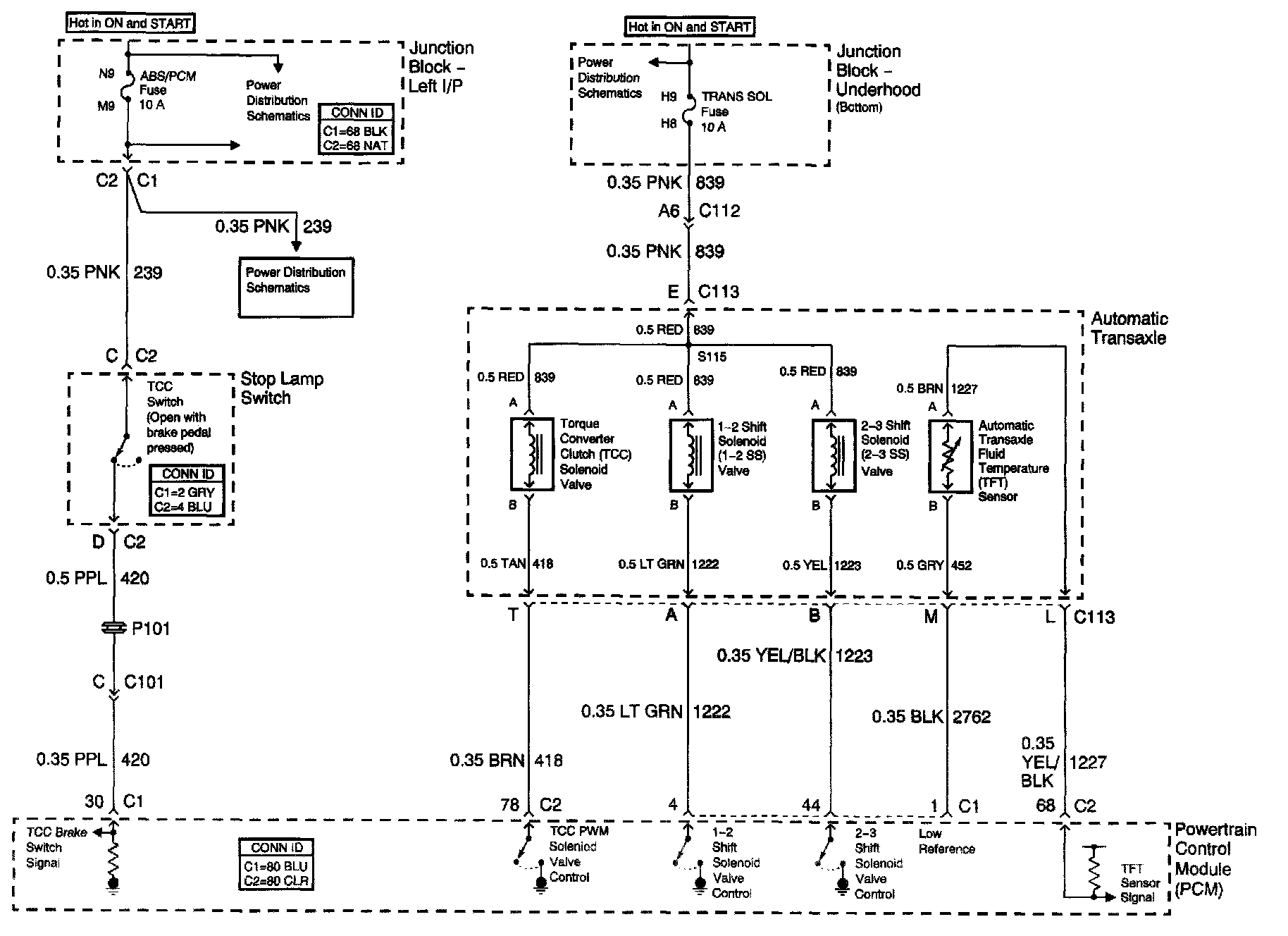

Automatic Transmission Controls Diagrams (Solenoids, TCC, And TFT):

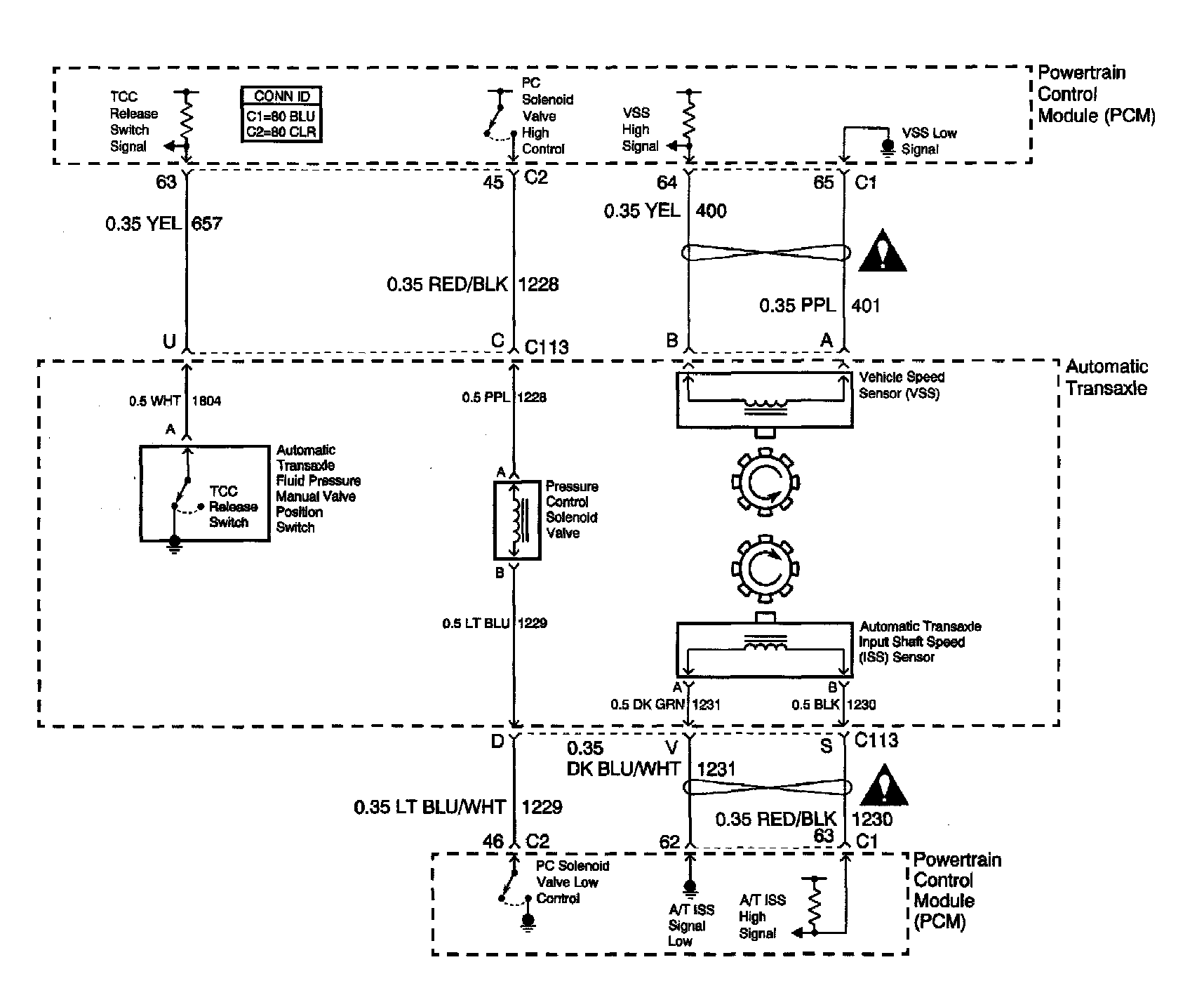

Automatic Transmission Controls Diagrams (ISS, Pressure Control Solenoid Valve, And VSS):

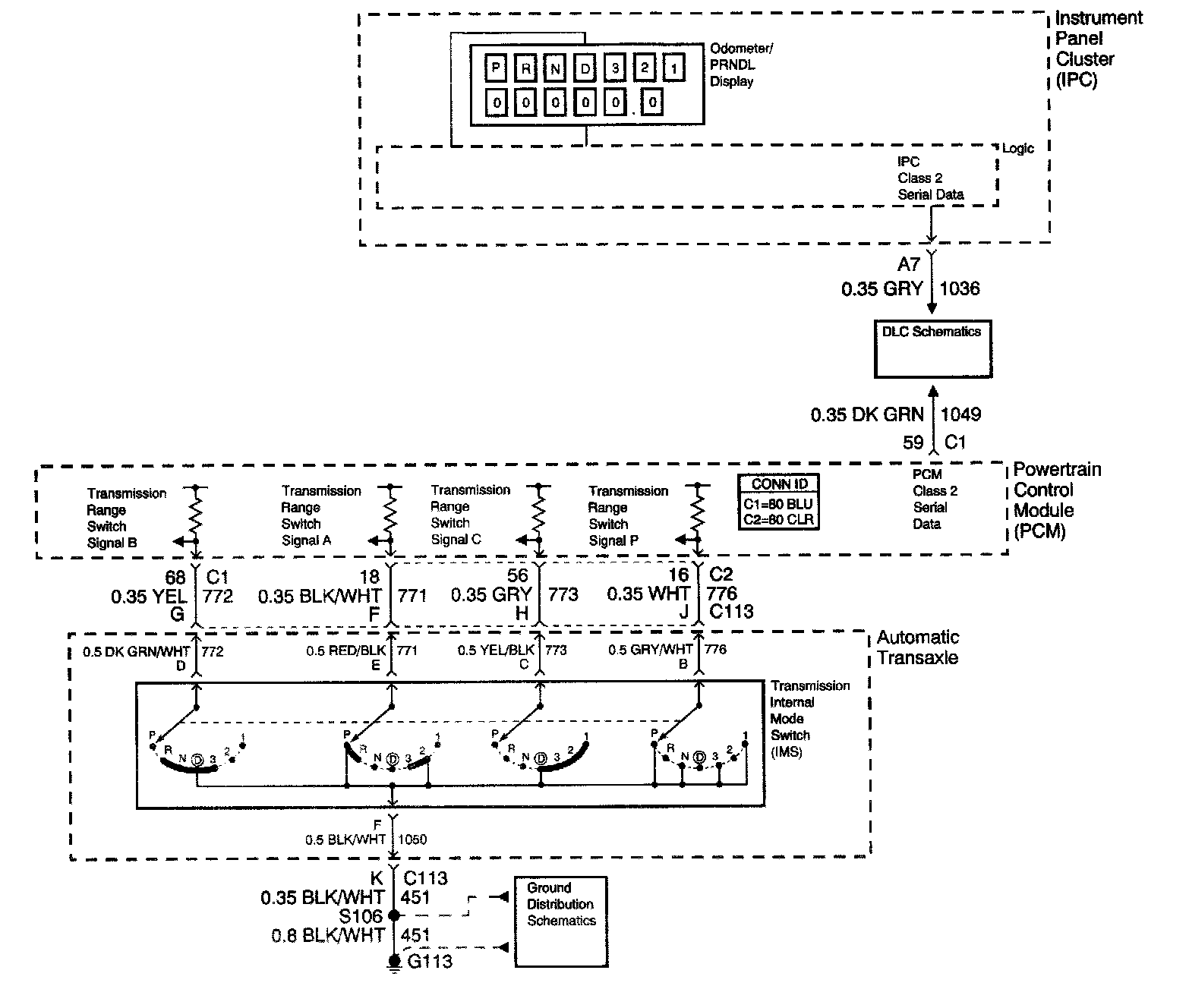

Automatic Transmission Control Diagrams (PRNDL):
