Radiator Air Baffle and Deflector Replacement - Side
Radiator Air Baffle and Deflector Replacement - SideRemoval Procedure

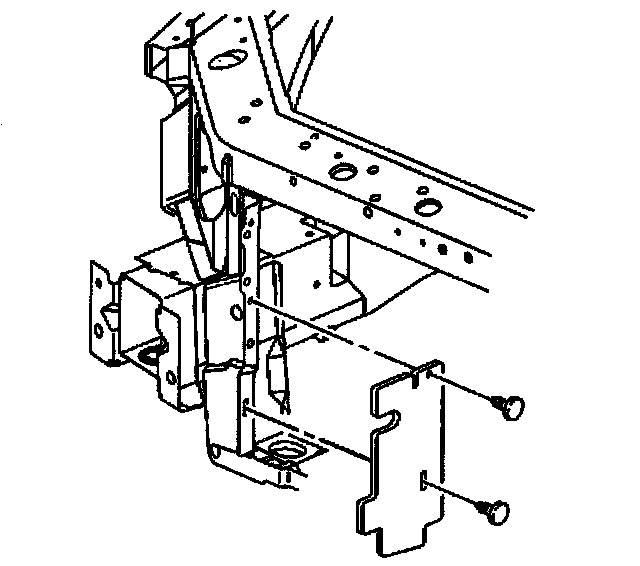

1. Remove the radiator side air deflector retainers. Reposition the ambient temperature sensor.
2. Remove the radiator side air deflectors.
Installation Procedure

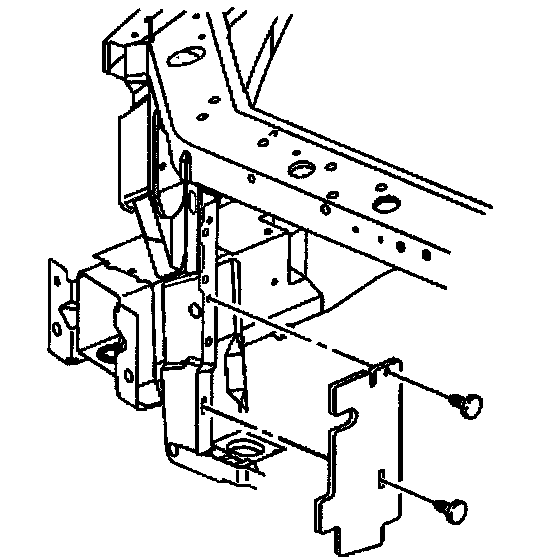

1. Position the radiator side air deflectors to the vehicle. Position the ambient temperature sensor to the proper location.
2. Install the radiator side air deflector retainers.
