Instrument Panel (IP) - Trim Plate Replacement - Lower

Trim Plate Replacement - Instrument Panel (I/P) Lower

Removal Procedure




1. Open the instrument panel (IP) compartment door.

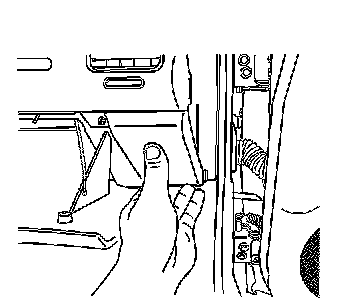

2. Starting at the top of the right lower IP trim plate, pull the trim panel rearward in order to release the top retainer.

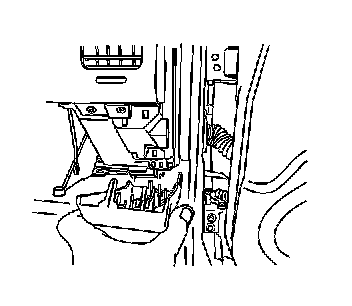

3. Pull the right lower IP trim plate in the middle rearward in order to release the middle retainer.

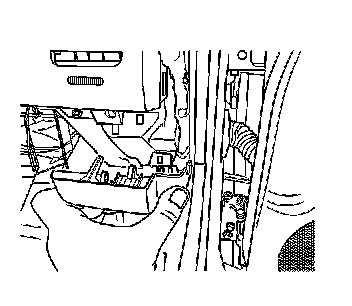

4. Pull the bottom of the right lower IP trim plate straight out in order to release the final retainer.




5. Remove the right lower IP trim plate from the instrument panel.

Installation Procedure




1. Position the right lower IP trim plate retainers to the slots in the IP lower trim panel.




2. Install the right lower IP trim plate starting at the bottom. Press the panel straight in and work upward, pressing in the retainers until fully seated.
3. Close the IP compartment door.
