Scan Tool Data List - Instrument Panel Cluster (IPC)
Scan Tool Data List - Instrument Panel Cluster (IPC)

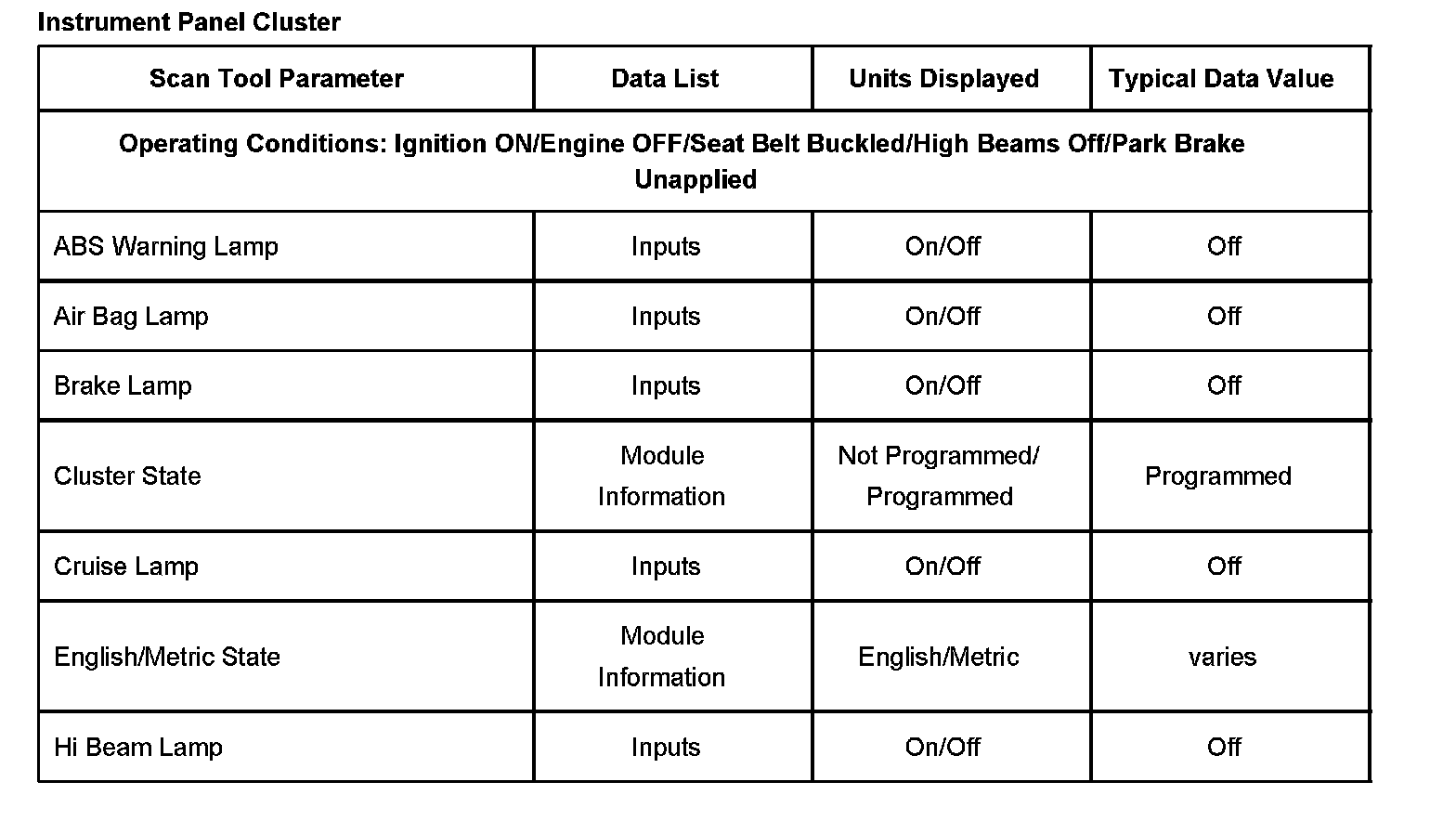

Instrument Panel Cluster Part 1:

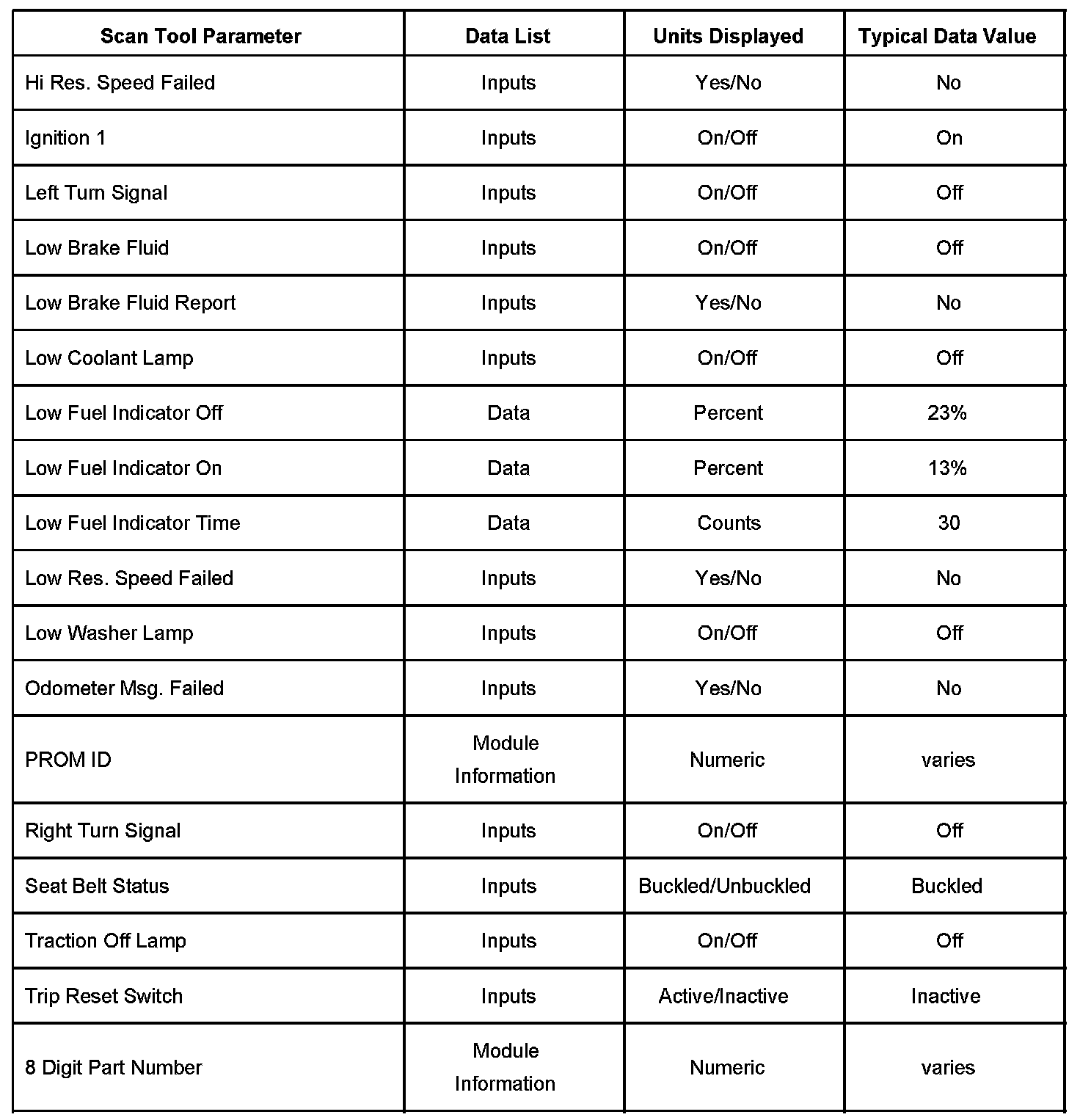

Instrument Panel Cluster Part 2:
