Infl Rst Steering Wheel Module Replacement

REMOVAL PROCEDURE
1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3.

CAUTION:
- A deployed dual stage inflator module will look the same whether one or both stages were used. Always assume a deployed dual stage inflator module has an active stage 2. Improper handling or servicing can activate the inflator module and cause personal injury.
- Refer to SIR Caution in Service Precautions.
- Refer to SIR Inflator Module Handling and Storage Caution in Service Precautions.

2. If equipped with steering column tilt, adjust the steering wheel to the lowest position.

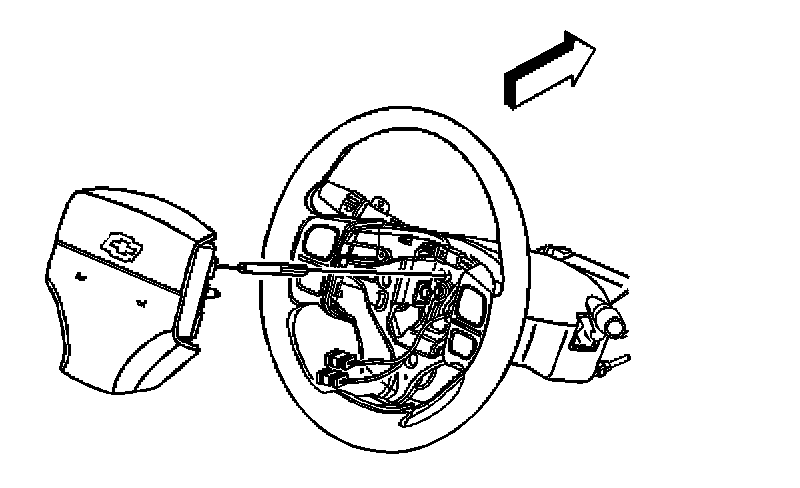

3. The back side of the steering wheel has 3 openings for access to the driver supplemental inflatable restraint (SIR) module retainers. Turn the steering wheel until one of the openings is accessible straight above the steering column.
4. Insert a flat-bladed tool into the opening. Twist the tool to release the module mounting post from the retainer.
5. Repeat the last two steps for the remaining openings.

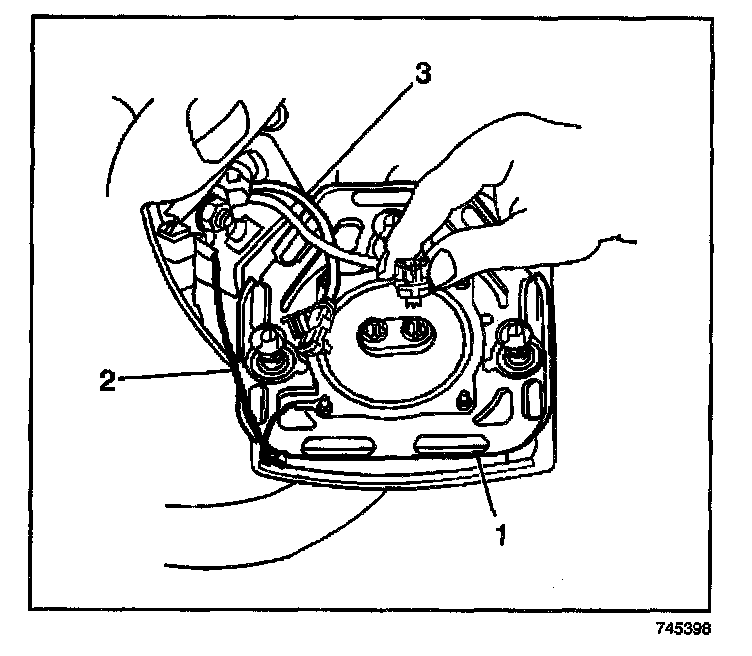

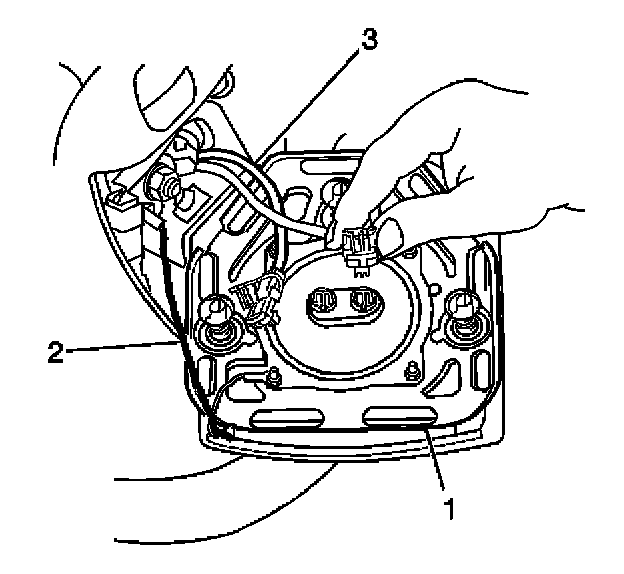

6. Pull the module (1) gently away from the steering wheel.
7. Remove the connector position assurance (CPA) from each module electrical connector.
8. Disconnect the yellow SIR coil lead wire connectors from the module.




9. Rotate the horn wire counterclockwise until the wire unlocks from the cam tower post. Remove the horn wire from the steering wheel.
10. Remove the driver SIR module.
11. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping.

INSTALLATION PROCEDURE




1. Position the horn wire into the cam tower post. Rotate the horn wire clockwise until locked.




2. Connect the yellow SIR coil lead wires to the module connectors. Connect pink to pink and gray to gray.
3. Install the CPA to each connector.

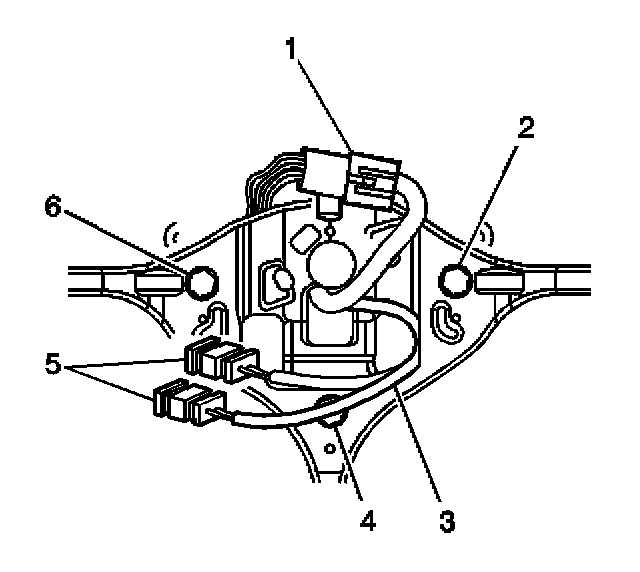

4. Route and secure the wires correctly:
- Secure the black redundant controls connector (1) to the feature at the 12 o'clock position on the steering wheel shroud. For the base steering wheel, the feature is at the 2 o'clock position.
- Route the yellow SIR coil lead wires (3) away from the 3 module mounting holes into the correct opening in the steering wheel insert.
5. Install the 3 mounting posts on the module into the 3 holes (2,4,6) in the steering wheel:
- Set the left and right sides of the module evenly to the steering wheel.
- Gently press evenly on both sides and the bottom of the module until a clicking sound is heard.

IMPORTANT: Do not force the module into place.

6. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3.
