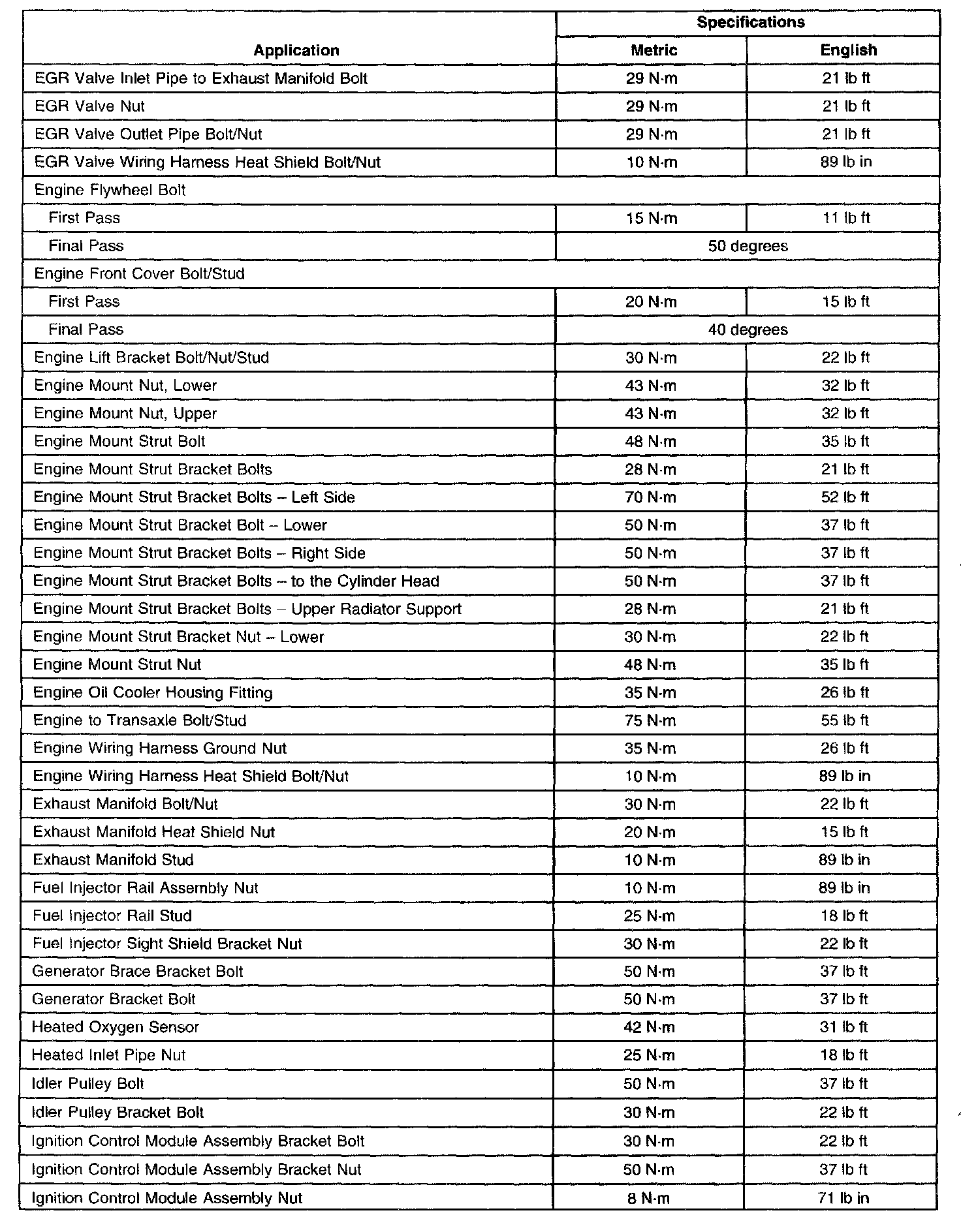

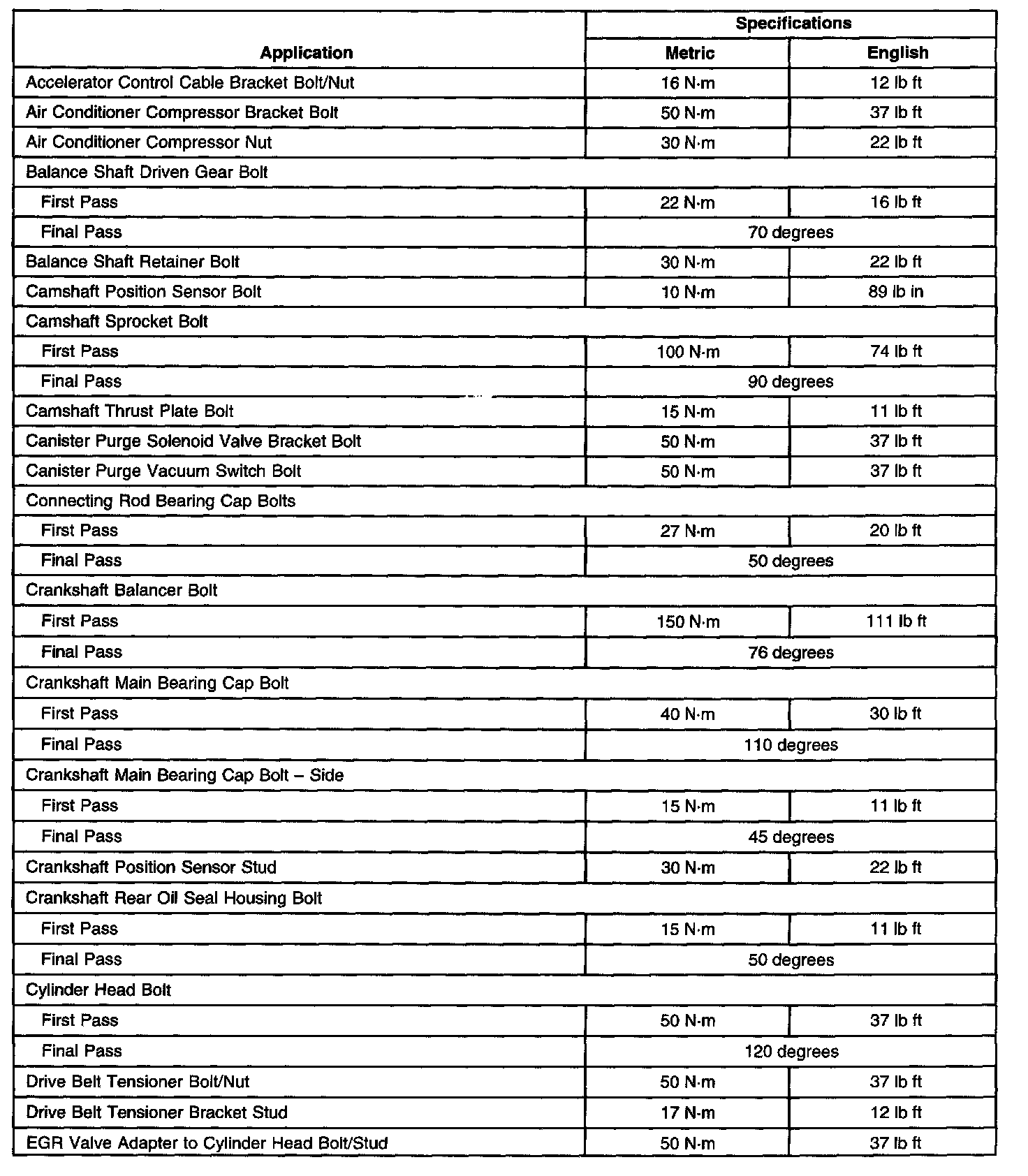

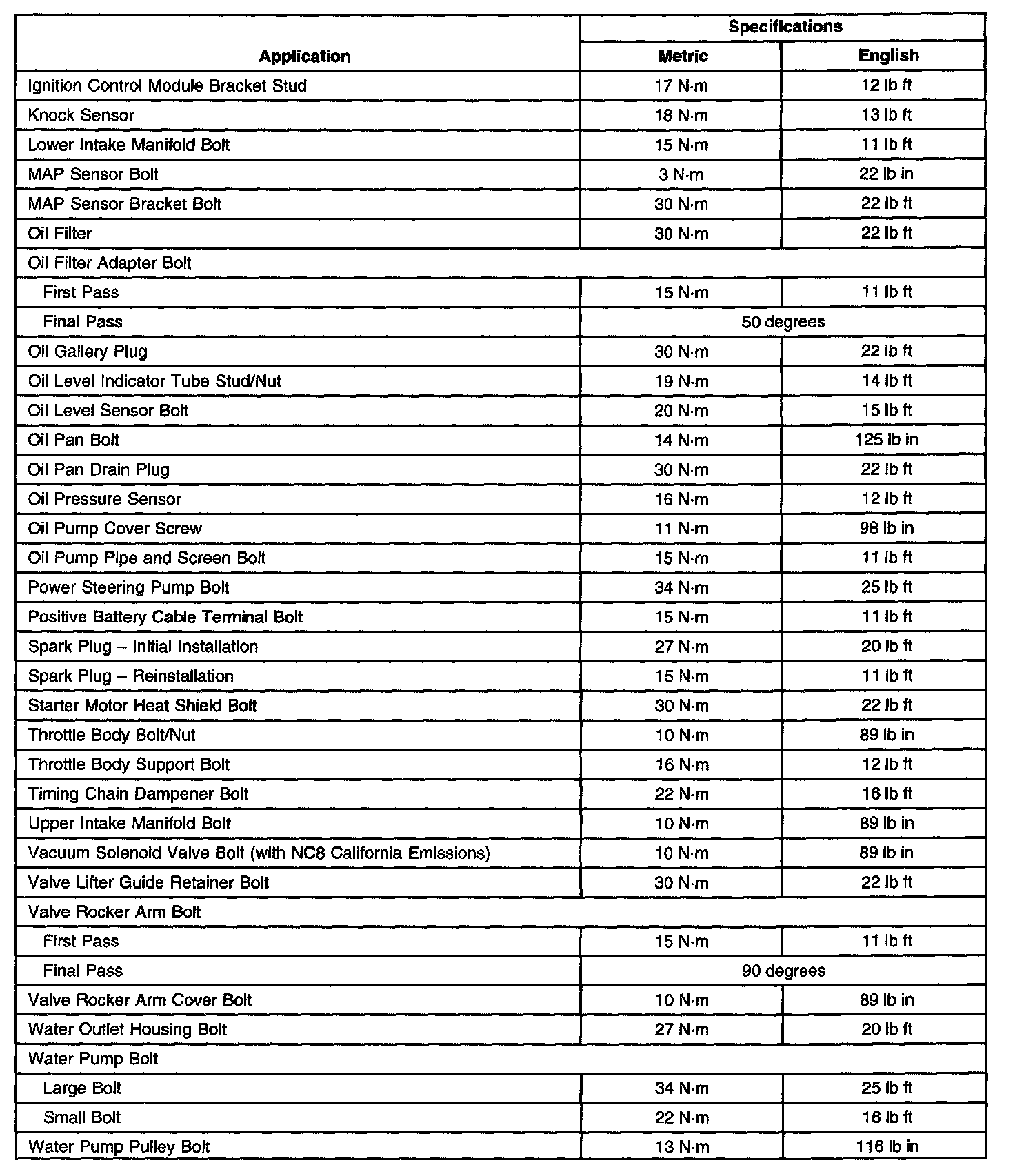

Fastener Tightening Specifications

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

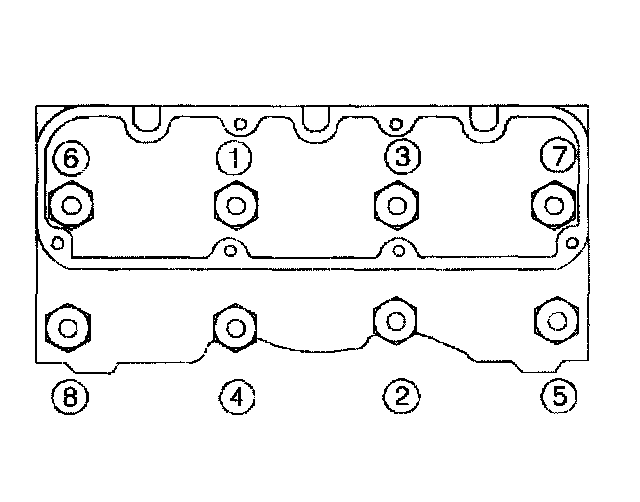

Cylinder Head Tightening Sequence
Install the new cylinder head bolts




Lower Intake Manifold Tightening Sequence




Upper Intake Manifold Tightening Sequence
