Home >> Chevrolet >> 2003 >> Monte Carlo V6-3.8L VIN K >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Diagrams >> Connector Views >> Fuse Block-Seo

Fuse Block-Seo

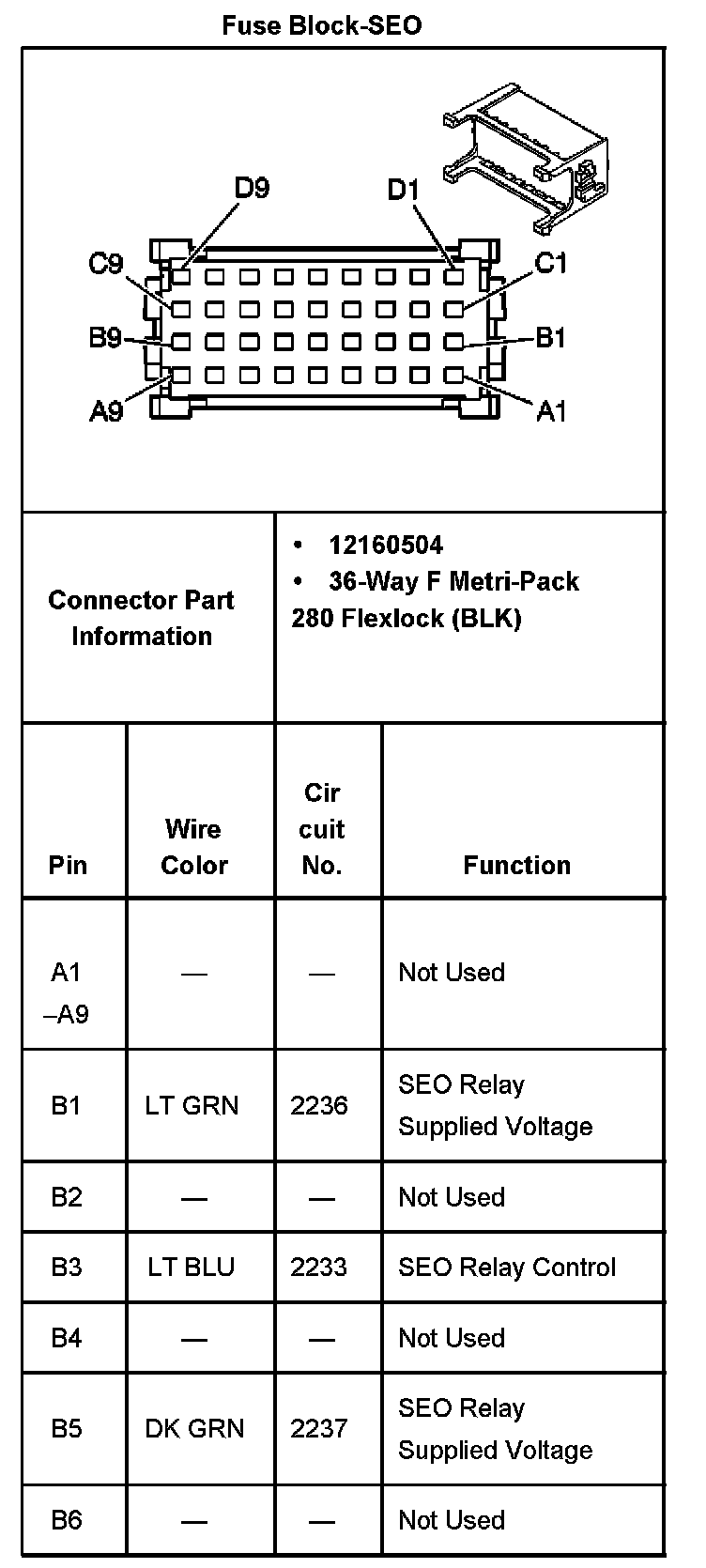

Fuse Block-SEO Part 1:

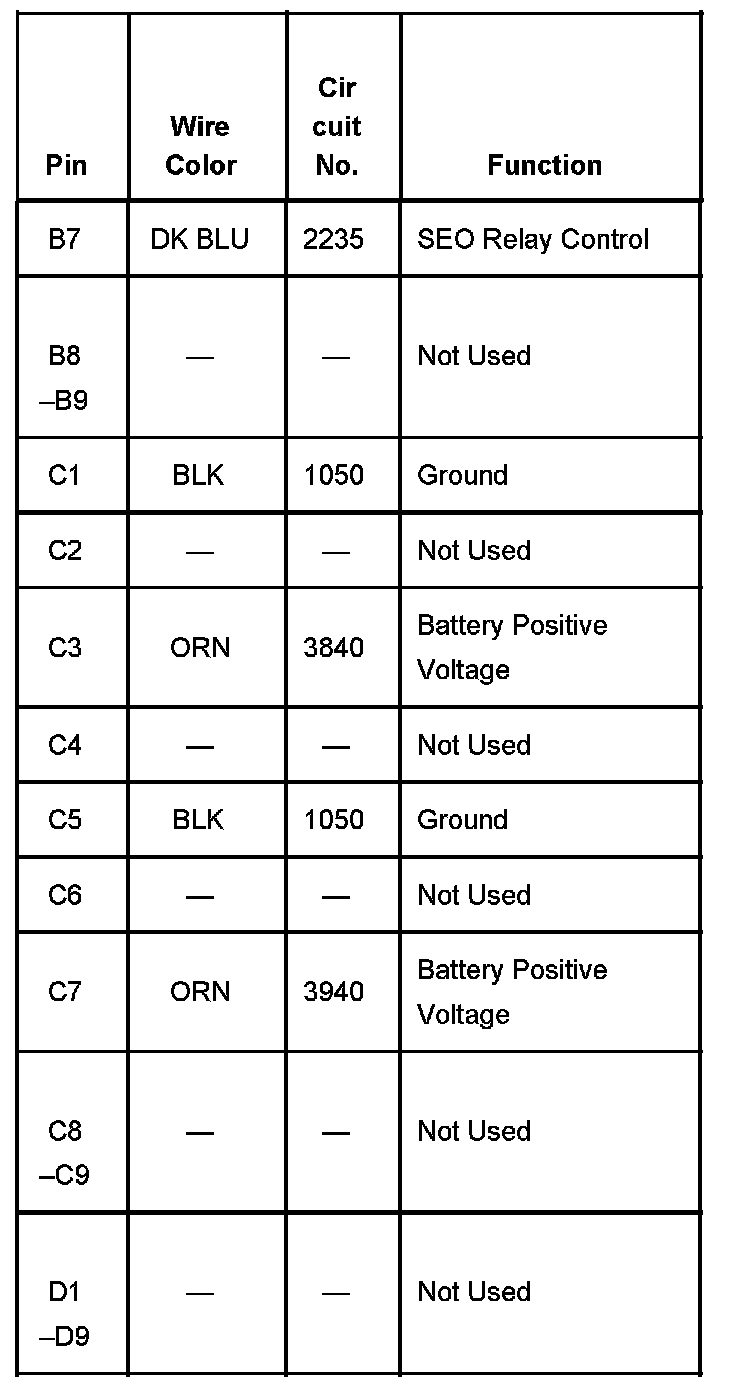

Fuse Block-SEO Part 2:
