Junction Block-Underhood

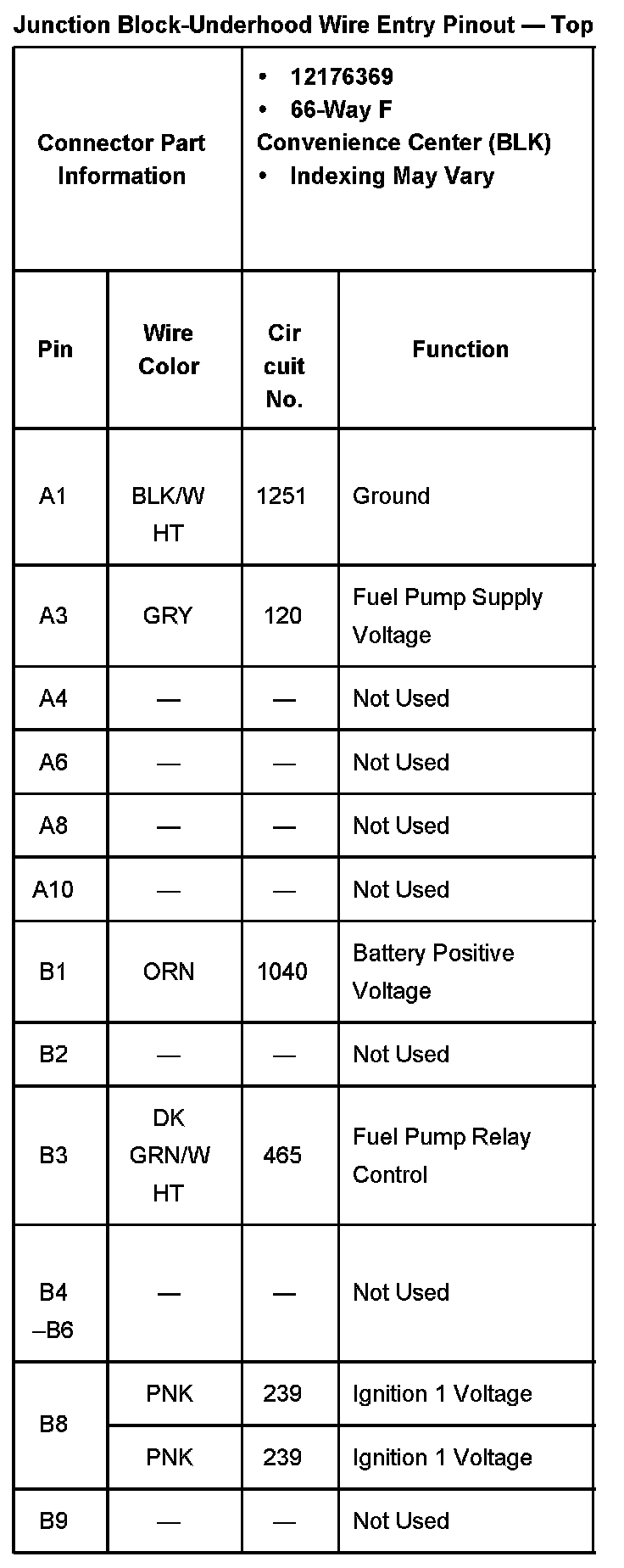

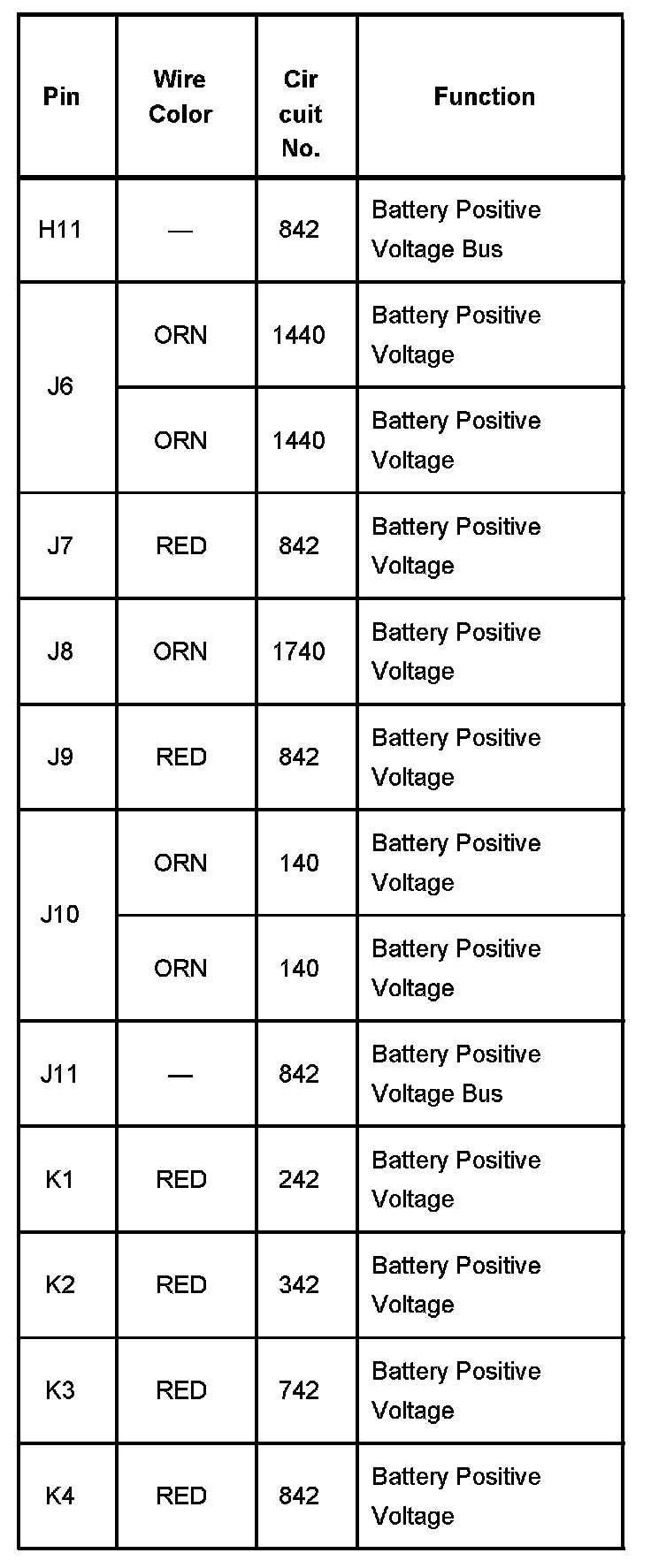

Junction Block-Underhood Wire Entry Pinout - Top Part 1:

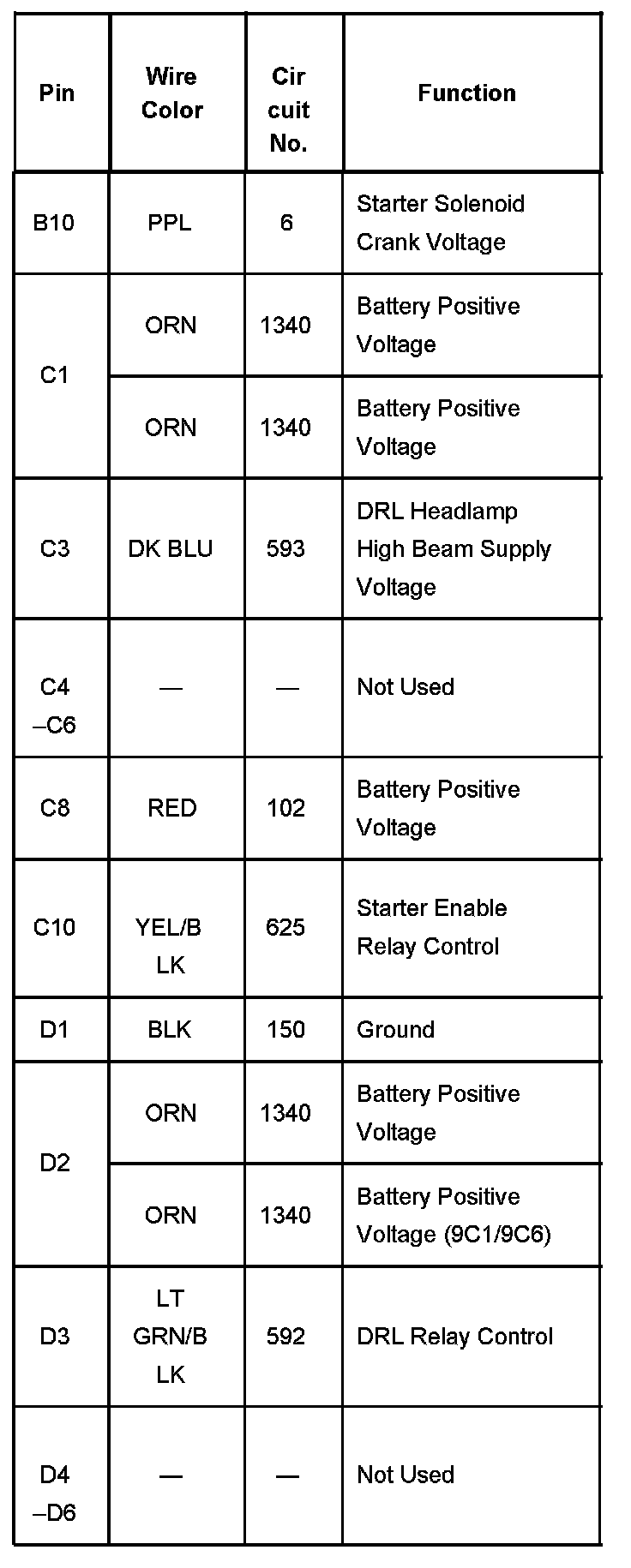

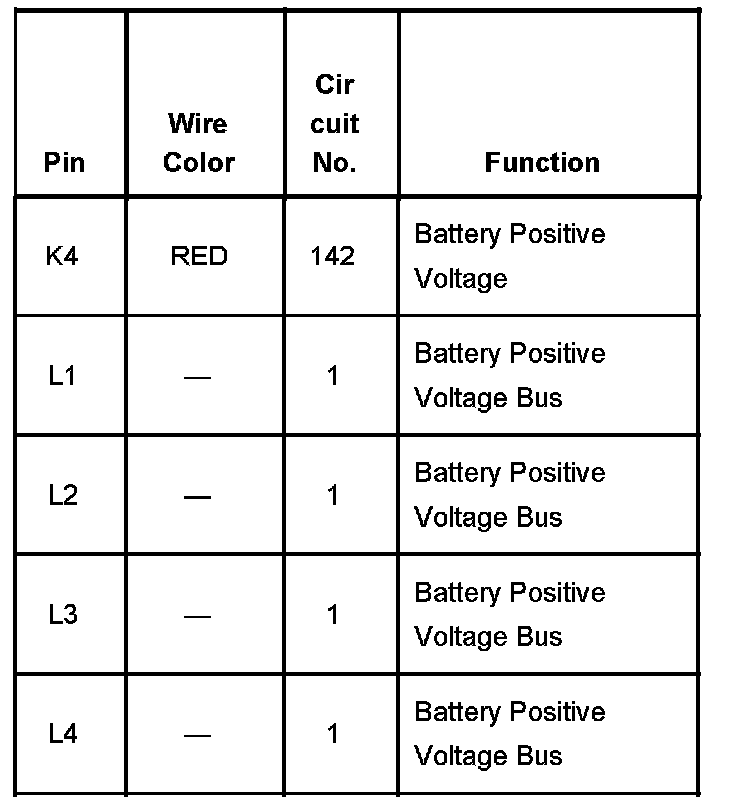

Junction Block-Underhood Wire Entry Pinout - Top Part 2:

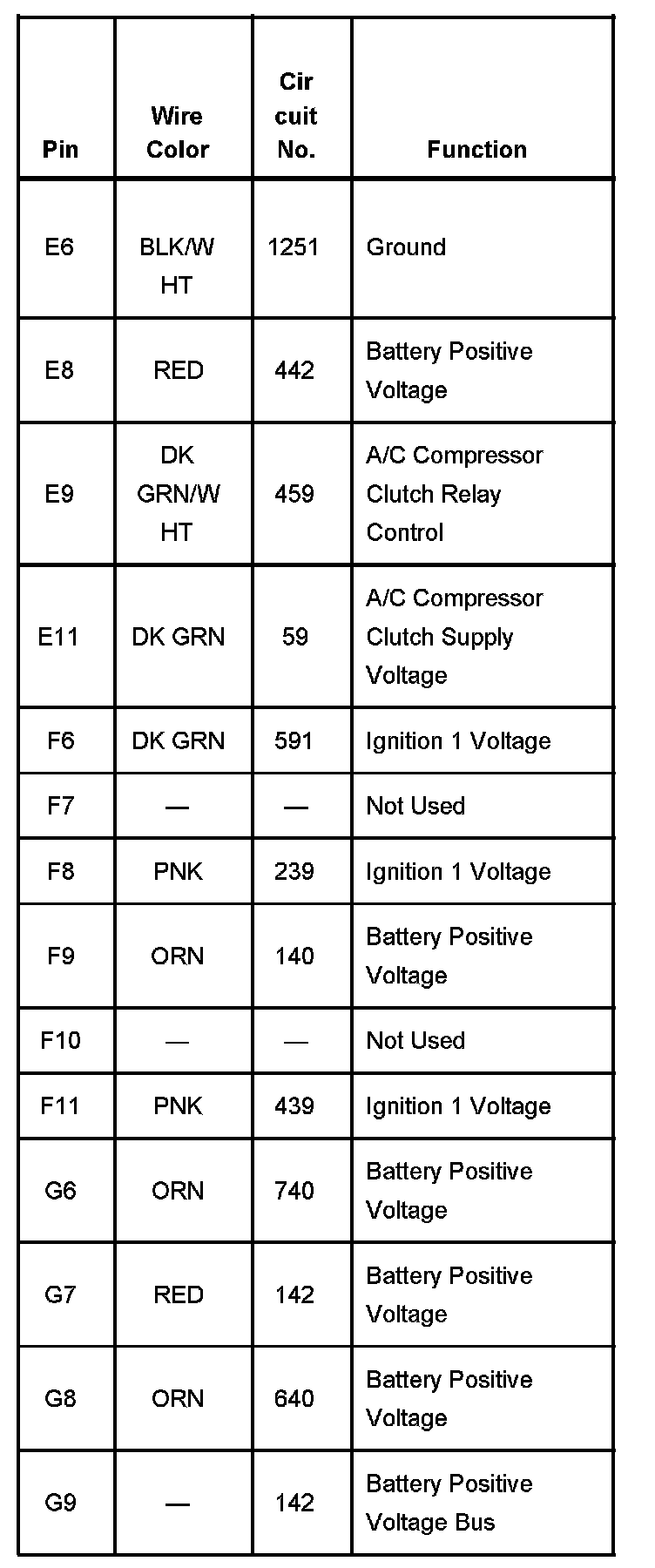

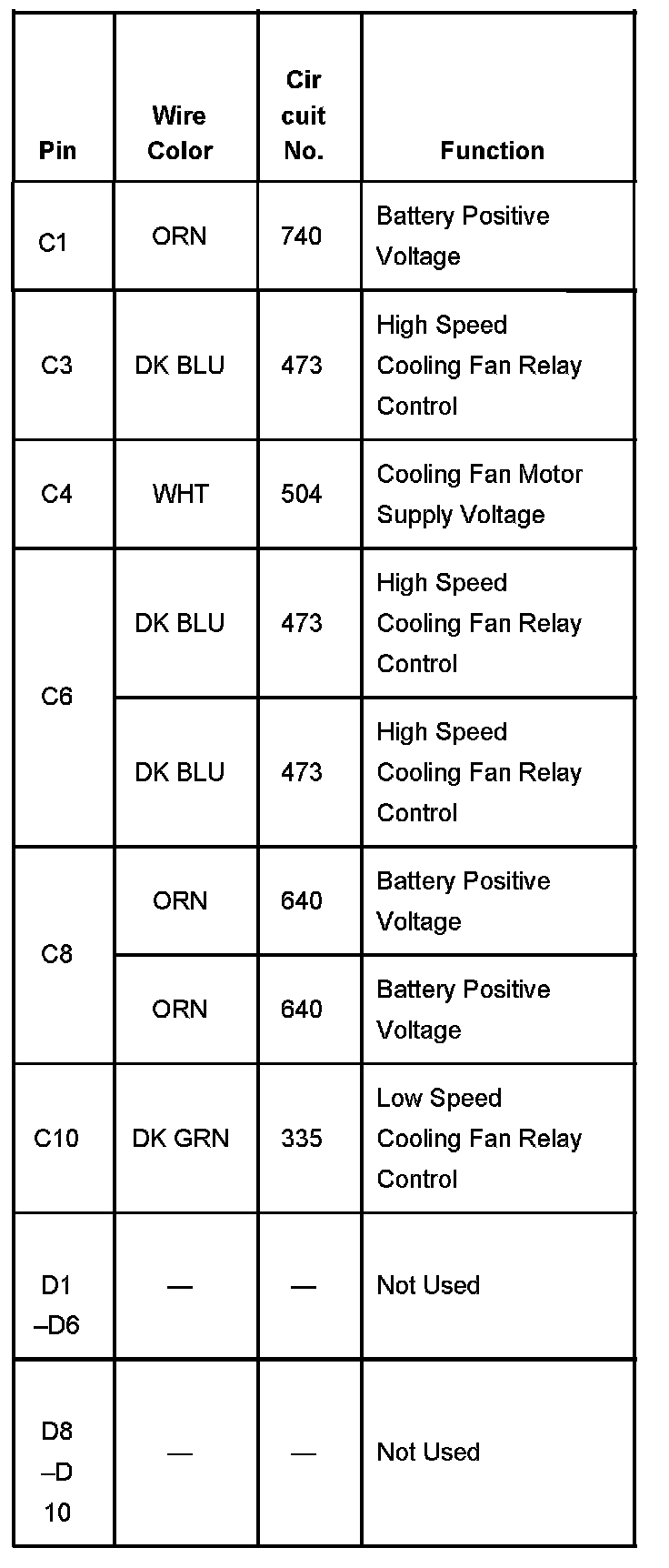

Junction Block-Underhood Wire Entry Pinout - Top Part 3:

Junction Block-Underhood Wire Entry Pinout - Top Part 4:

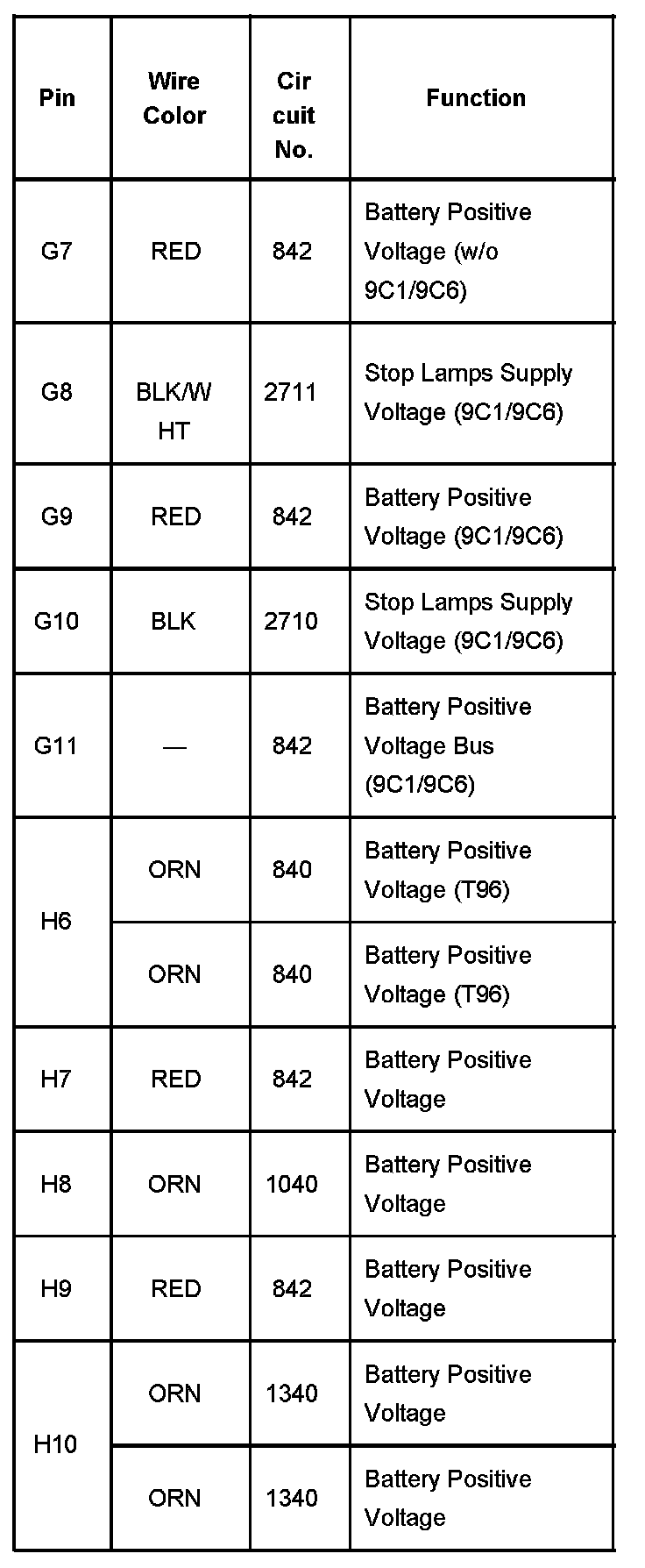

Junction Block-Underhood Wire Entry Pinout - Top Part 5:

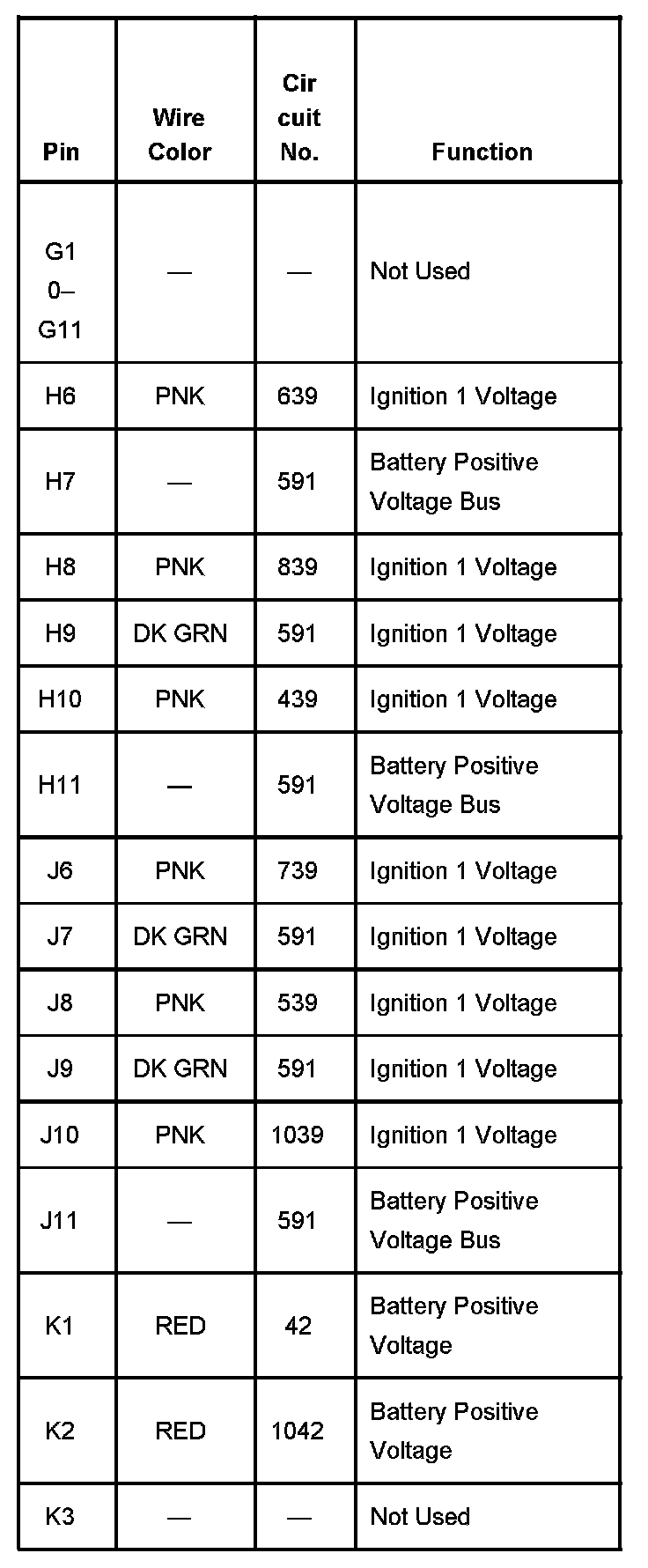

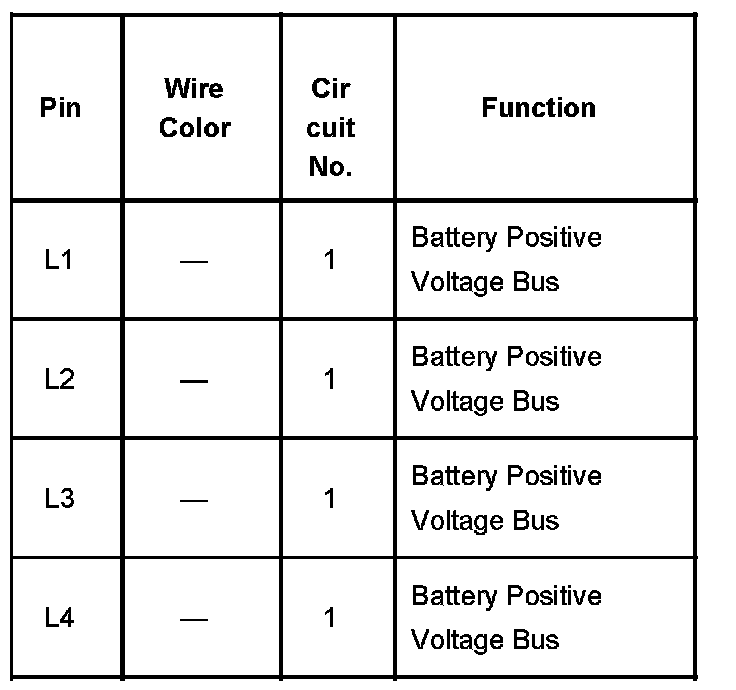

Junction Block-Underhood Wire Entry Pinout - Top Part 6:

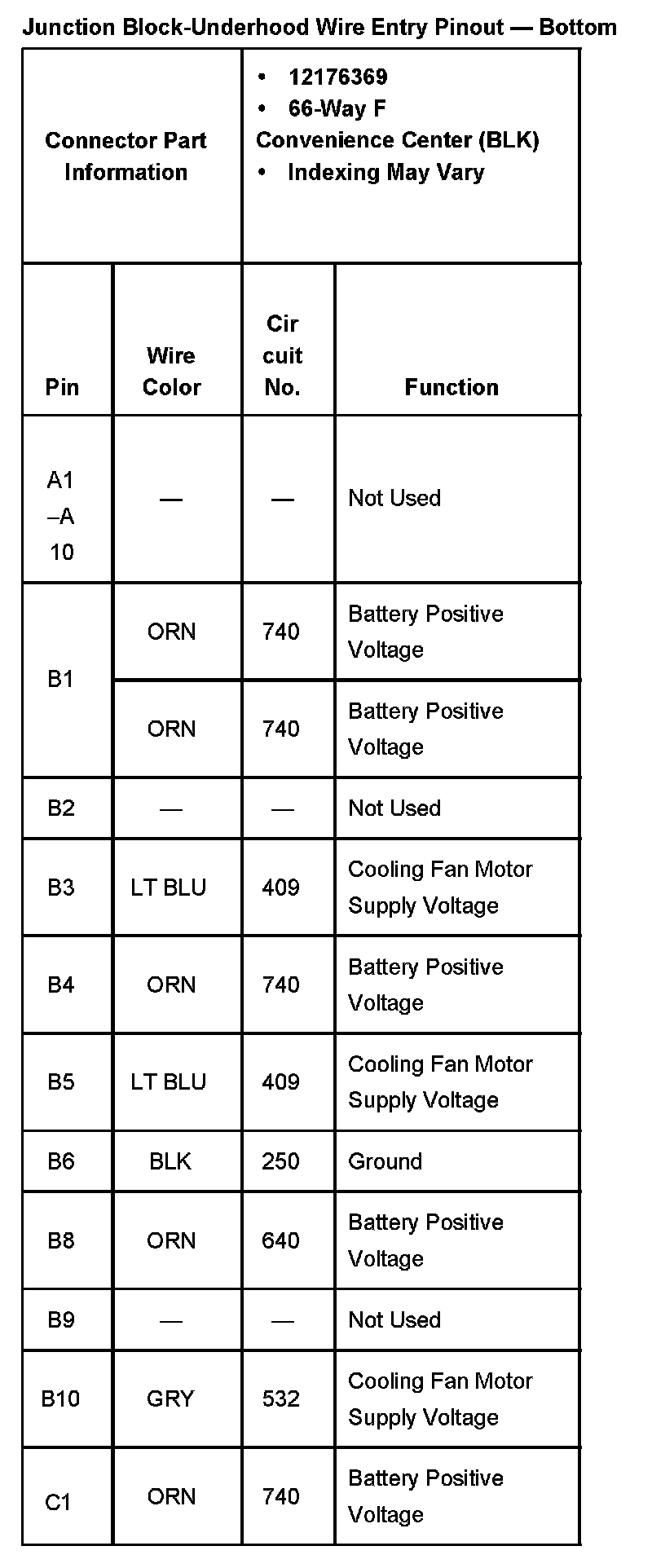

Junction Block-Underhood Wire Entry Pinout - Bottom Part 1:

Junction Block-Underhood Wire Entry Pinout - Bottom Part 2:

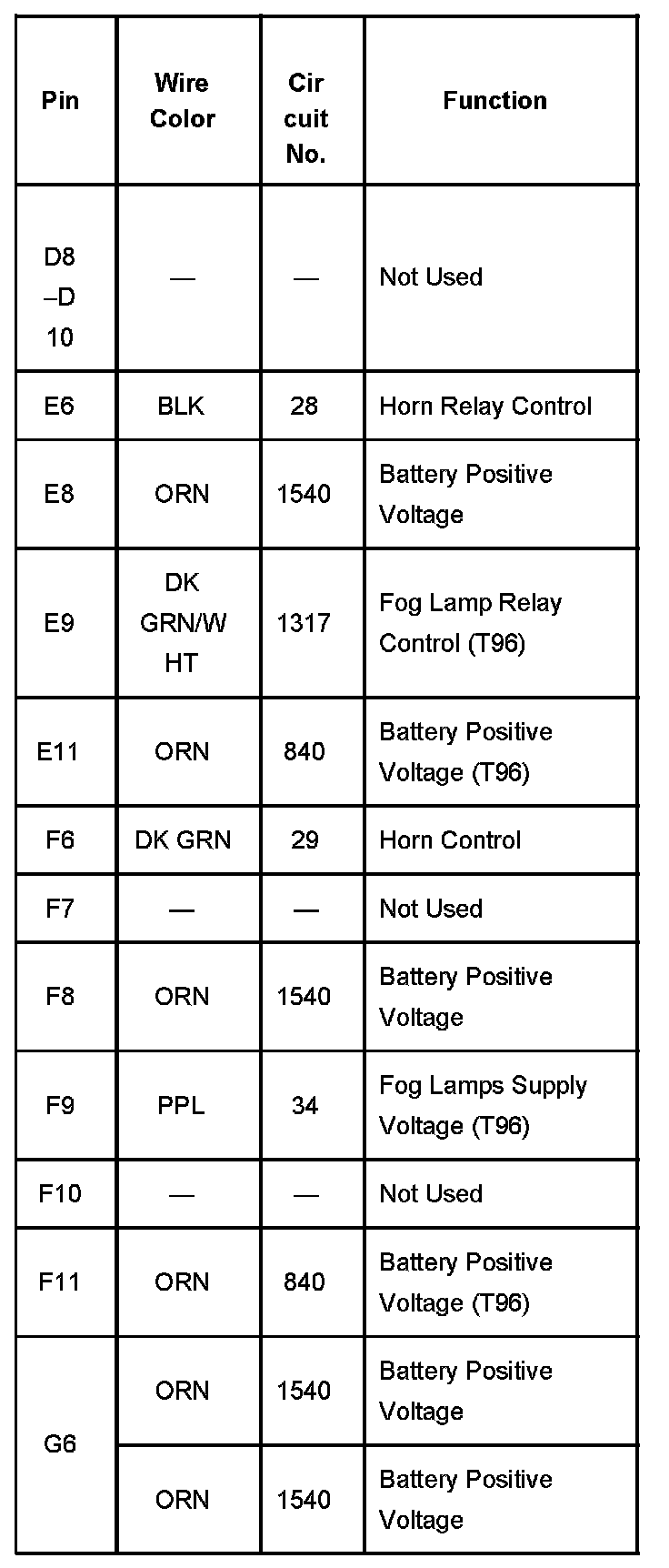

Junction Block-Underhood Wire Entry Pinout - Bottom Part 3:

Junction Block-Underhood Wire Entry Pinout - Bottom Part 4:

Junction Block-Underhood Wire Entry Pinout - Bottom Part 5:
