I/P Electrical Center or Junction Block Replacement - Right
I/P ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT - RIGHTREMOVAL PROCEDURE

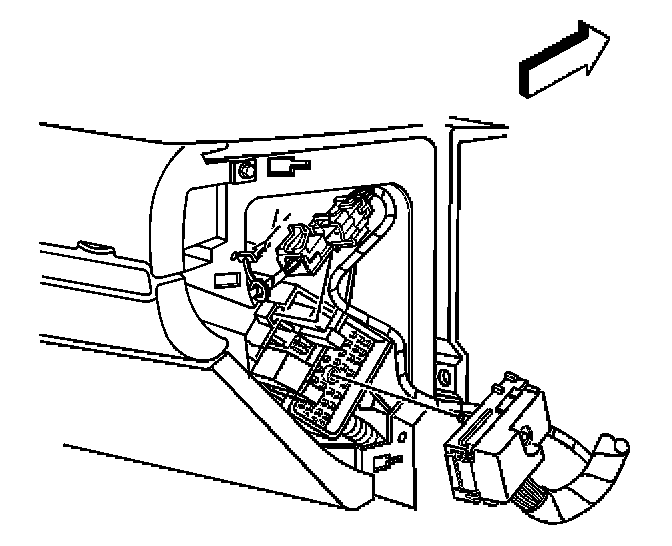

1. Disconnect the negative battery cable.
2. Remove the RH instrument panel (IP) fuse block access opening cover.
3. Disconnect the body wiring harness from the junction block.
4. Open the IP compartment. Access the junction block bolt through the open IP compartment. Remove the junction block bolt.
5. Disengage the junction block tabs from the passenger knee bolster. Pull the junction block away from the IP.

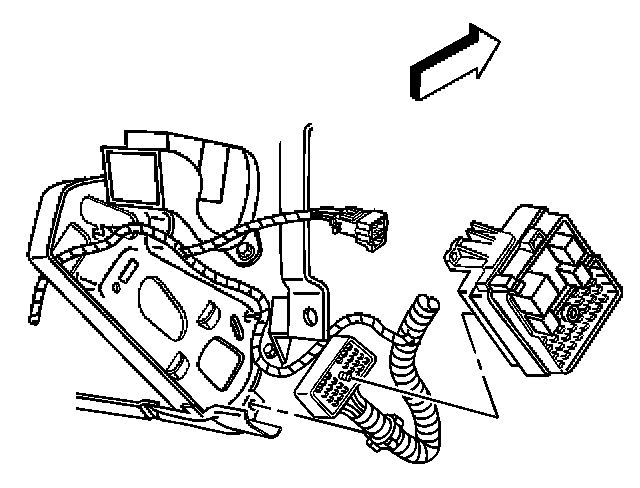

6. Disconnect the wiring harnesses from the junction block.
7. Remove the junction block.
INSTALLATION PROCEDURE

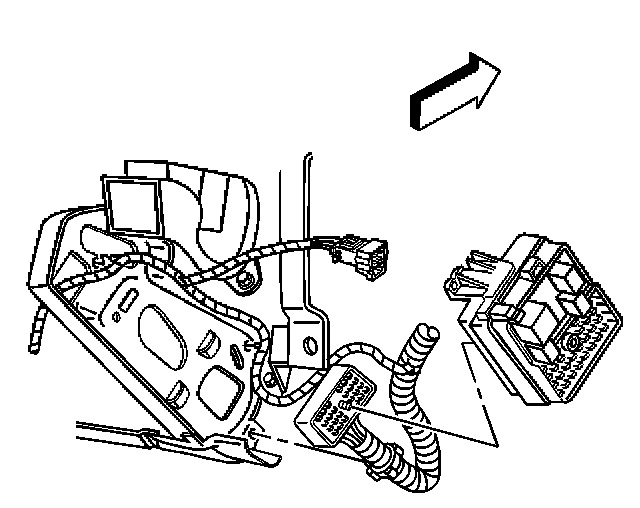

1. Connect the body wiring harnesses to the junction block.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the body wiring harness connector bolts to 7 N.m (62 lb in).
2. Install the junction block tabs to the passenger knee bolster.
3. Install the junction block bolt.
Tighten
Tighten the junction block bolt to 10 N.m (89 lb in).
4. Close the IP compartment.
5. Connect the body wiring harness to the junction block.
6. Install the RH IP fuse block access opening cover.
7. Connect the negative battery cable.
