Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2003
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
IP Fuse Block Details
IP Fuse Block Details

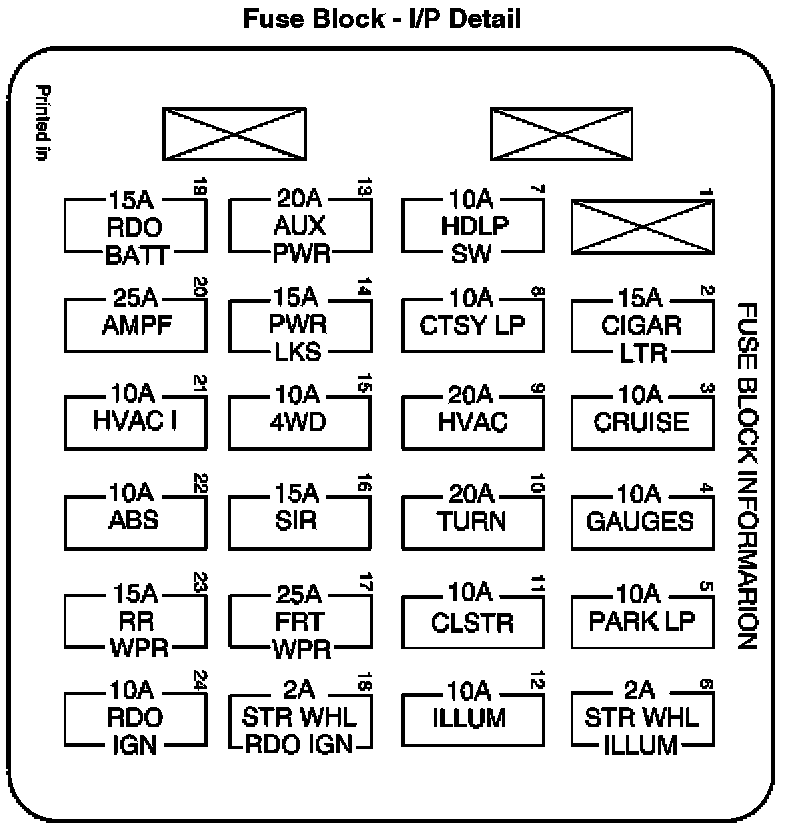

Location View:

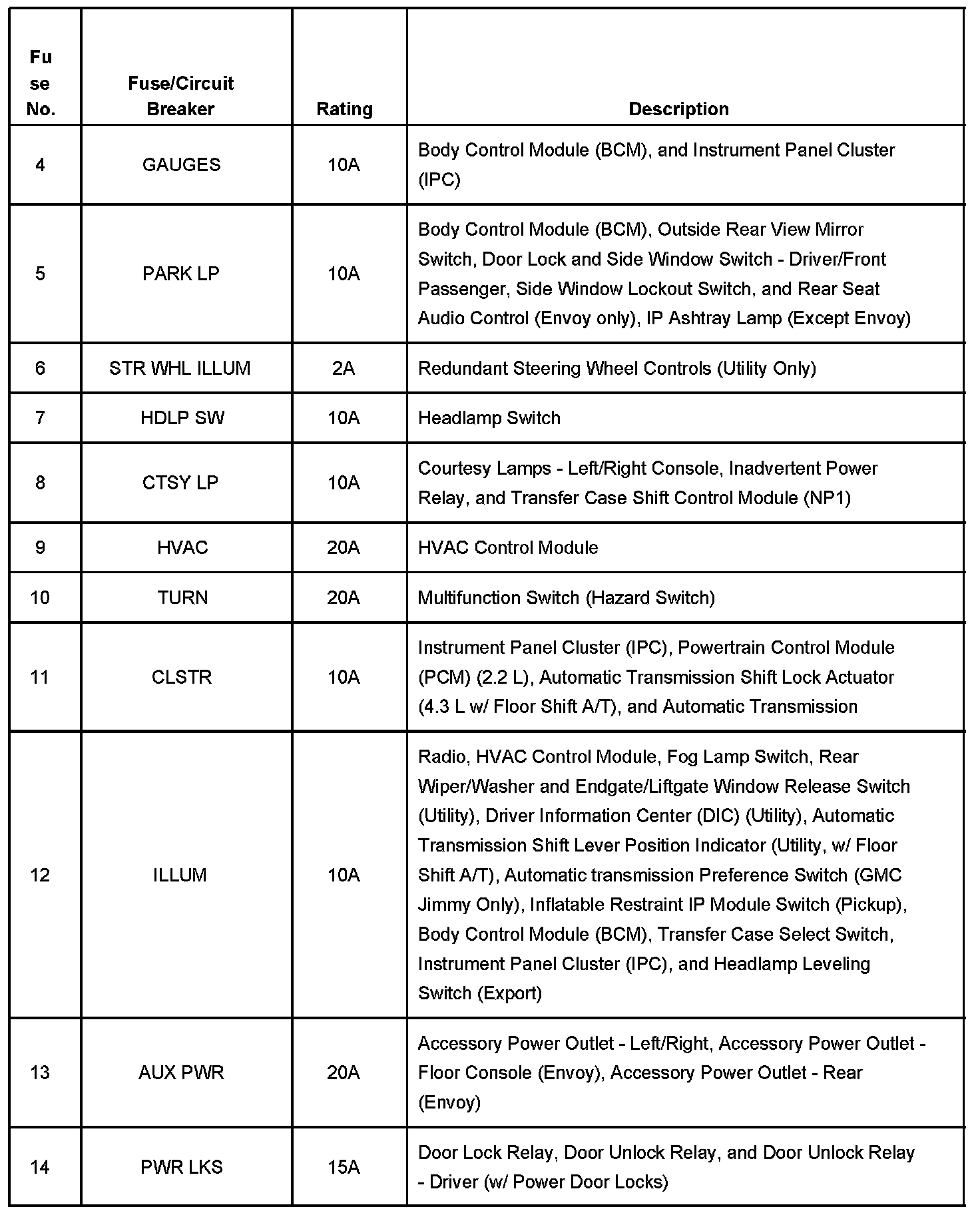

Application Table Part 1:
Application Table Part 2:
Application Table Part 3:
