Fender Extension Bracket Replacement - Front

Fender Extension Bracket Replacement - Front

Removal Procedure

1. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
2. Remove the wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front (Service and Repair) .
3. Remove the front fender. Refer to Fender Replacement - Front (Fender Replacement - Front) .

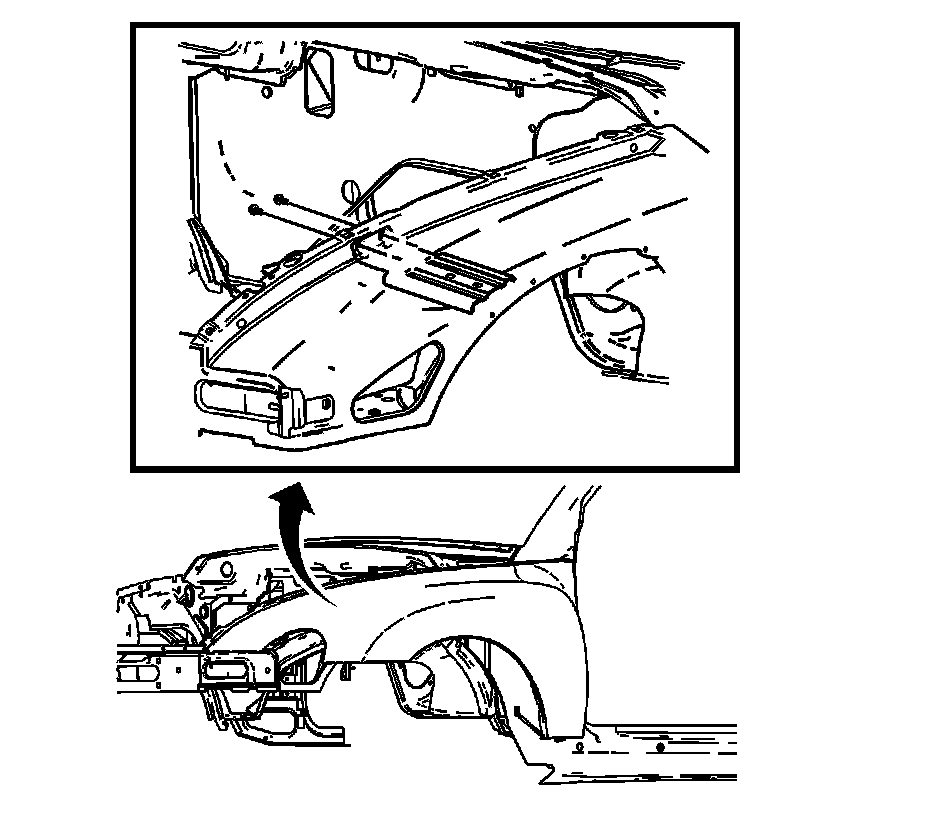

4. Remove the extension bracket fasteners.




5. Remove the extension bracket from the vehicle.



Installation Procedure

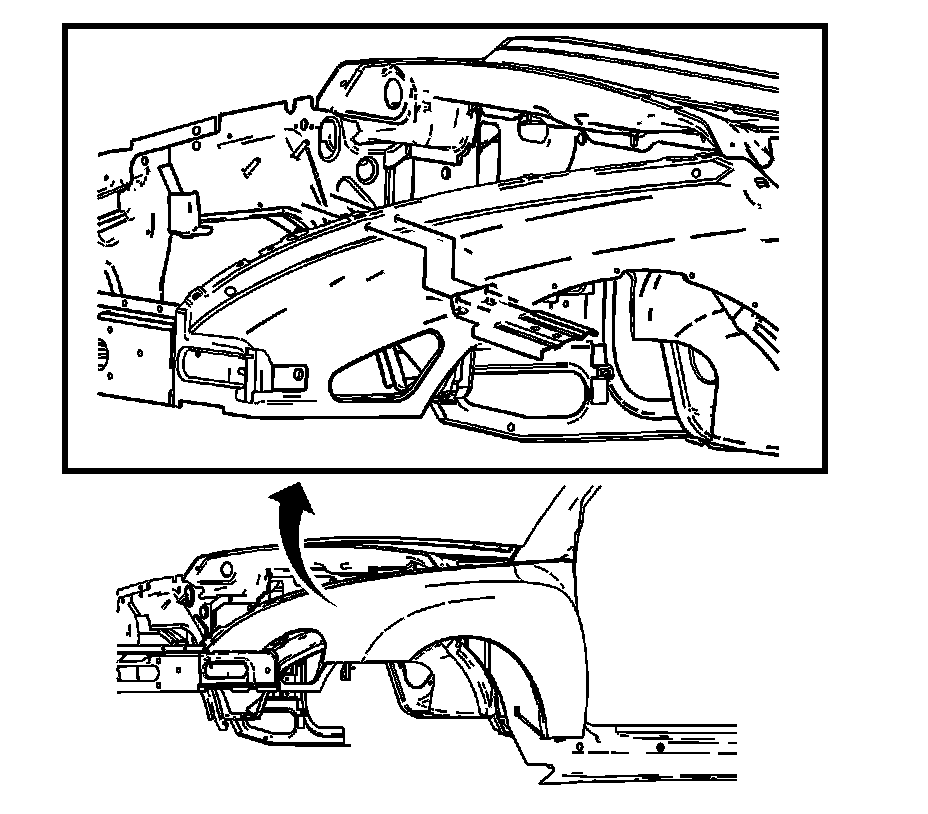

1. Install the extension bracket onto the vehicle.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the extension bracket fasteners.

Tighten the extension bracket fasteners to 10N.m (88 lb in).

3. Install the front fender. Refer to Fender Replacement - Front (Fender Replacement - Front) .
4. Install wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front (Service and Repair) .
5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
