Driver Seat Base (Without RPO Code AAB) Level Components

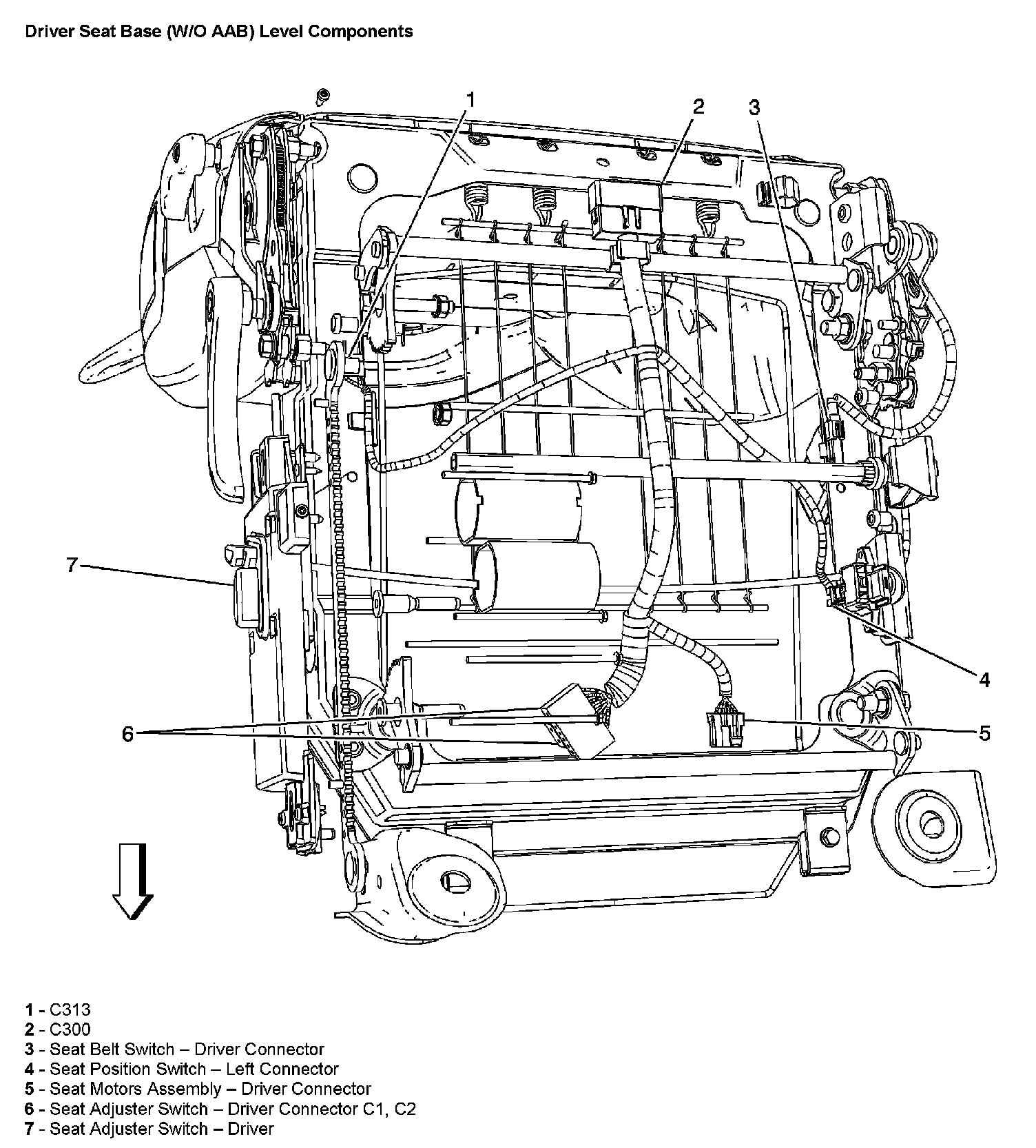

Driver Seat Base (Without RPO Code AAB) Level Components:



Driver Seat UP Level (With RPO Code AAB) Components (Part 1):

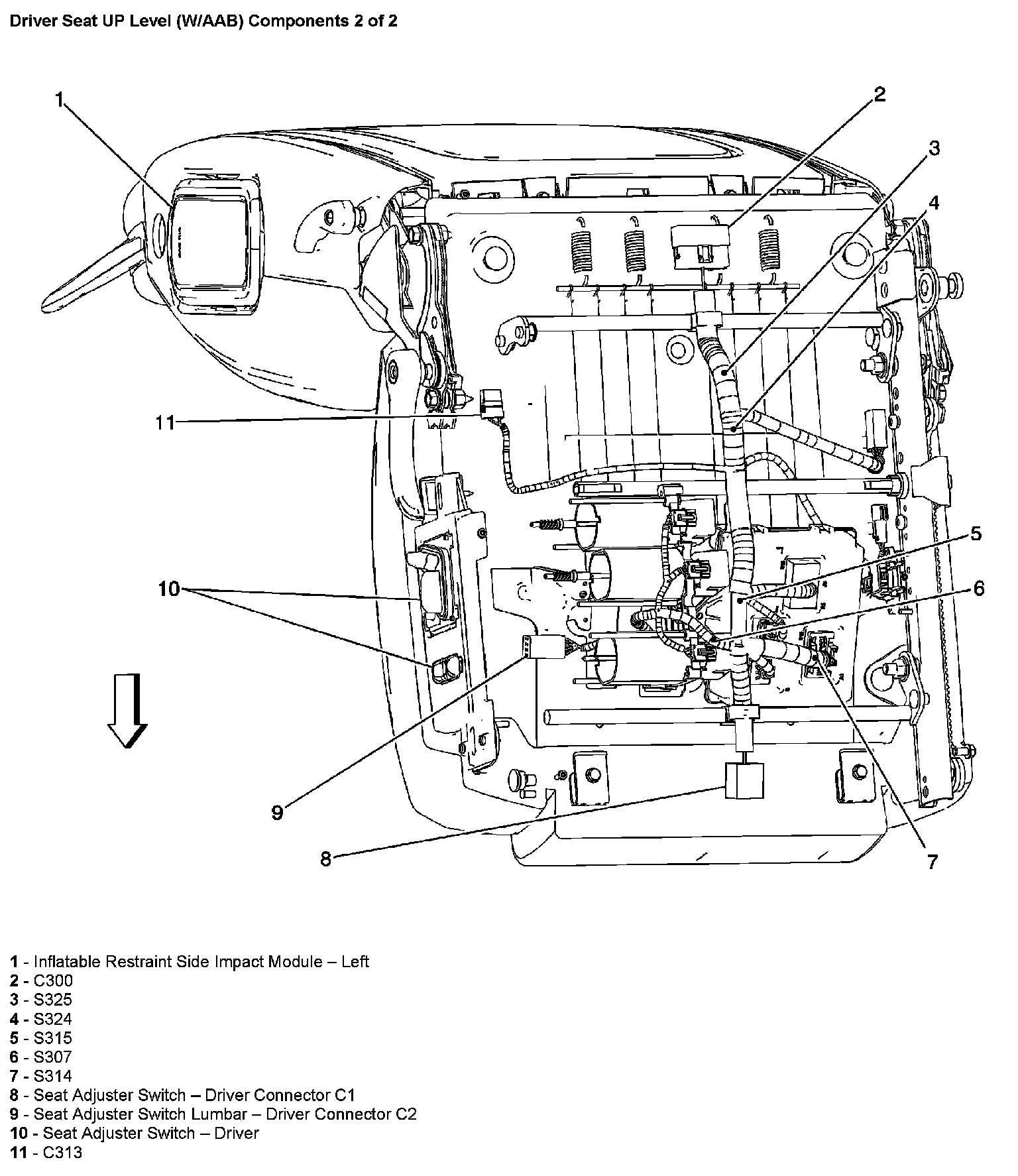

Driver Seat UP Level (With RPO Code AAB) Components (Part 2):

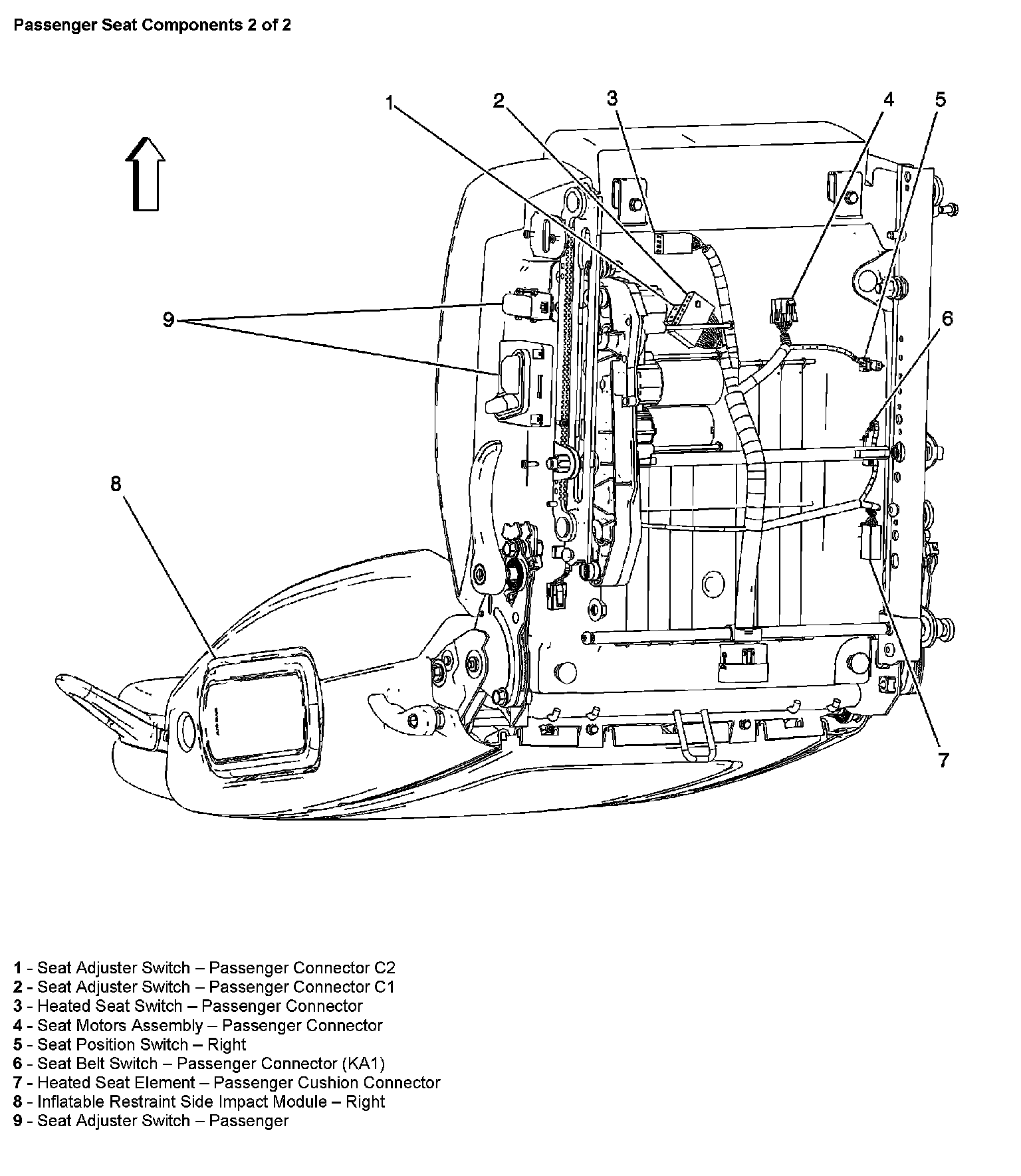

Passenger Seat Components (Part 2):
