Home >> Chevrolet >> 2003 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Diagrams >> Components

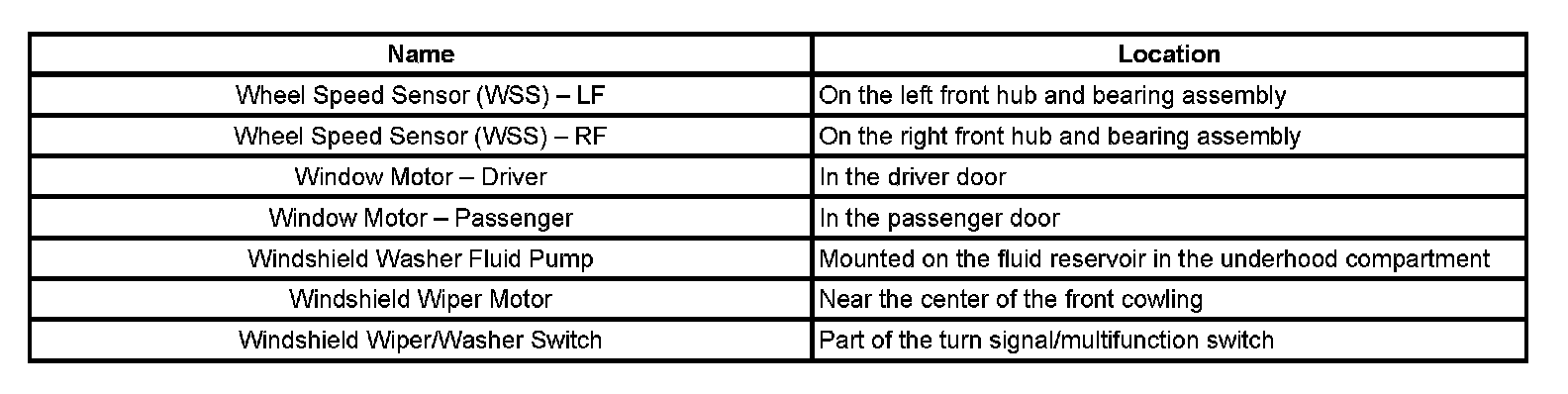

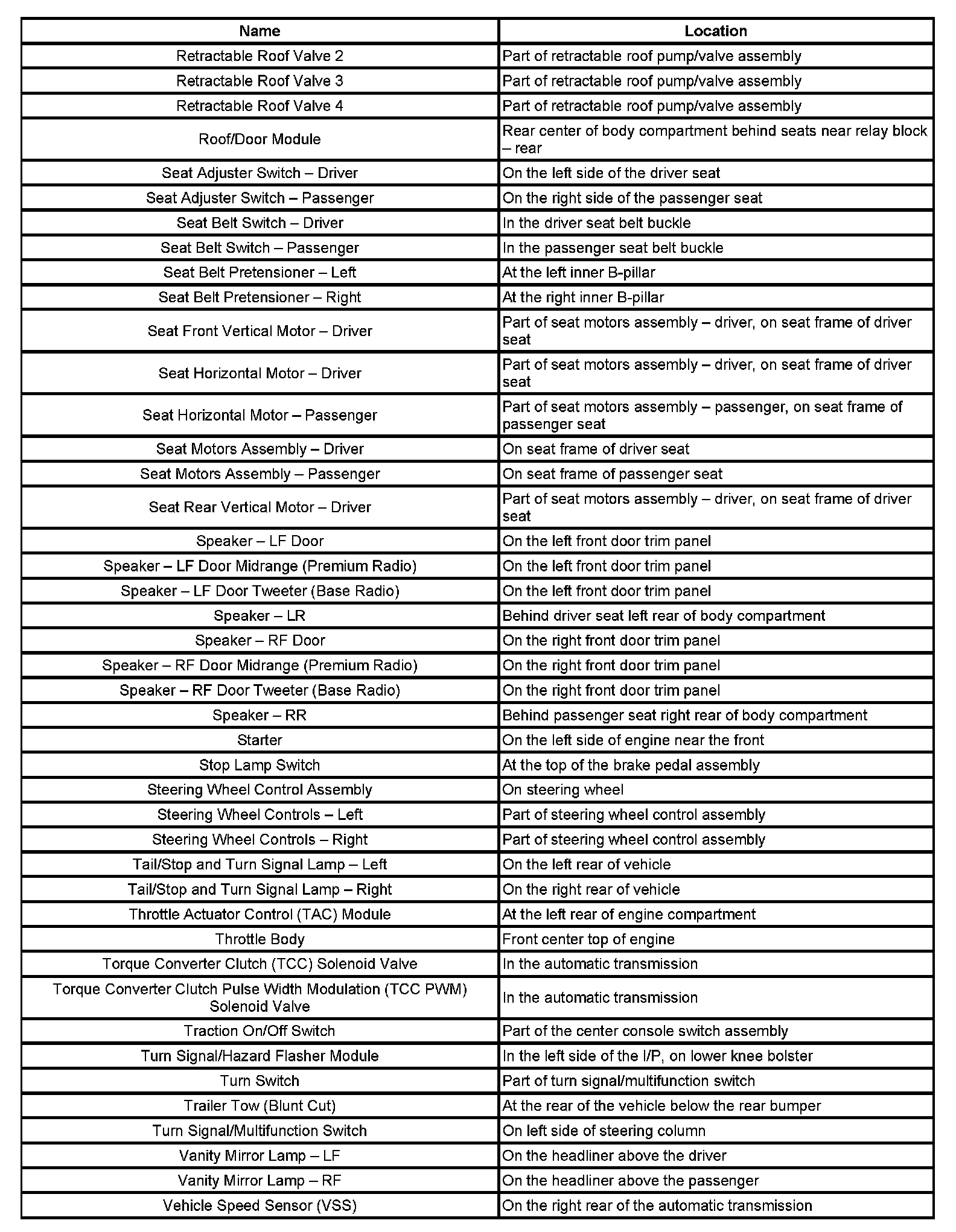

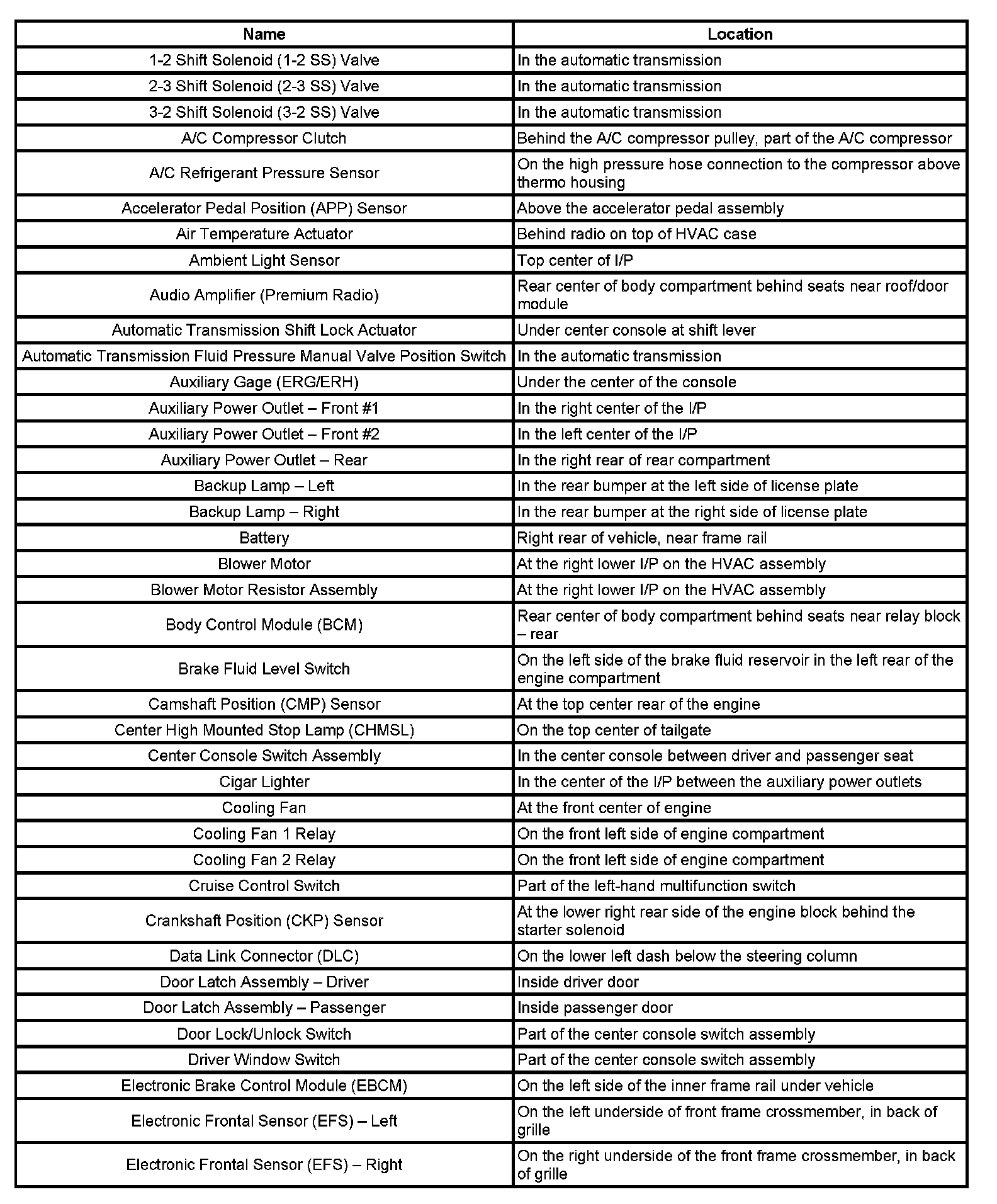

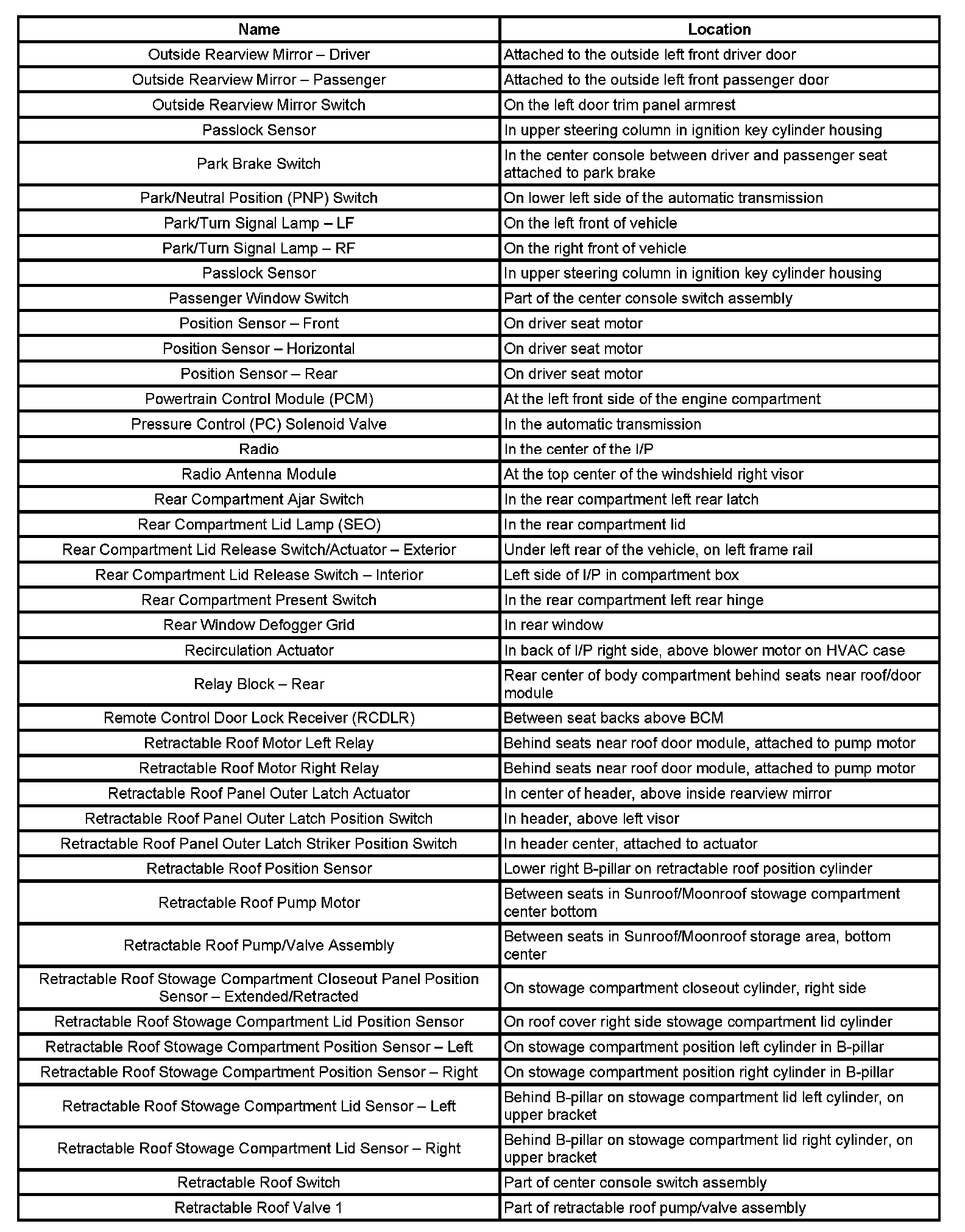

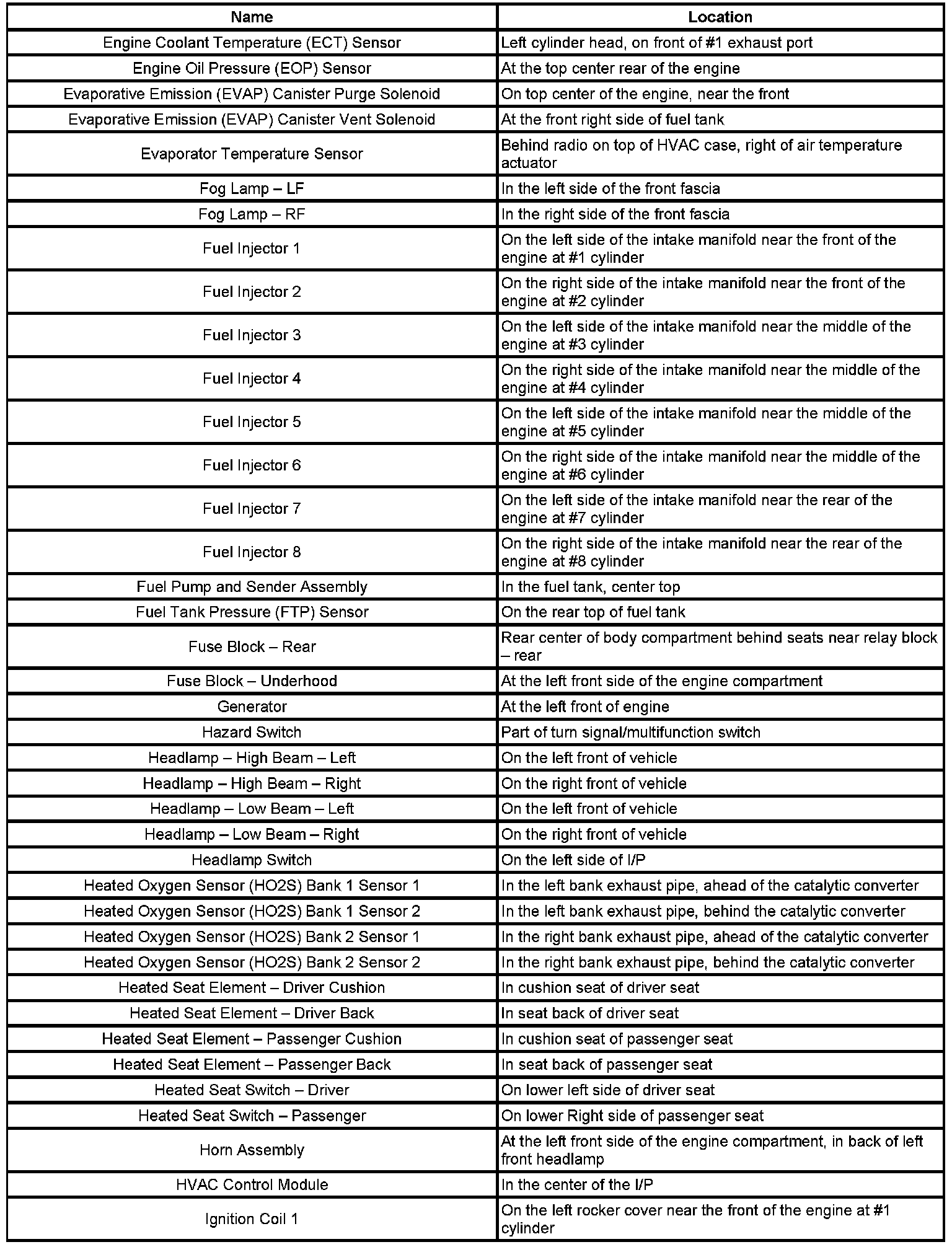

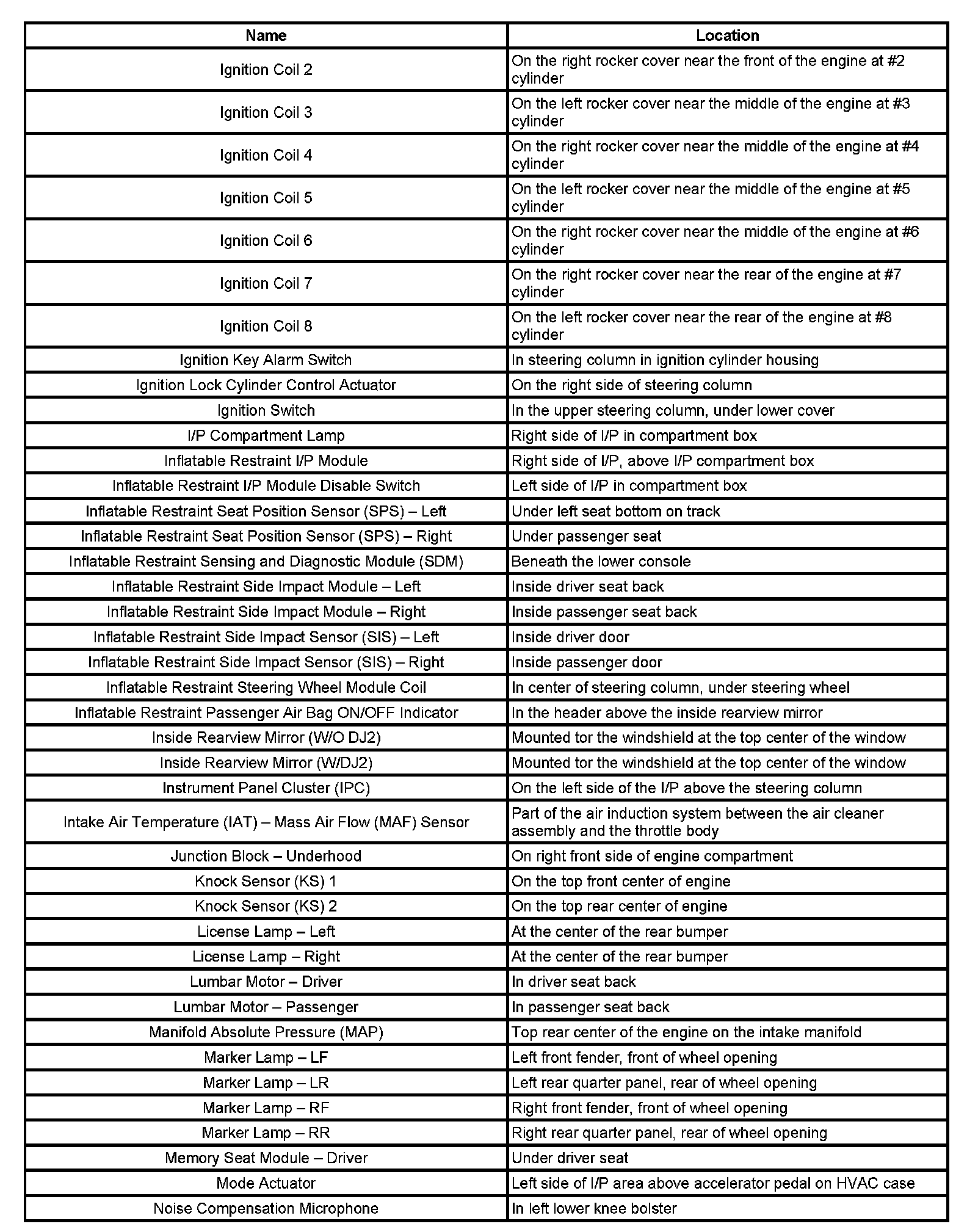

Components

1-2 Sh - El:

En - Ig:

Ig - No:

Ou - Re:

Re - Ve:

Wh - Wi:
