Auxiliary Power Outlet
Auxiliary Power Outlet

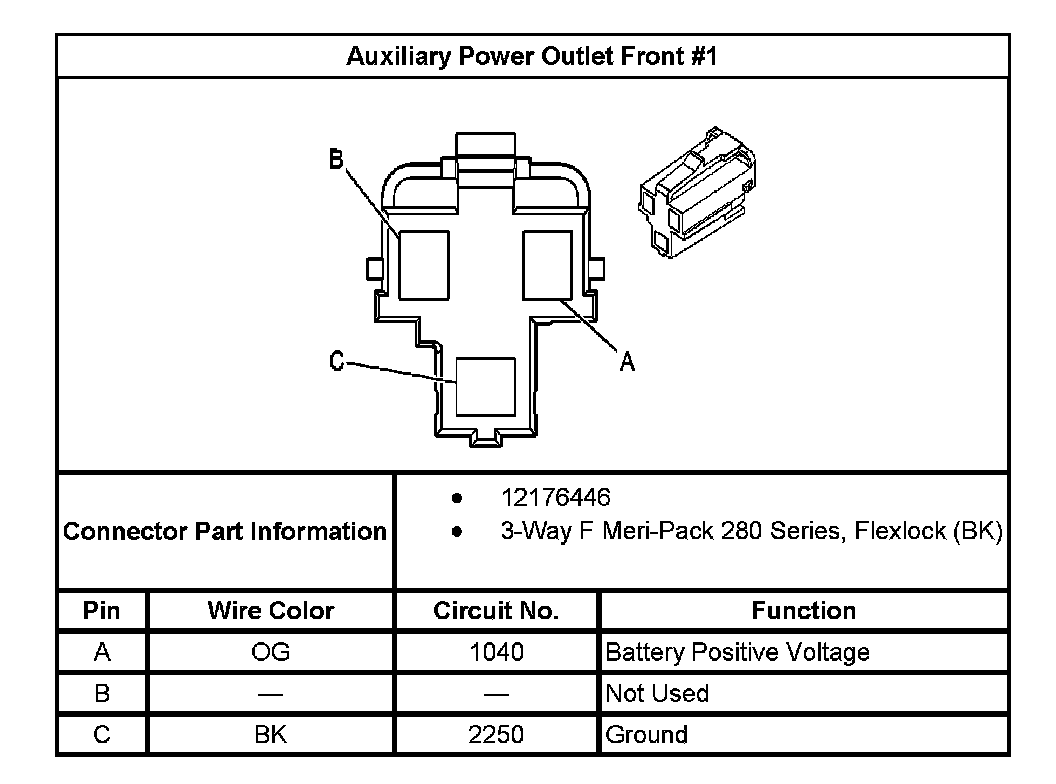

Auxiliary Power Outlet Front #1:

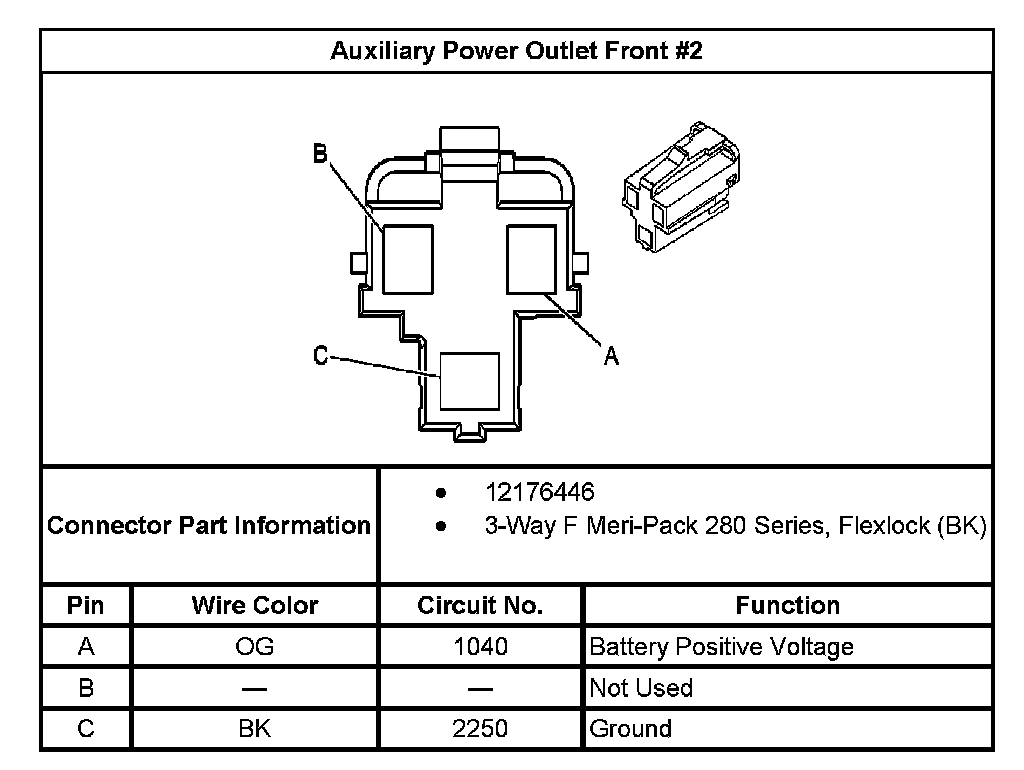

Auxiliary Power Outlet Front #2:

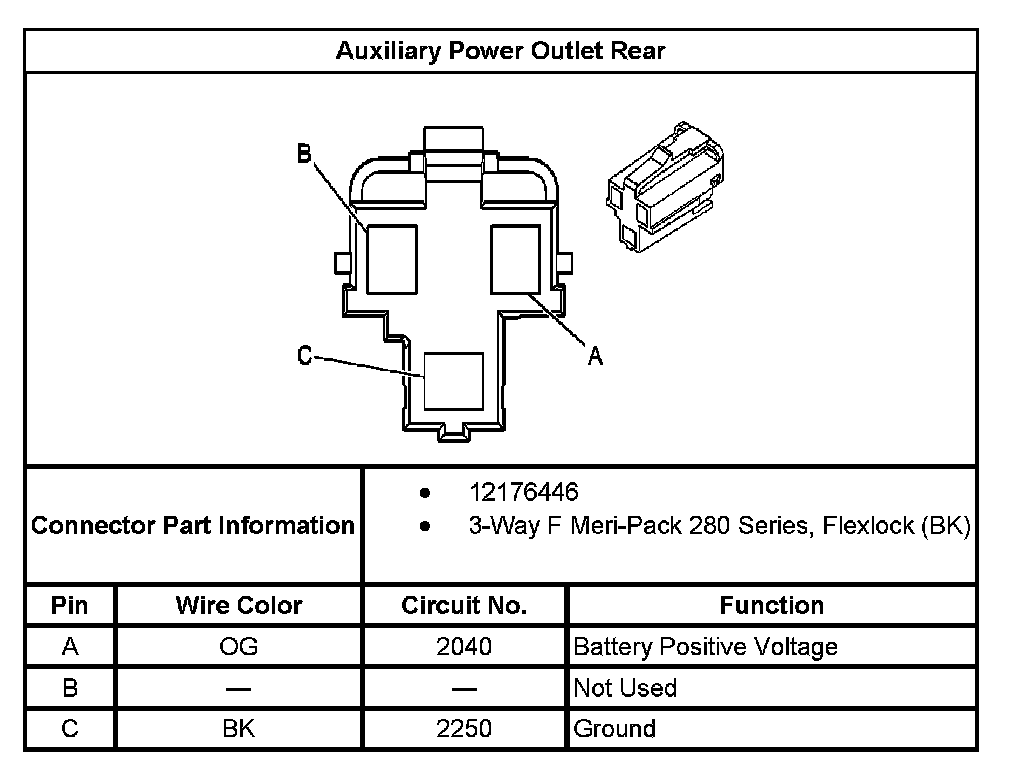

Auxiliary Power Outlet Rear:
