Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2003
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C199
>>
C105
C105

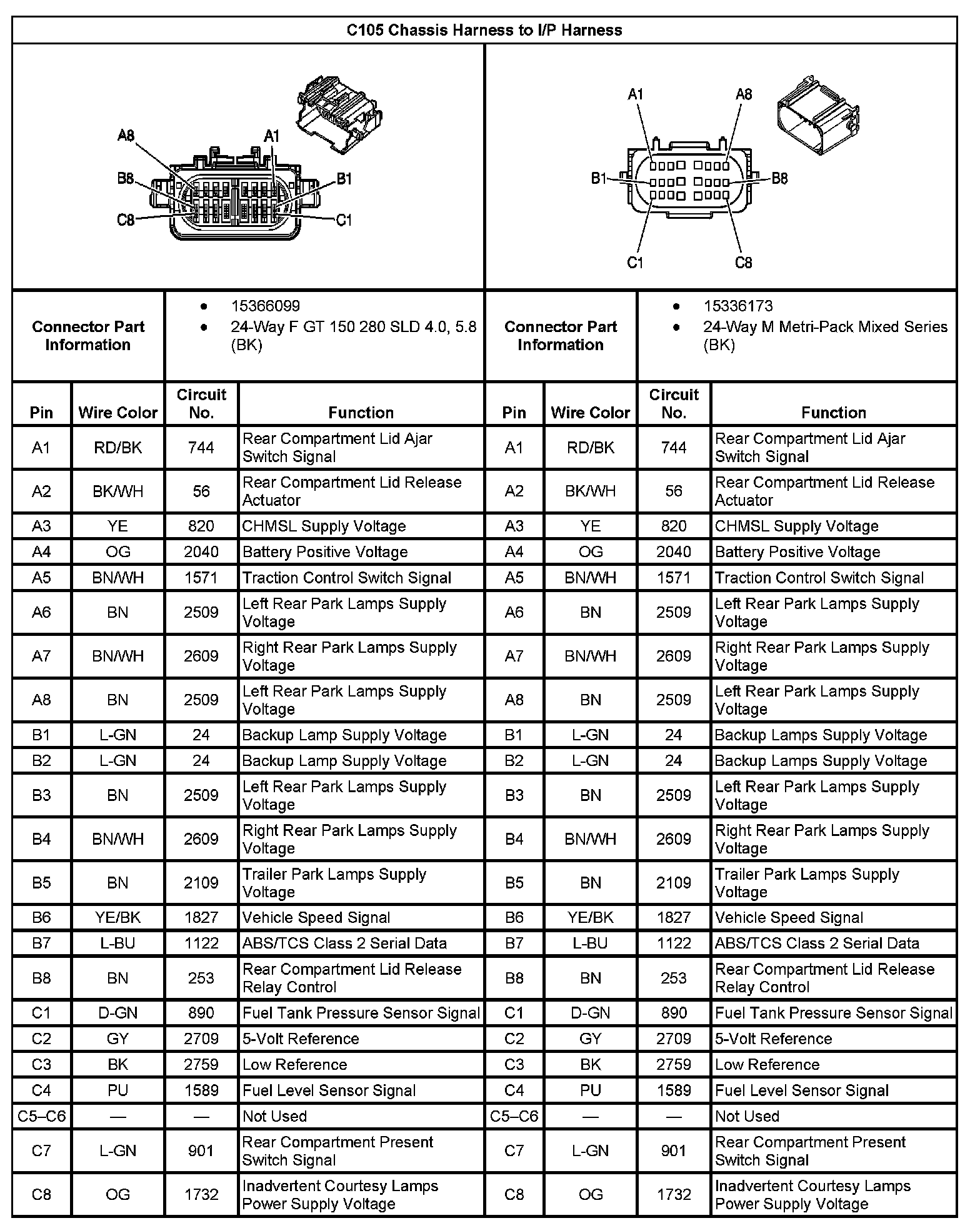

C105 Chassis Harness To I/P Harness:
