Impact Sensor
>>
Inflatable Restraint Seat Position Sensor (SPS)
Inflatable Restraint Seat Position Sensor (SPS)

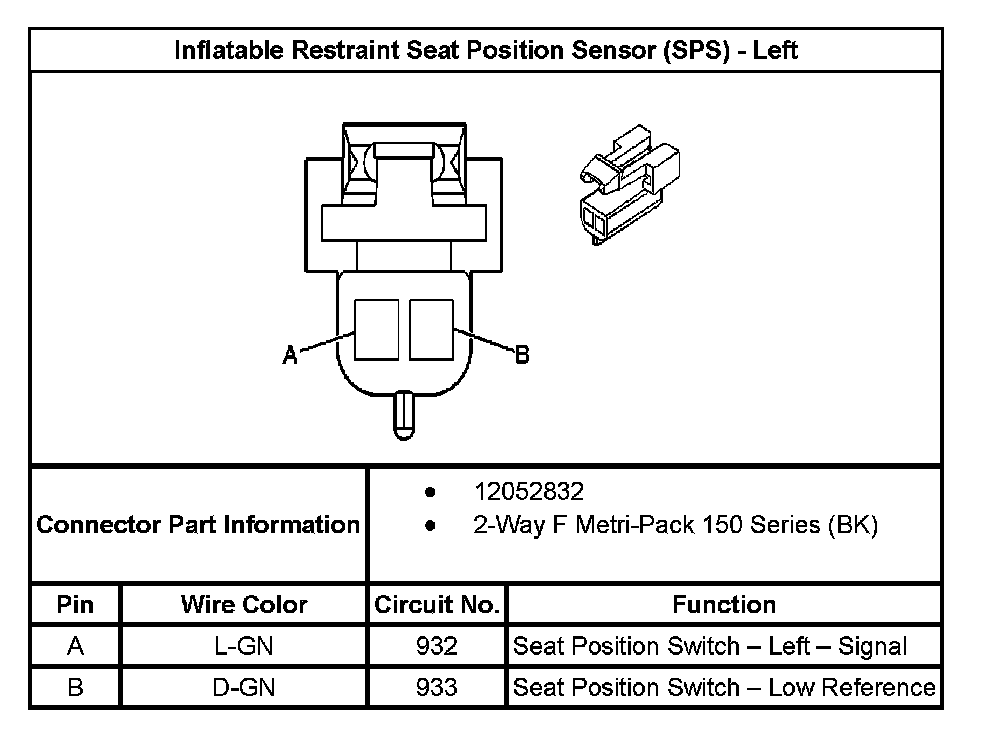

Inflatable Restraint Seat Position Sensor (SPS) - Left:

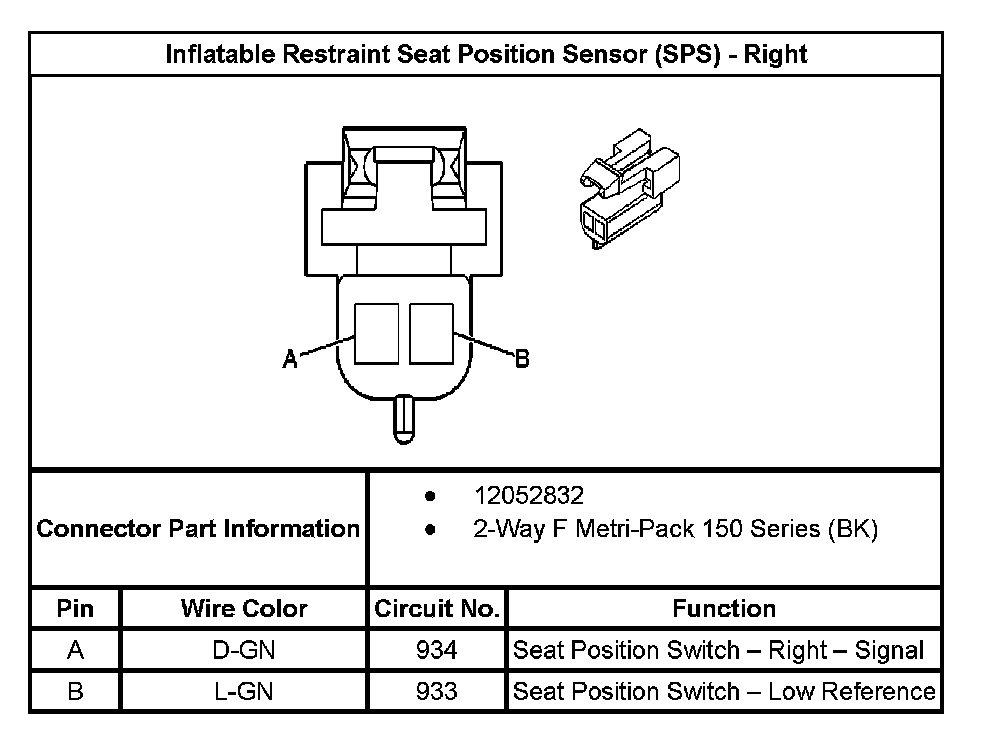

Inflatable Restraint Seat Position Sensor (SPS) - Right:
