System Diagram

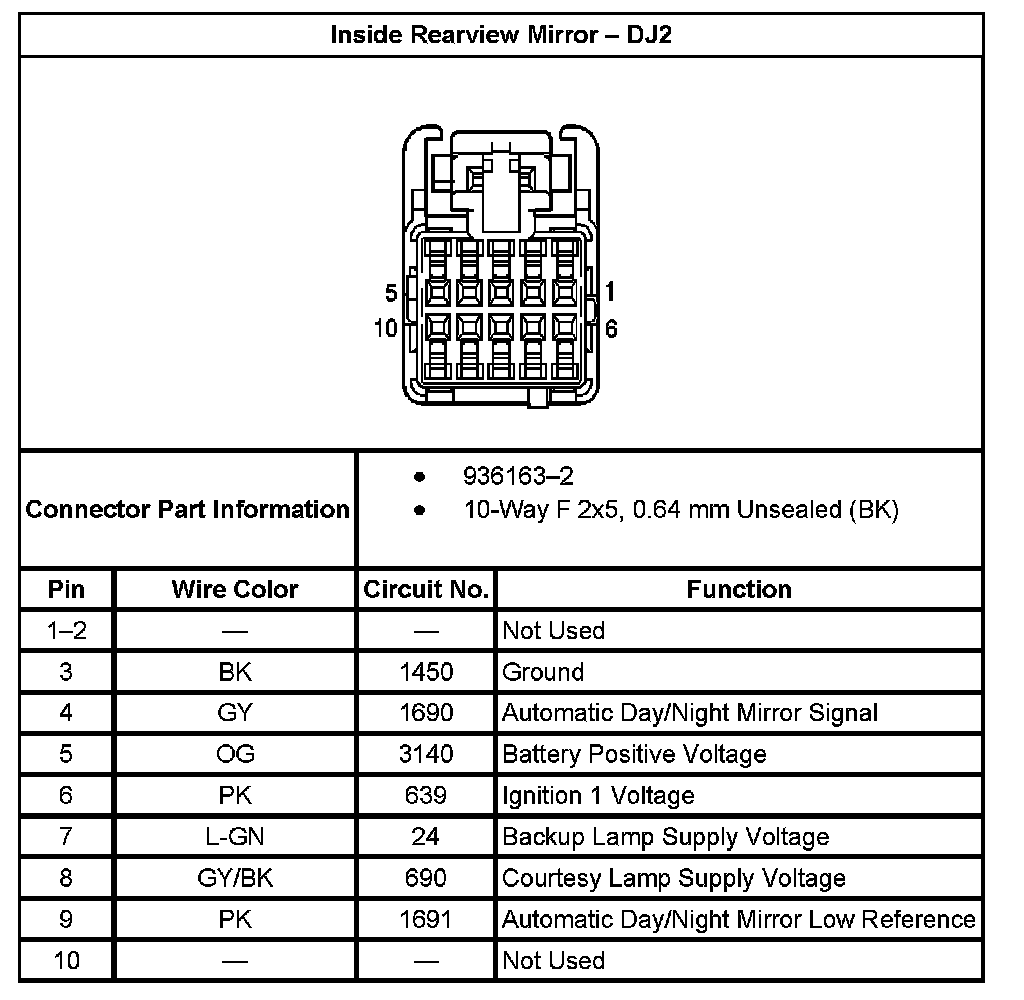

Inside Rearview Mirror - With RPO Code DJ2:

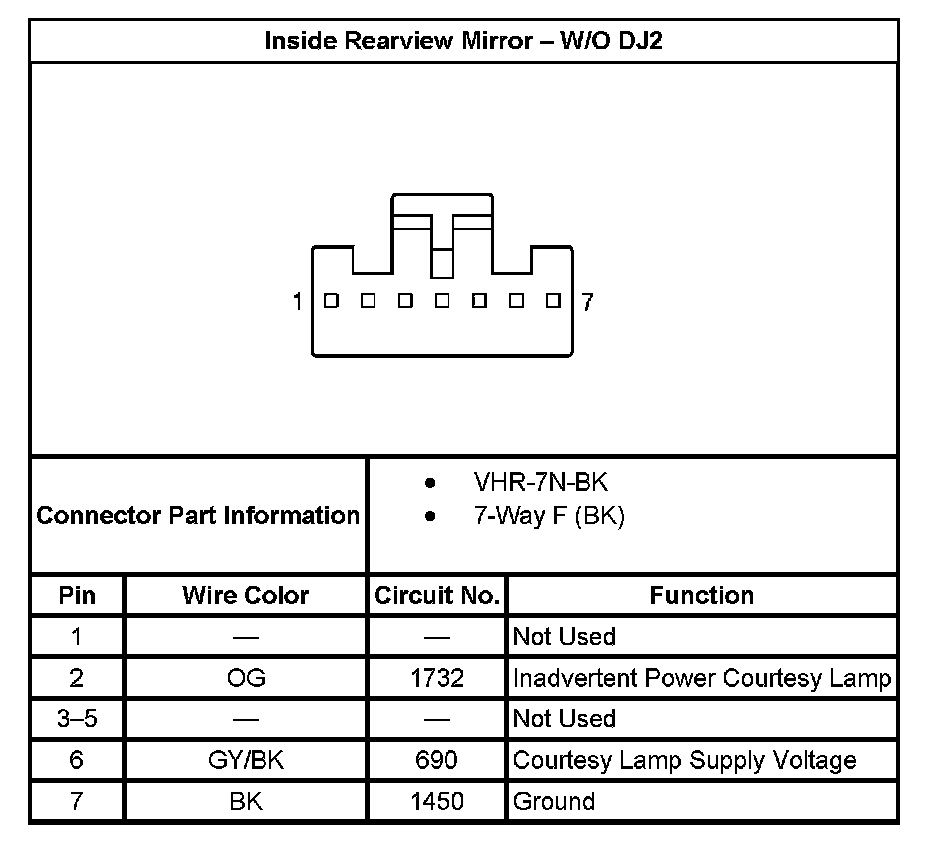

Inside Rearview Mirror - Without RPO Code DJ2:

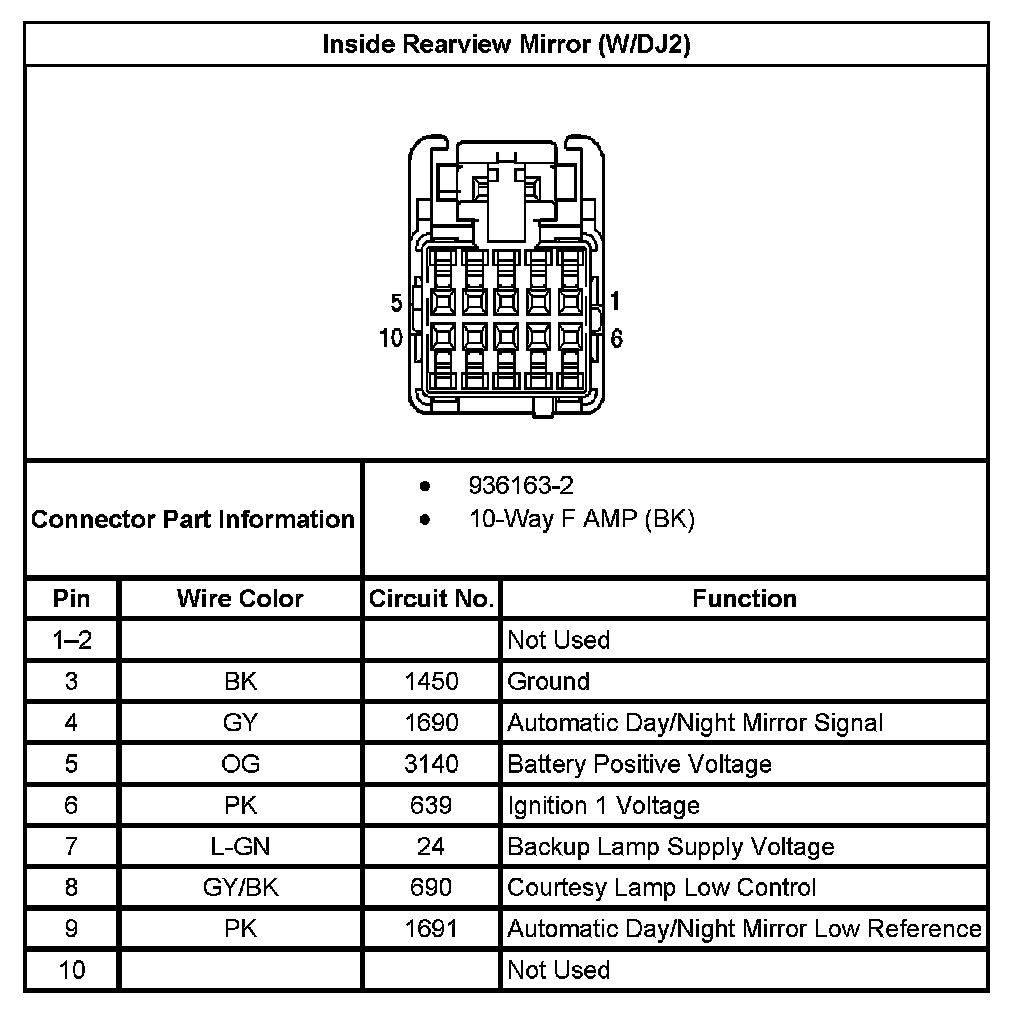

Inside Rearview Mirror (With RPO Code DJ2):

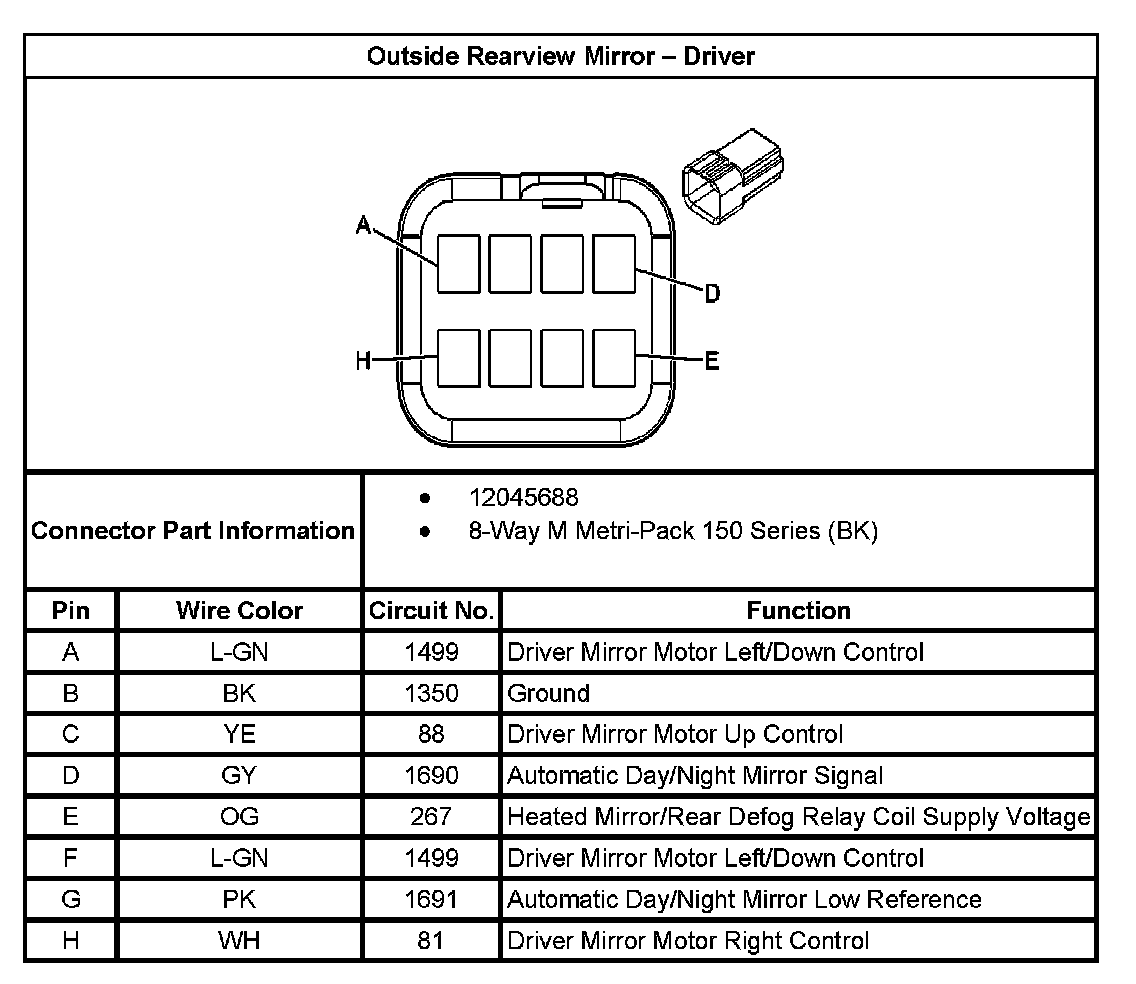

Outside Rearview Mirror - Driver:

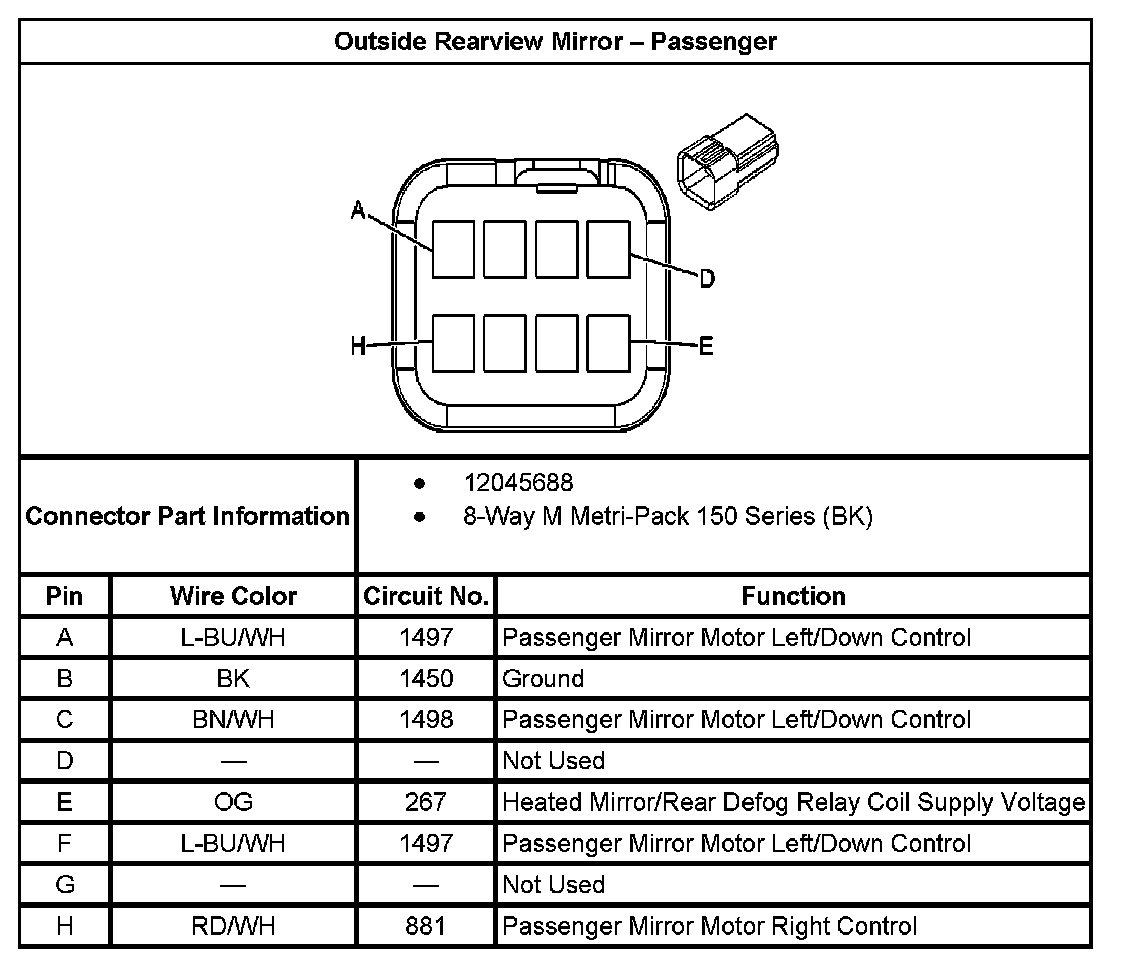

Outside Rearview Mirror - Passenger:
