Sunroof / Moonroof Position Sensor
>>
Retractable Roof Position Sensor
Retractable Roof Position Sensor

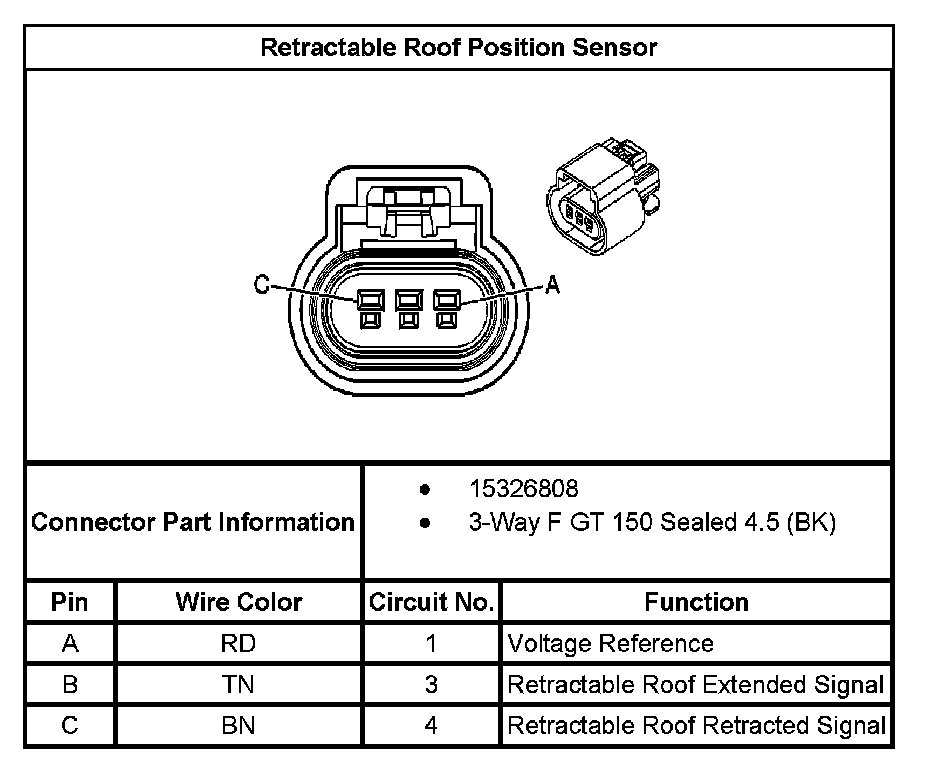

Retractable Roof Position Sensor:
