Sunroof / Moonroof Position Sensor
>>
Retractable Roof Stowage Compartment Closeout Panel Position Sensor - Extended/Retracted
Retractable Roof Stowage Compartment Closeout Panel Position Sensor - Extended/Retracted

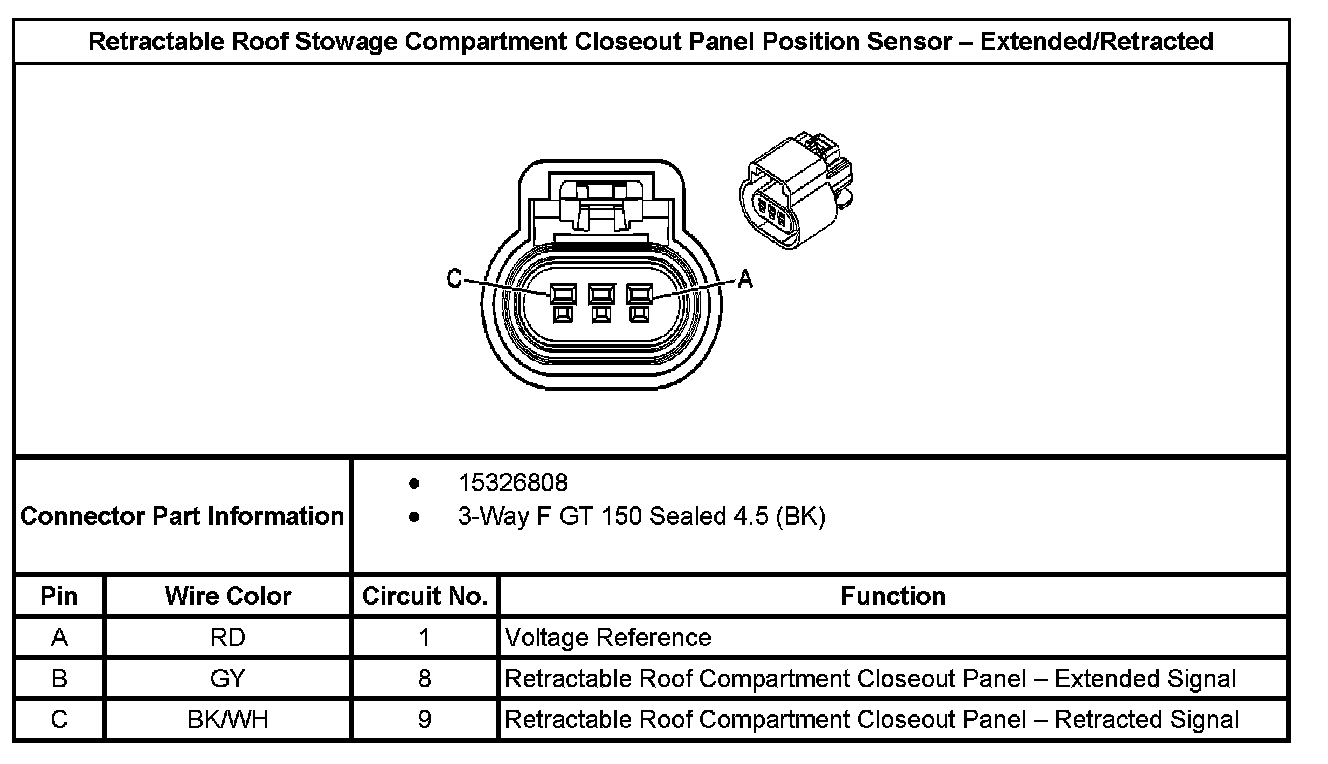

Retractable Roof Stowage Compartment Closeout Panel Position Sensor - Extended/Retracted:
