Home >> Chevrolet >> 2003 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Sunroof / Moonroof Position Sensor >> Retractable Roof Stowage Compartment Lid Position Sensor

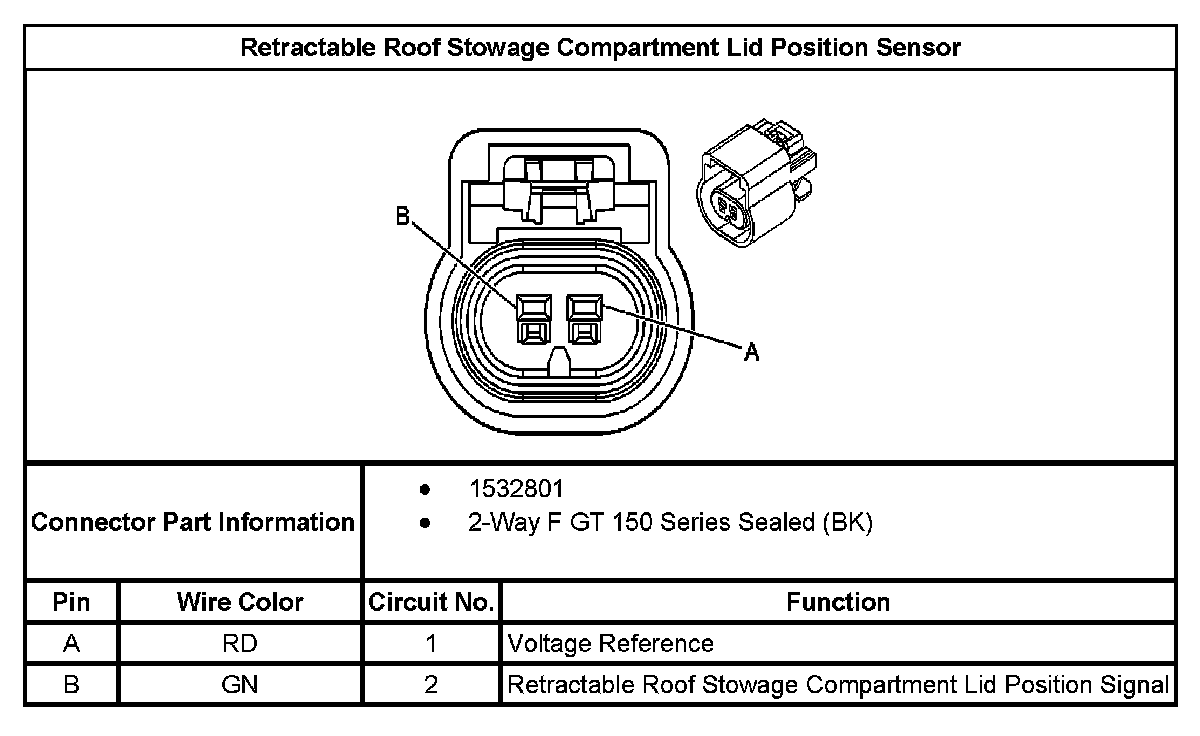

Retractable Roof Stowage Compartment Lid Position Sensor

Retractable Roof Stowage Compartment Lid Position Sensor:
