Sunroof / Moonroof Position Sensor
>>
Retractable Roof Stowage Compartment Position Sensor
Retractable Roof Stowage Compartment Position Sensor

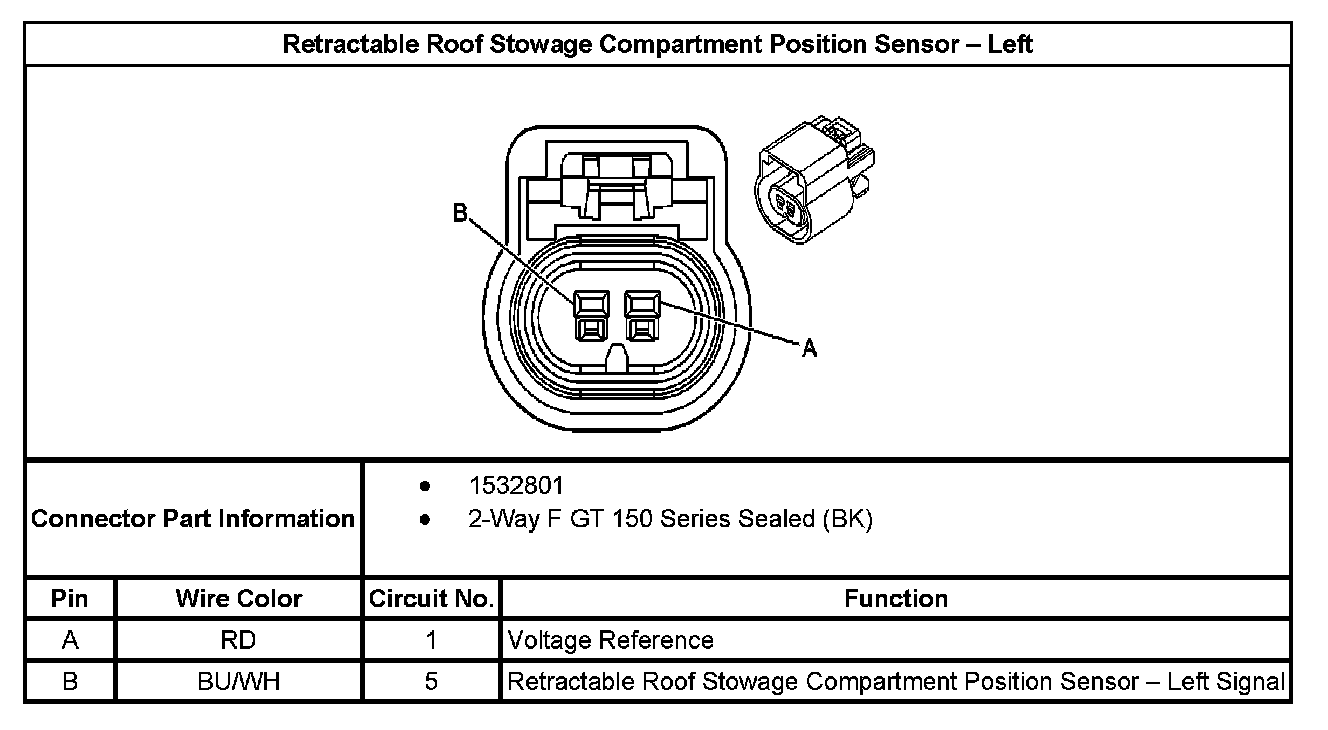

Retractable Roof Stowage Compartment Position Sensor - Left:

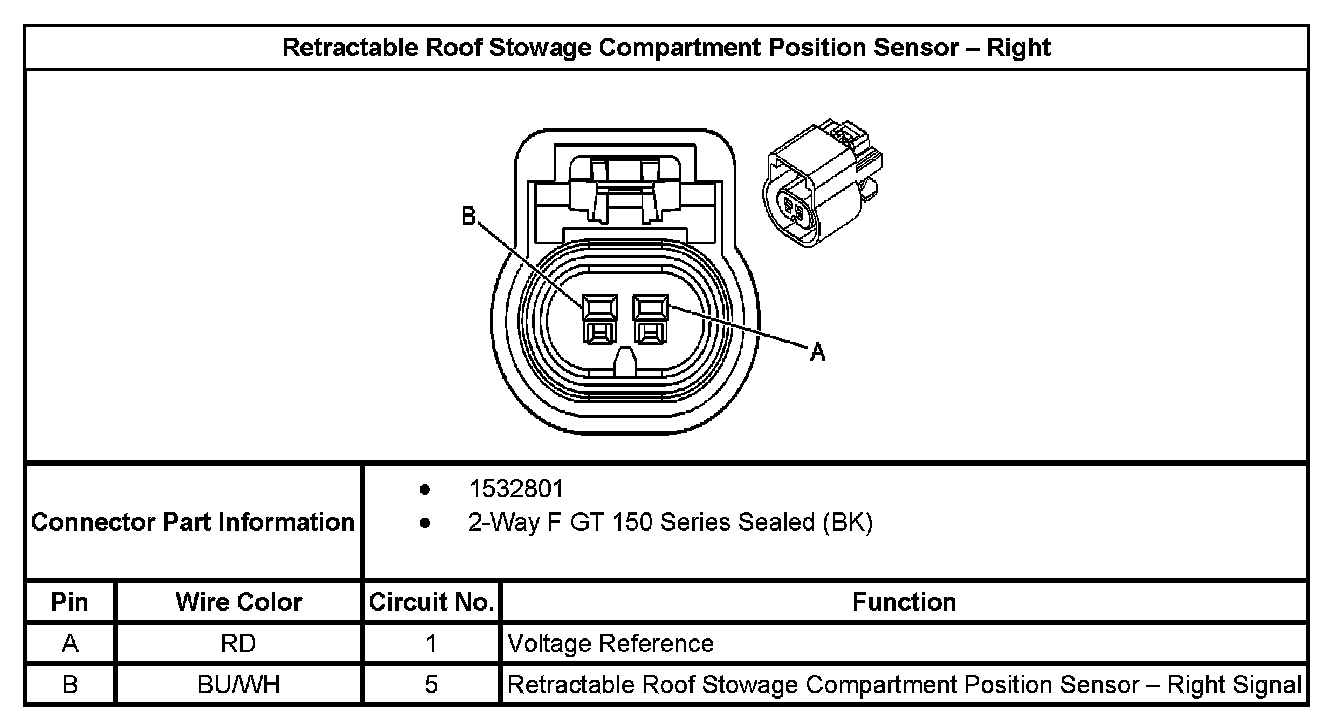

Retractable Roof Stowage Compartment Position Sensor - Right:
