SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sunroof / Moonroof Relay
Sunroof / Moonroof Relay

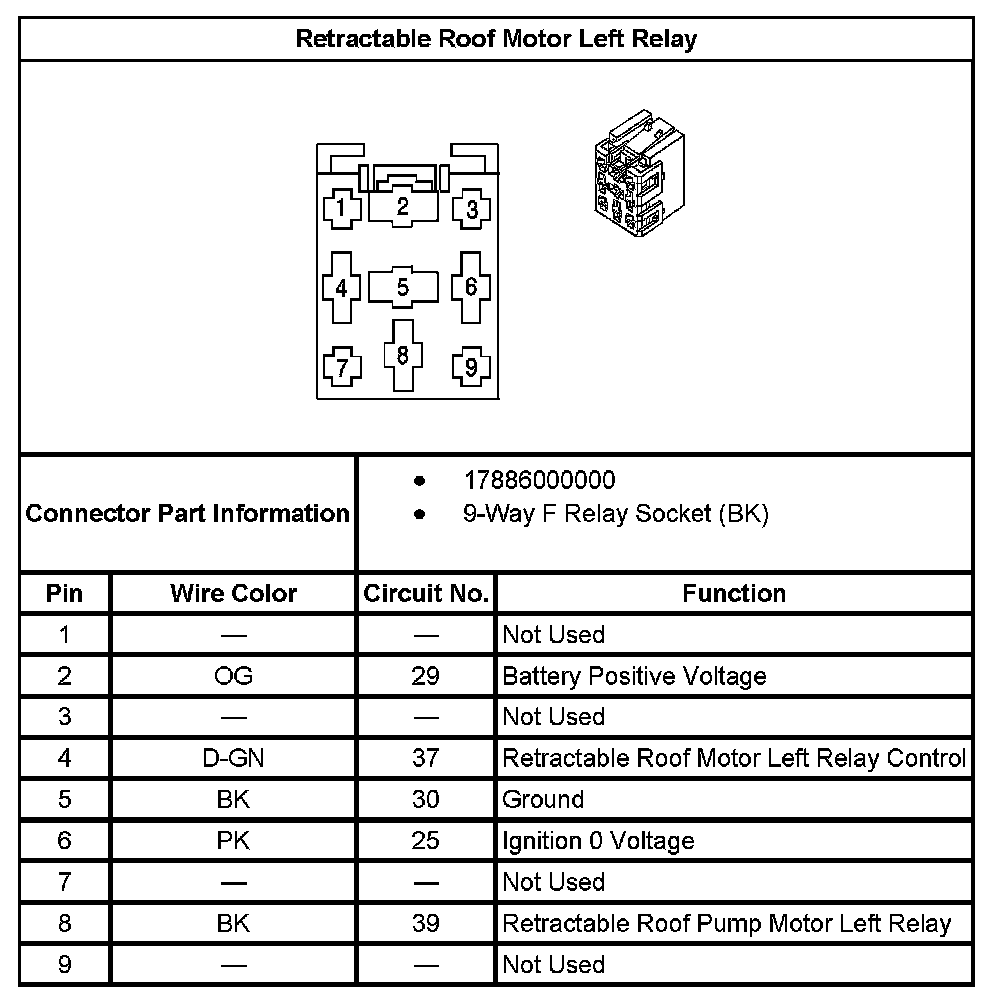

Retractable Roof Motor Left Relay:

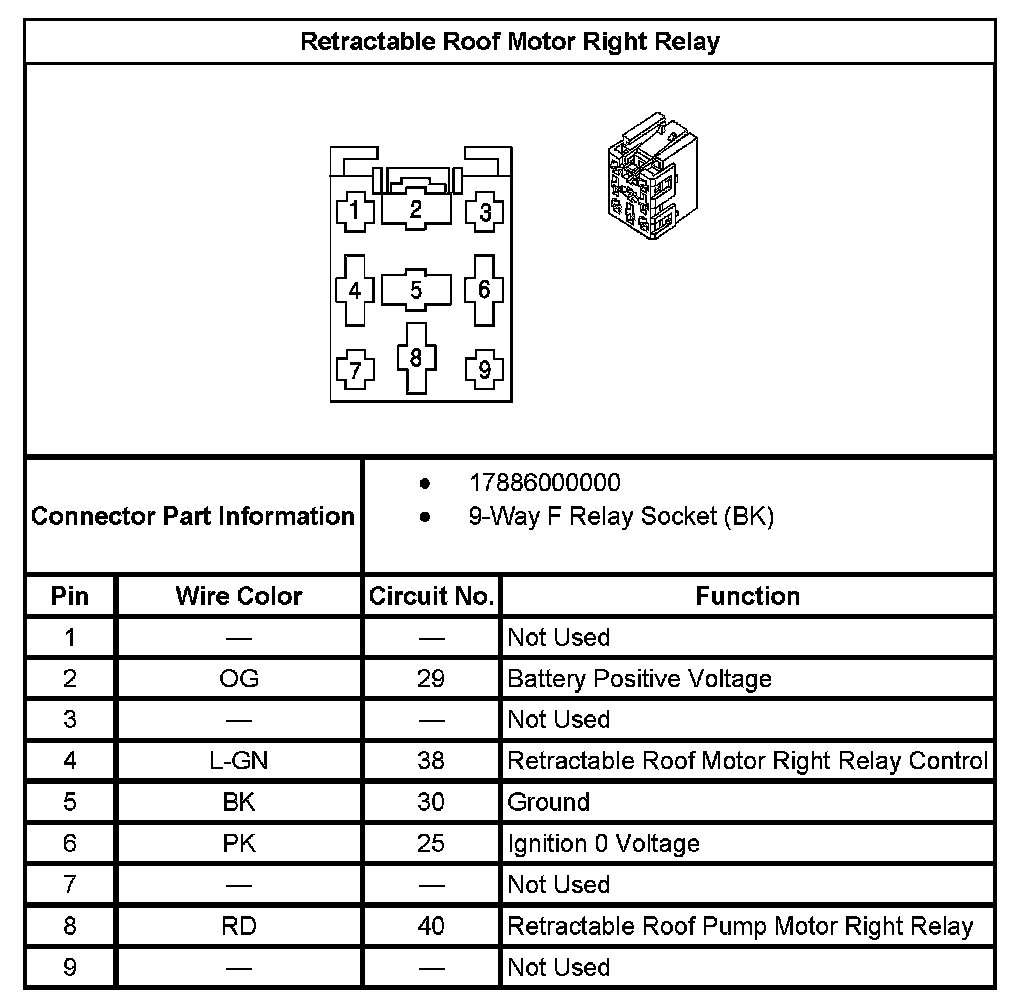

Retractable Roof Motor Right Relay:
