Cylinder Head/Upper Engine

Disassembled Views

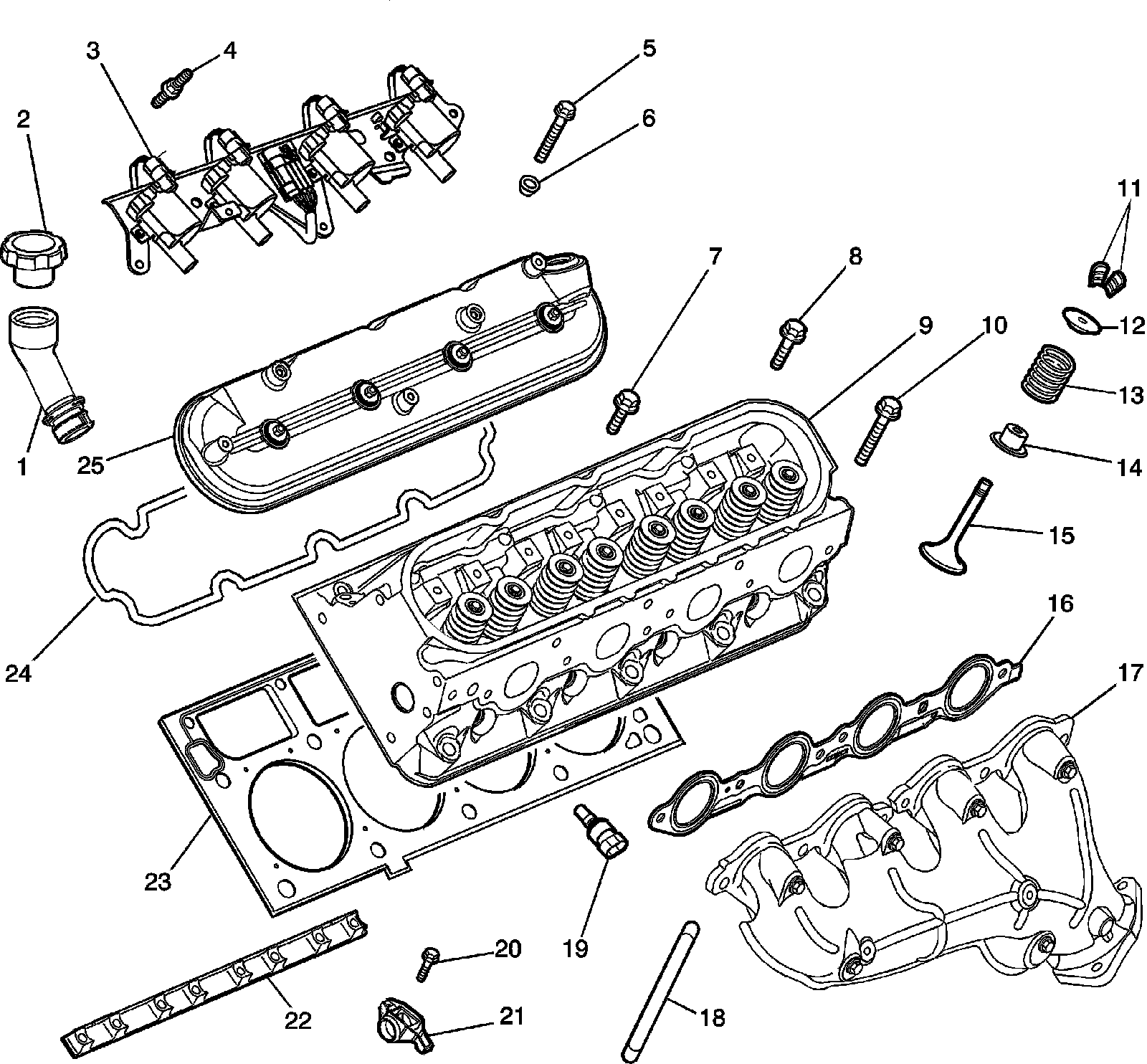

Cylinder Head/Upper Engine:

1 - Oil Fill Tube
2 - Oil Fill Tube Cap
3 - Ignition Coil and Bracket Assembly
4 - Ignition Coil and Bracket Assembly Bolt
5 - Valve Rocker Arm Cover Bolt
6 - Valve Rocker Arm Cover Bolt Grommet
7 - Cylinder Head Bolt - Short
8 - Cylinder Head Bolt - Medium
9 - Cylinder Head
10 - Cylinder Head Bolt - Long
11 - Valve Stem Keys
12 - Valve Spring Cap
13 - Valve Spring
14 - Valve Stem Oil Seal
15 - Valve
16 - Exhaust Manifold Gasket
17 - Exhaust Manifold - with Heat Shield
18 - Pushrod
19 - Coolant Temperature Sensor
20 - Valve Rocker Arm Bolt
21 - Valve Rocker Arm
22 - Valve Rocker Arm Pivot Support
23 - Cylinder Head Gasket
24 - Valve Rocker Arm Cover Gasket
25 - Valve Rocker Arm Cover
