Home >> Chevrolet >> 2003 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams

Electrical Diagrams



HVAC SCHEMATICS

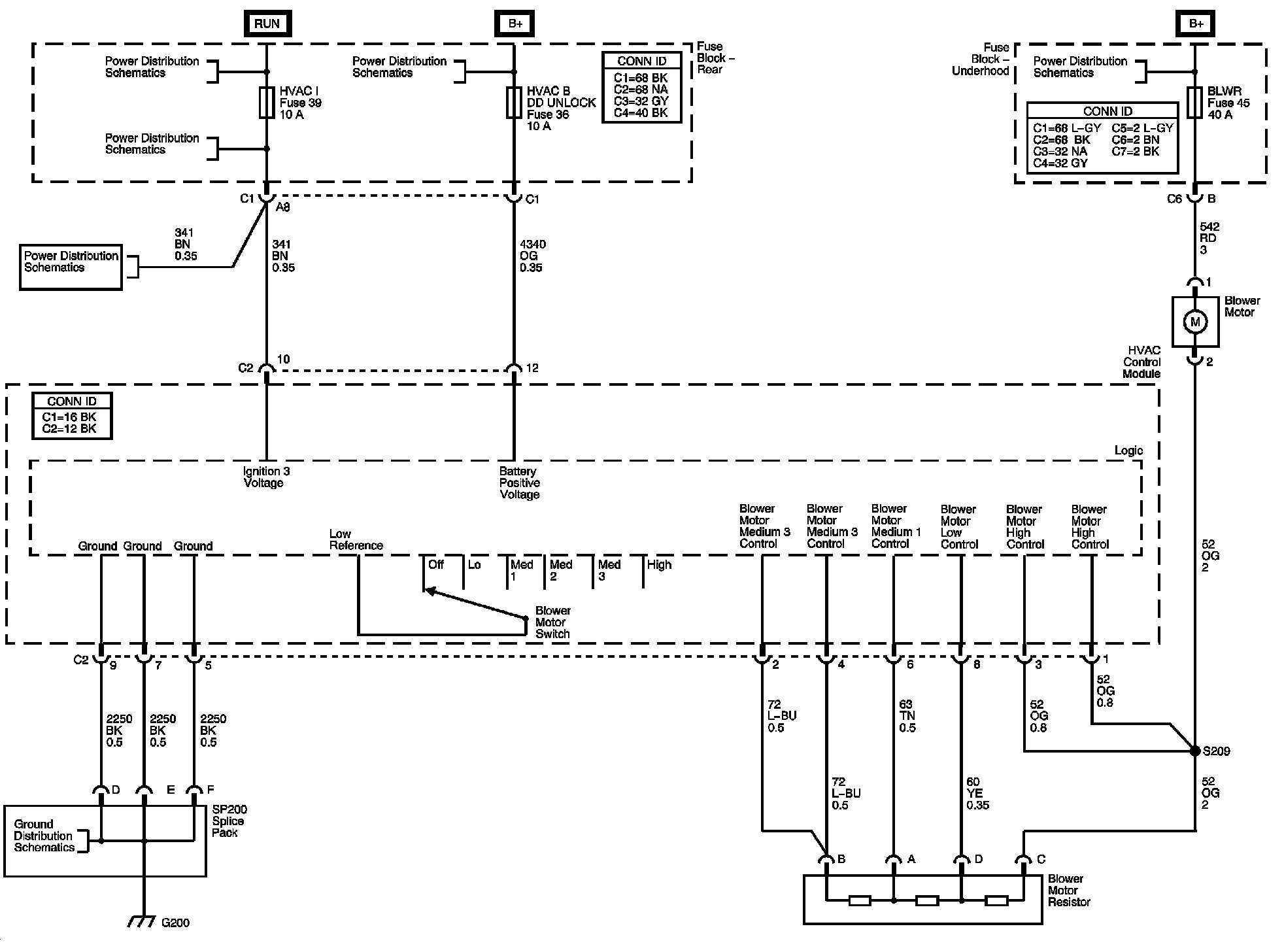

Blower Motor and Mode Controls

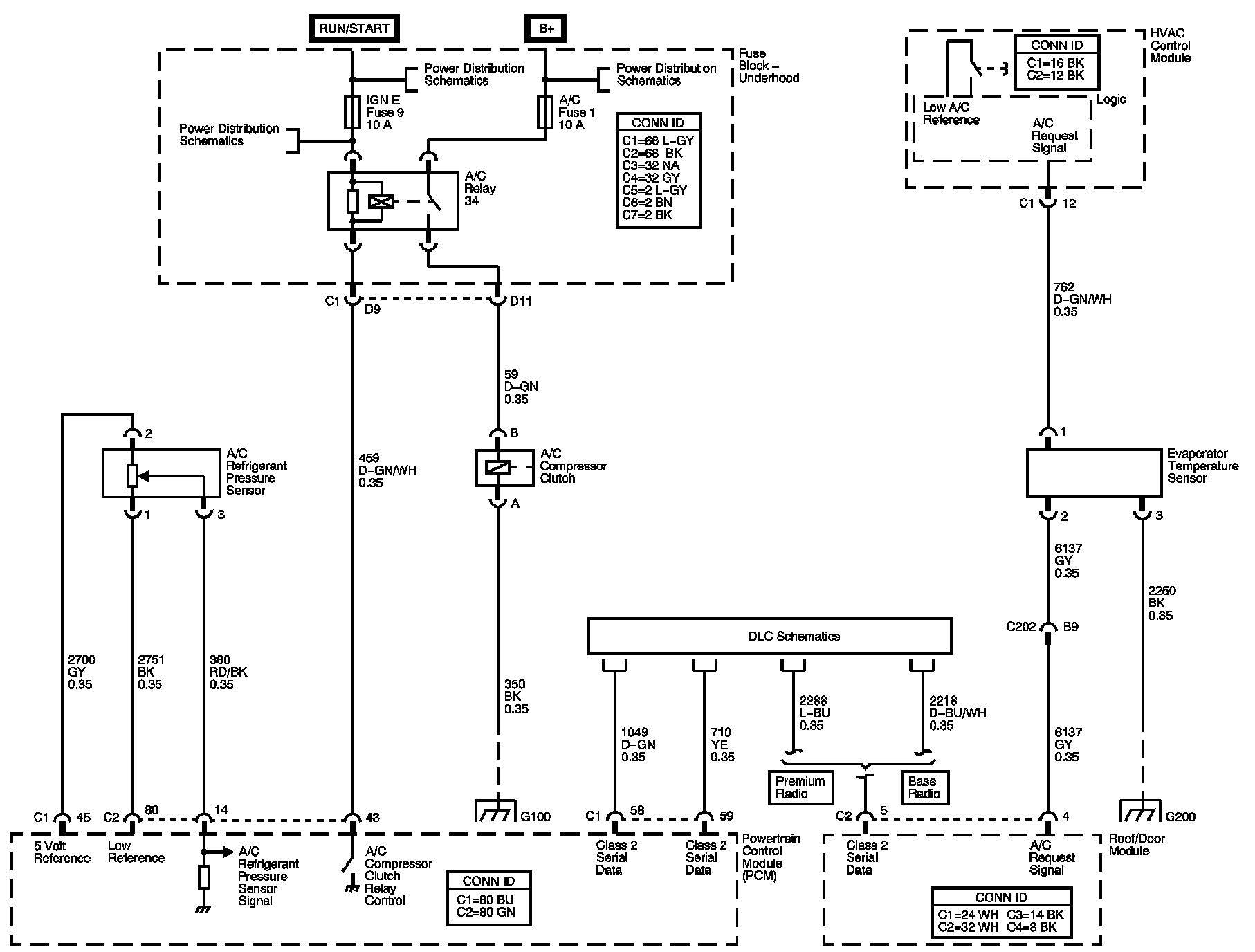

A/C Compressor Controls

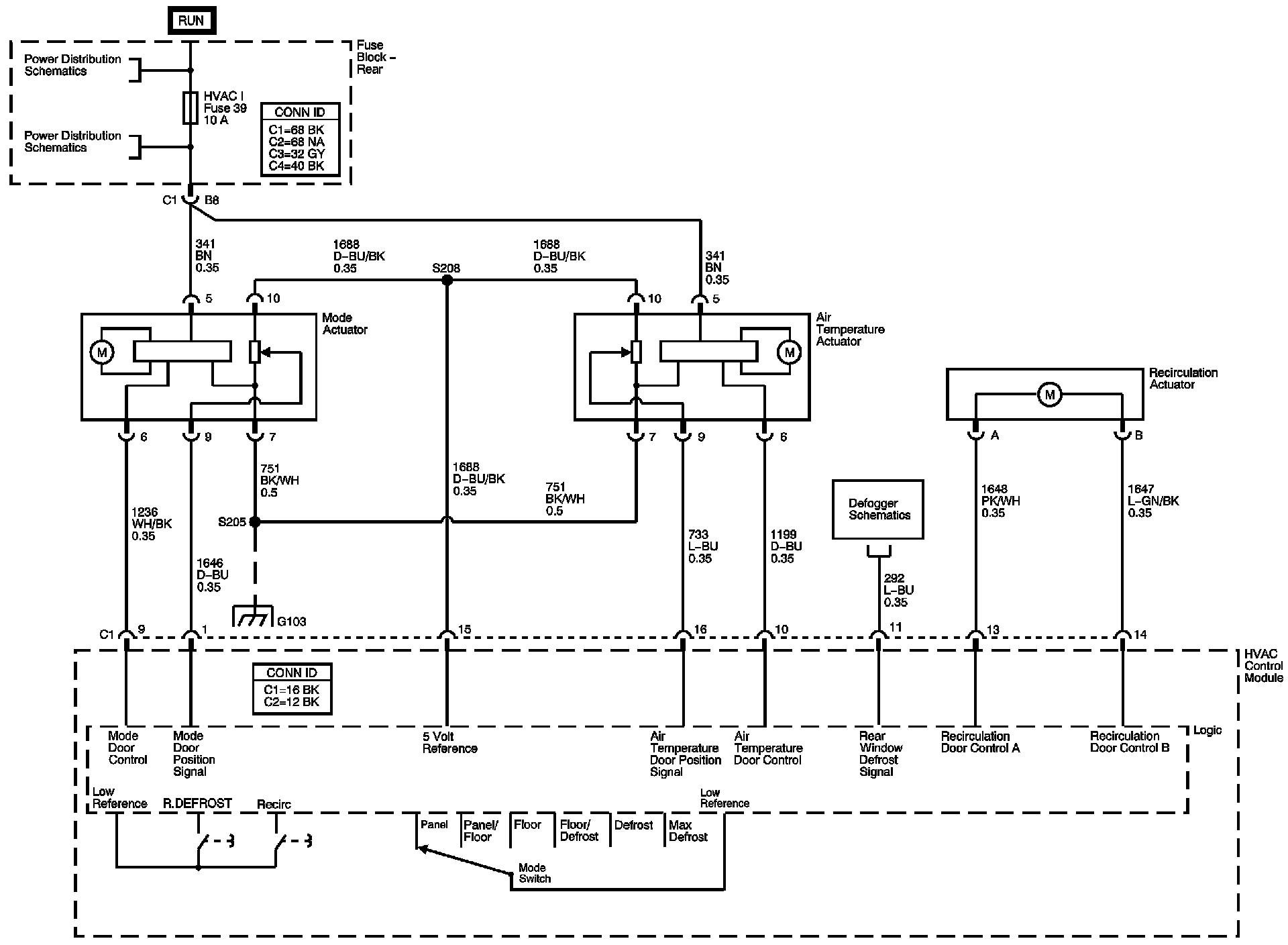

Actuators
