Locations
>>
Harness Locations
>>
I/P Views
I/P Views

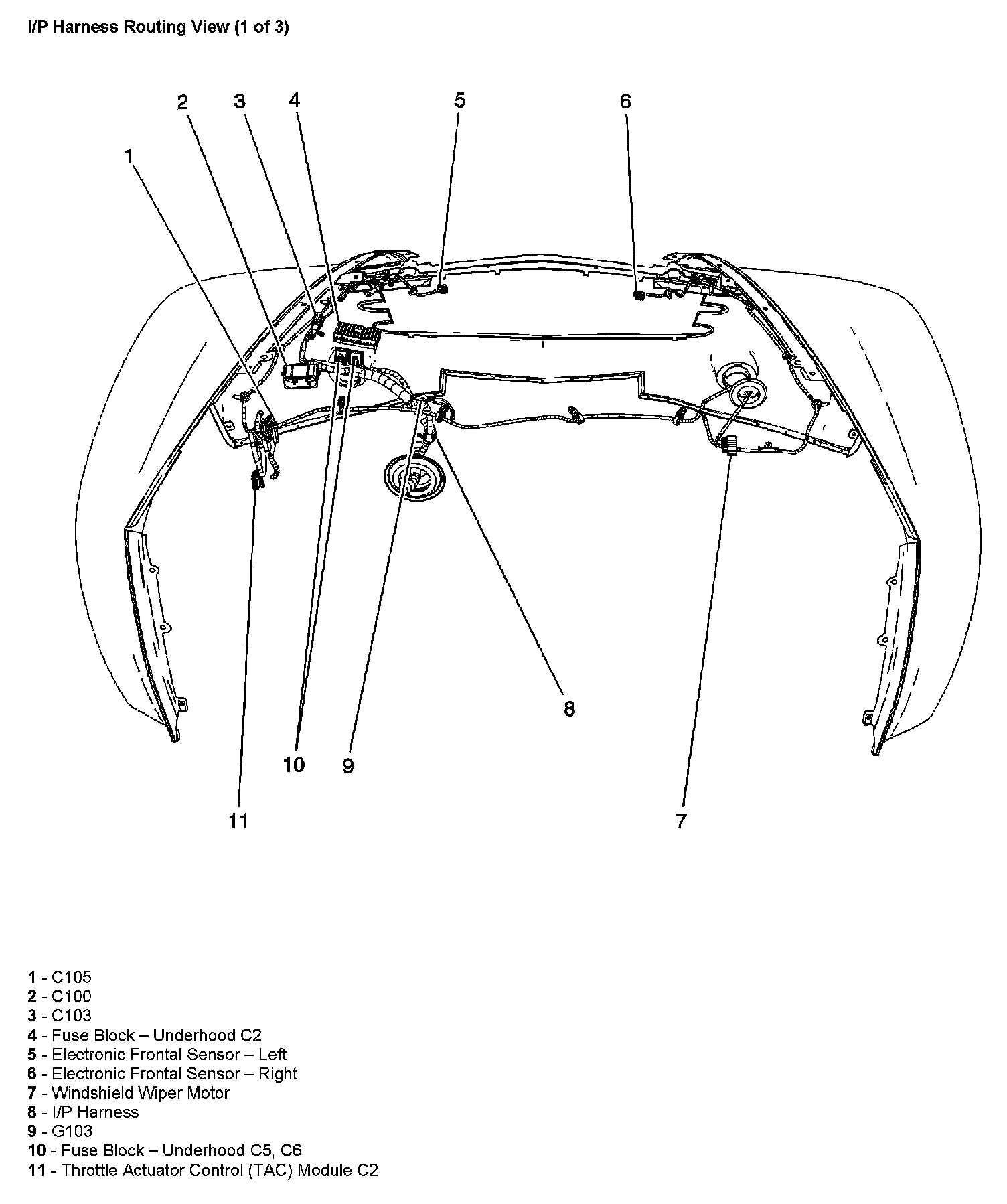

P Harness Routing View (Part 1):

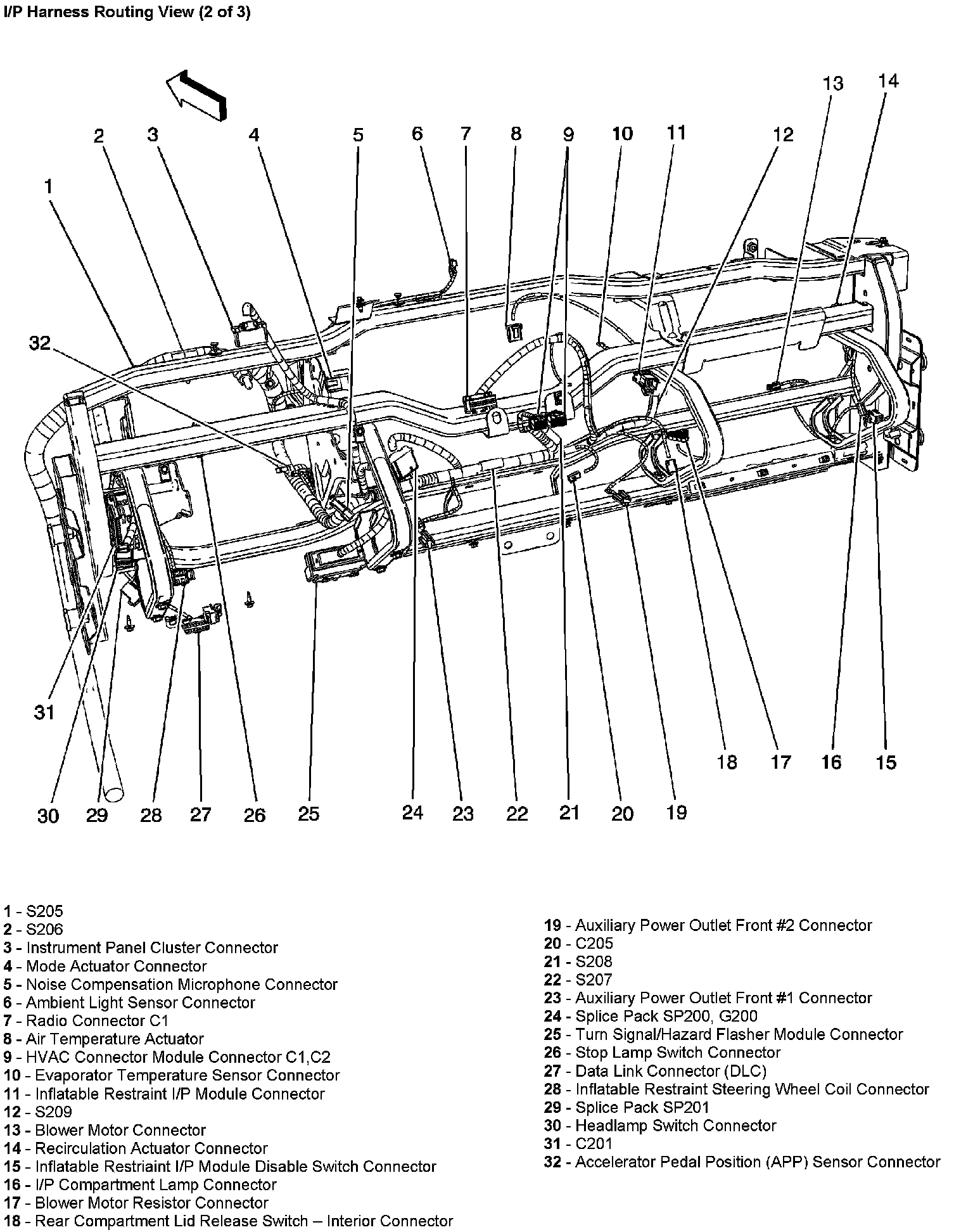

I/P Harness Routing View (Part 2):

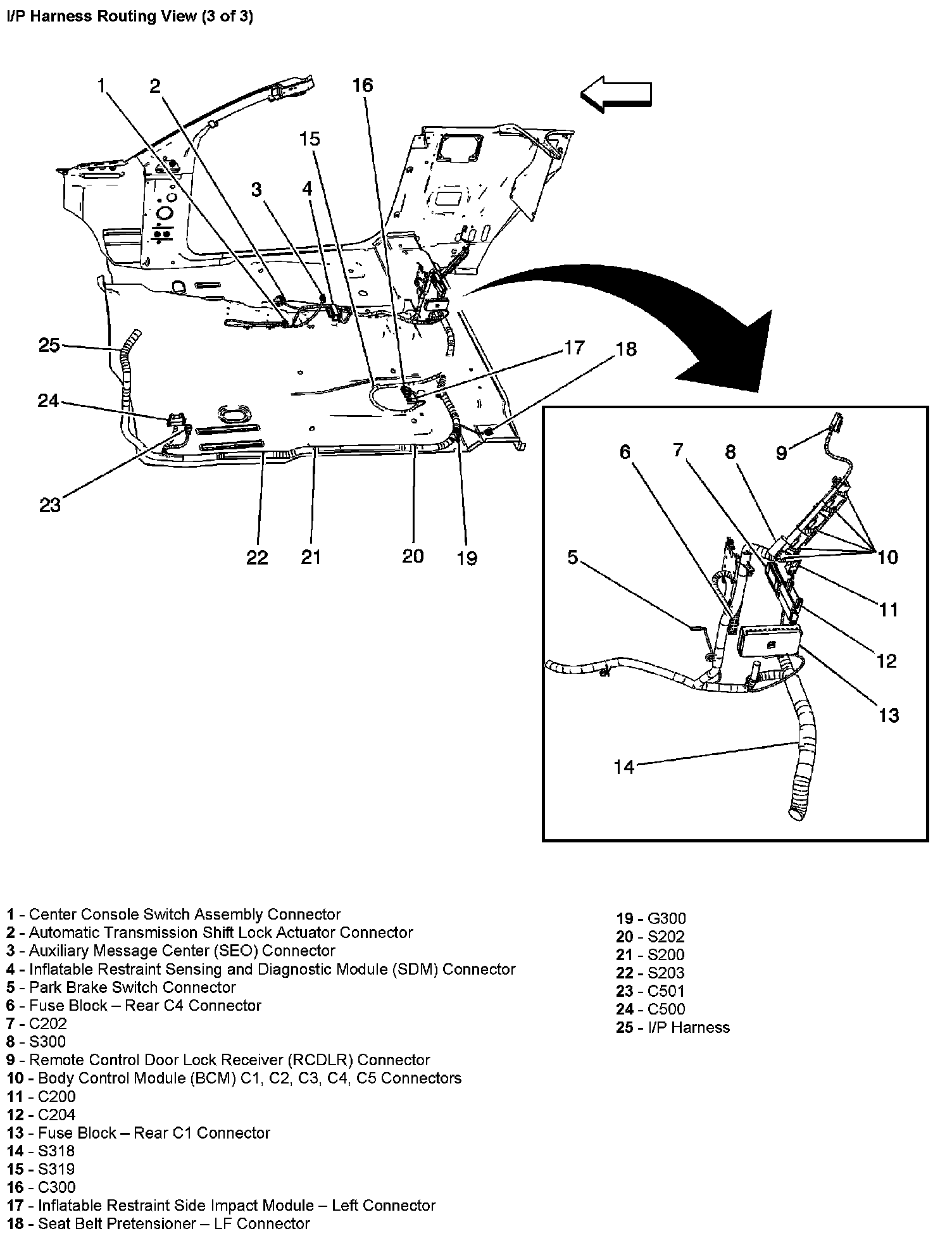

I/P Harness Routing View (Part 3):
