Driver Seat Base Level Harness Routing
Driver Seat Base Level Harness Routing

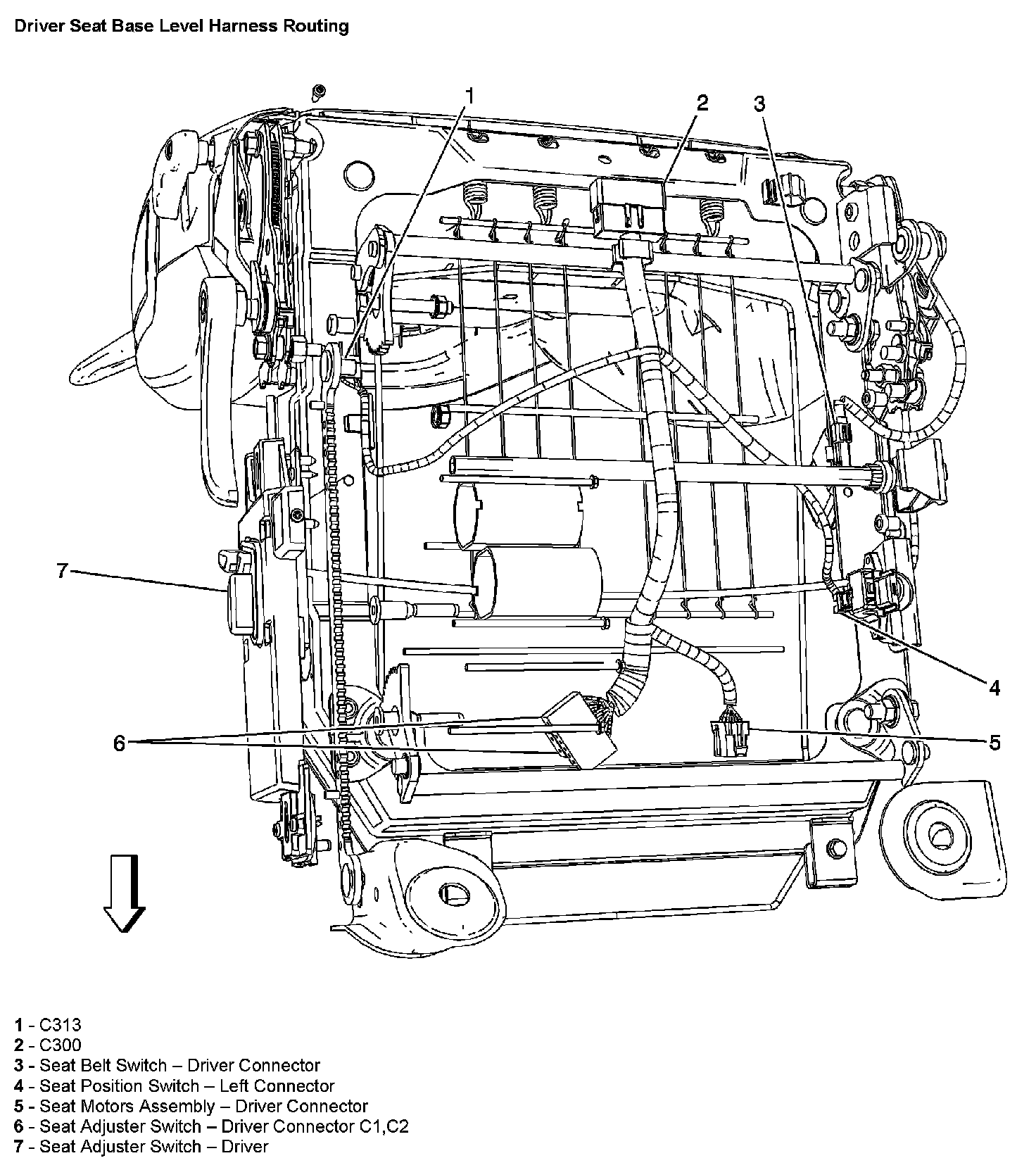

Driver Seat Base Level Harness Routing:
