Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2003
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Rear Relay Block
Rear Relay Block

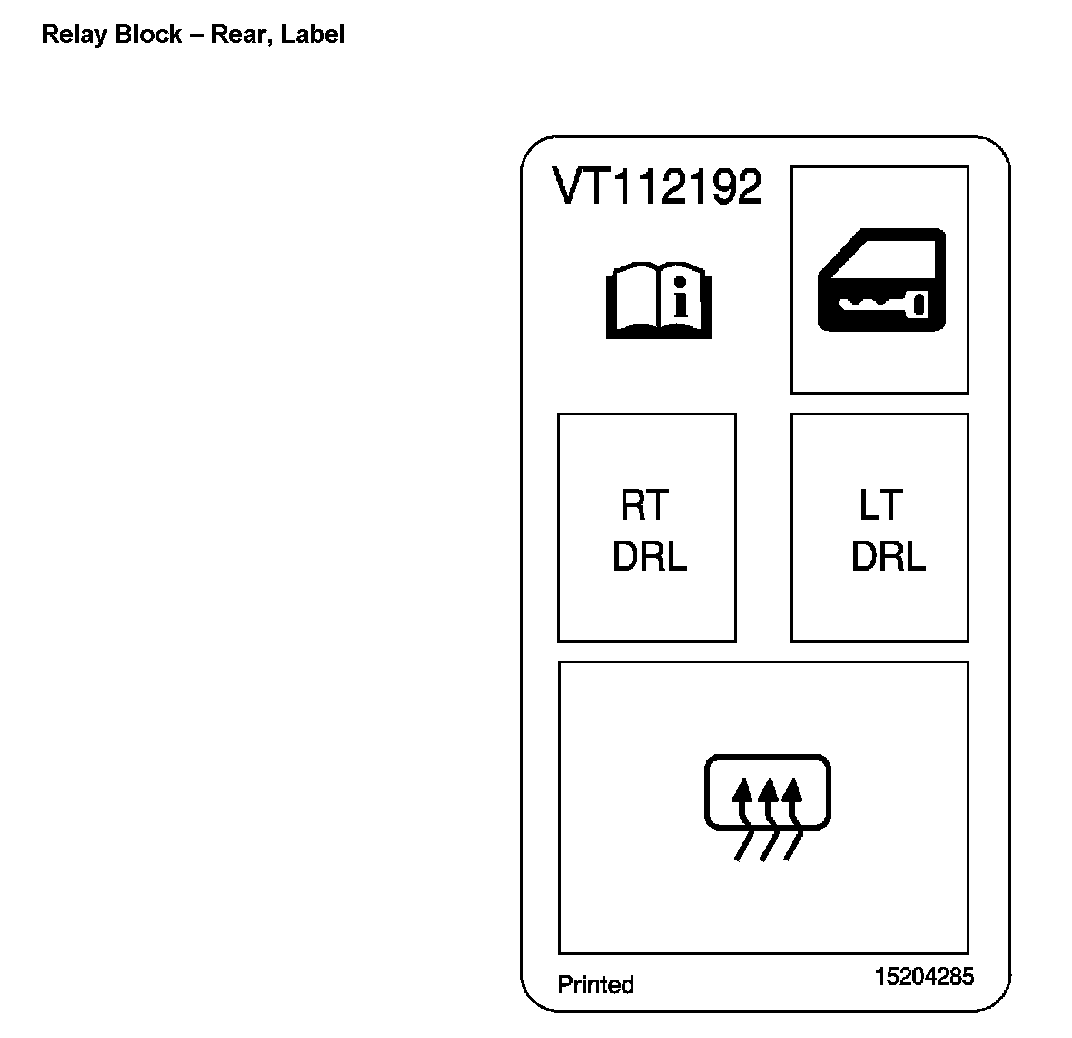

Location View:

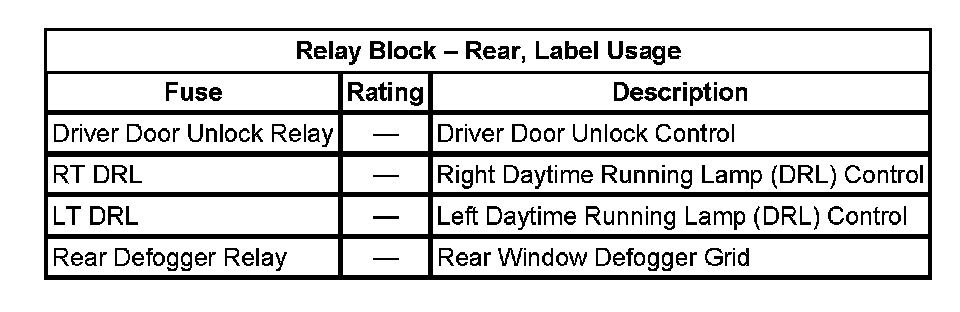

Application Table:

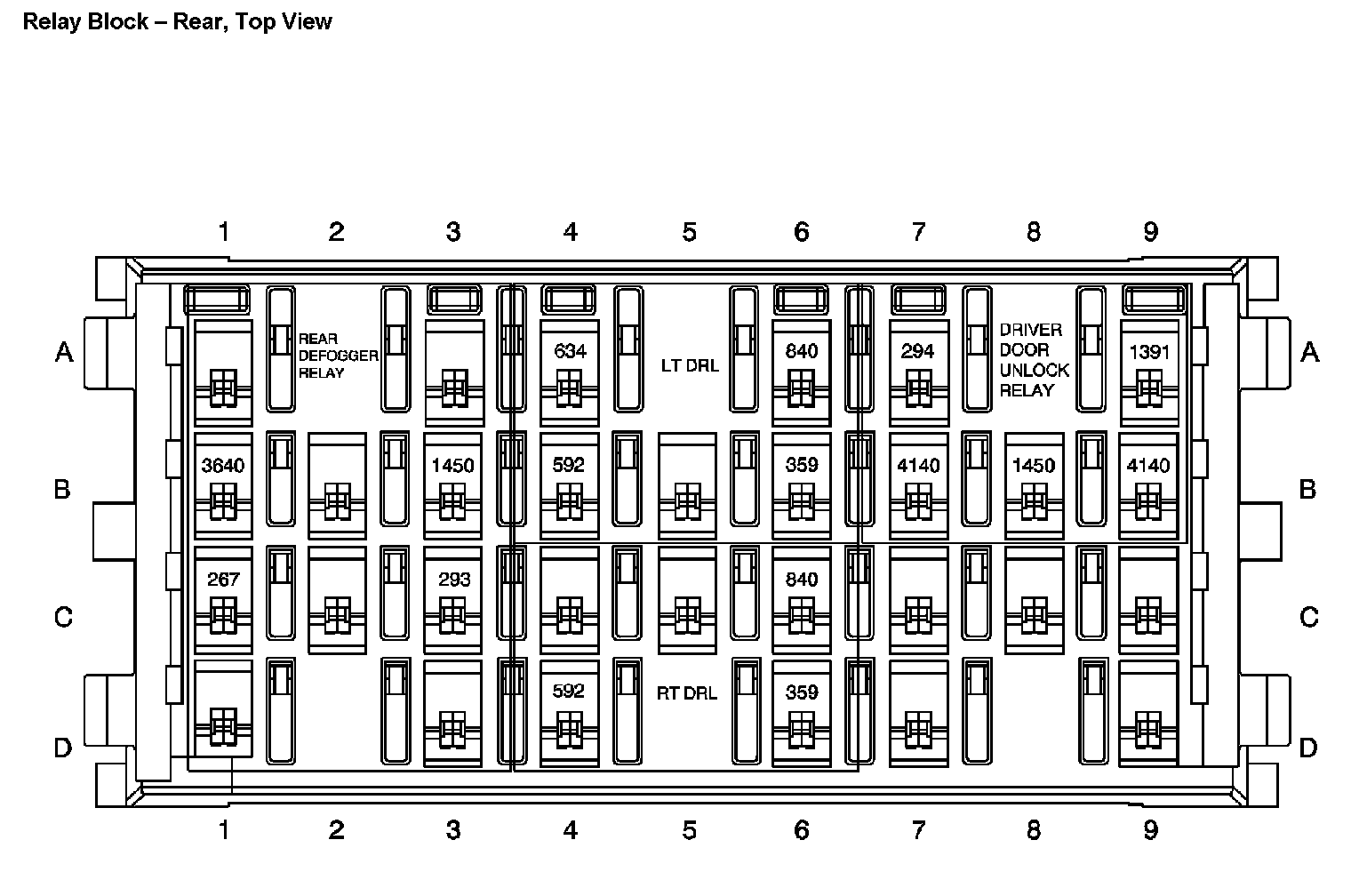

Location View:
