Home >> Chevrolet >> 2003 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams >> Park Neutral Position Switch (C2)

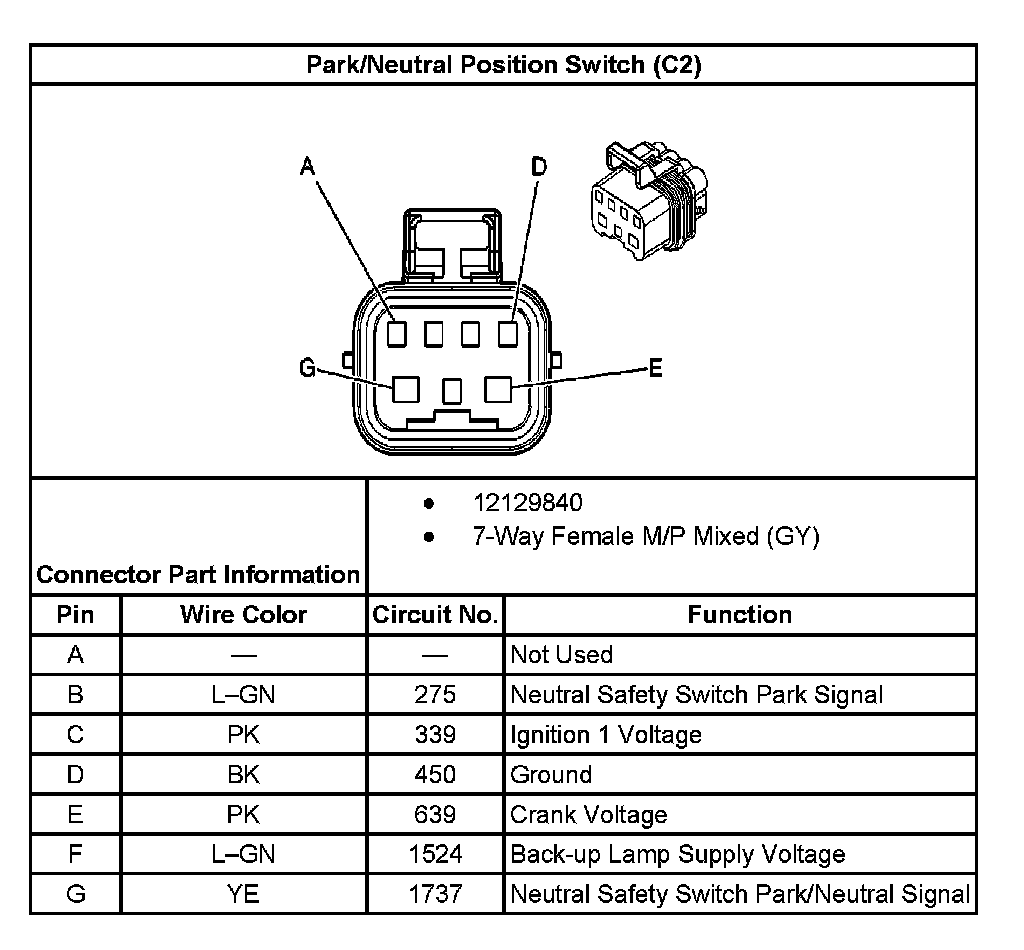

Park Neutral Position Switch (C2)

Park Neutral Position Switch (C2):
