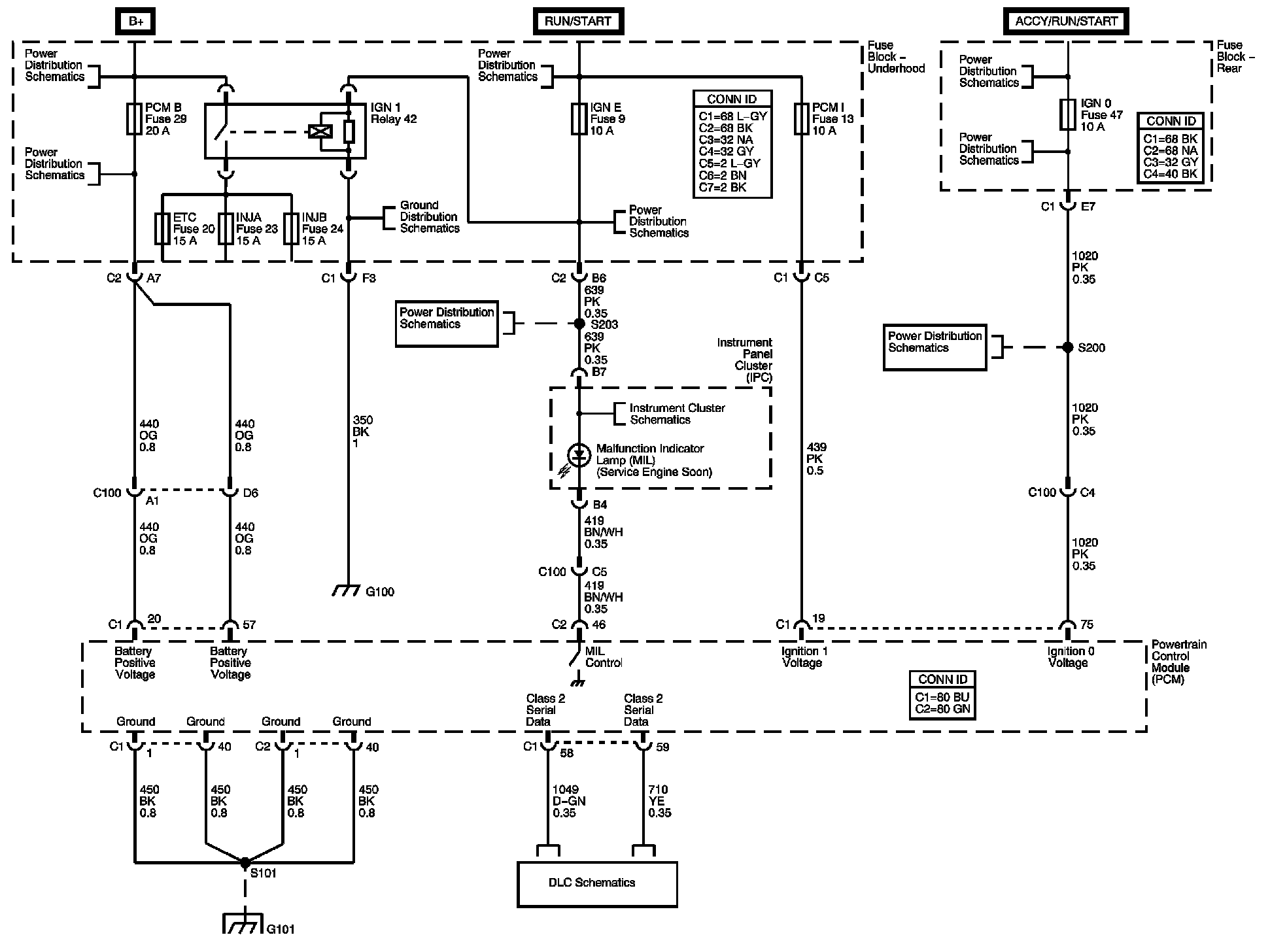

Engine Controls Diagram 1

Power, Ground, Serial Data and MIL:






Next Diagram Engine Controls Diagram 2
