Engine Controls Diagram 2

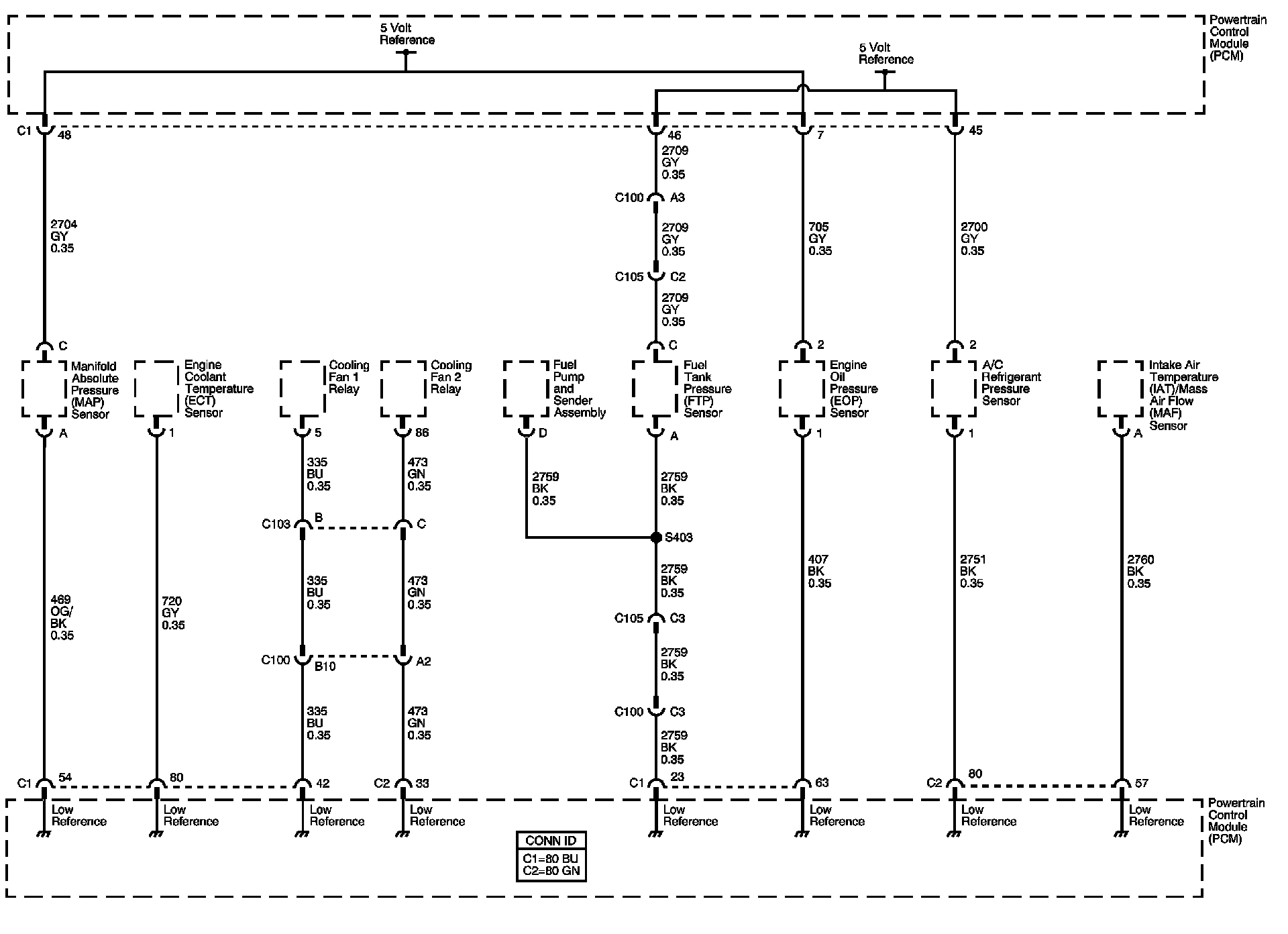

Engine Data Sensors - 5 Volt and Low Reference:






Next Diagram Engine Controls Diagram 3

Previous Diagram Engine Controls Diagram 1
