Engine Controls Diagram 3
Engine Controls Diagram 3

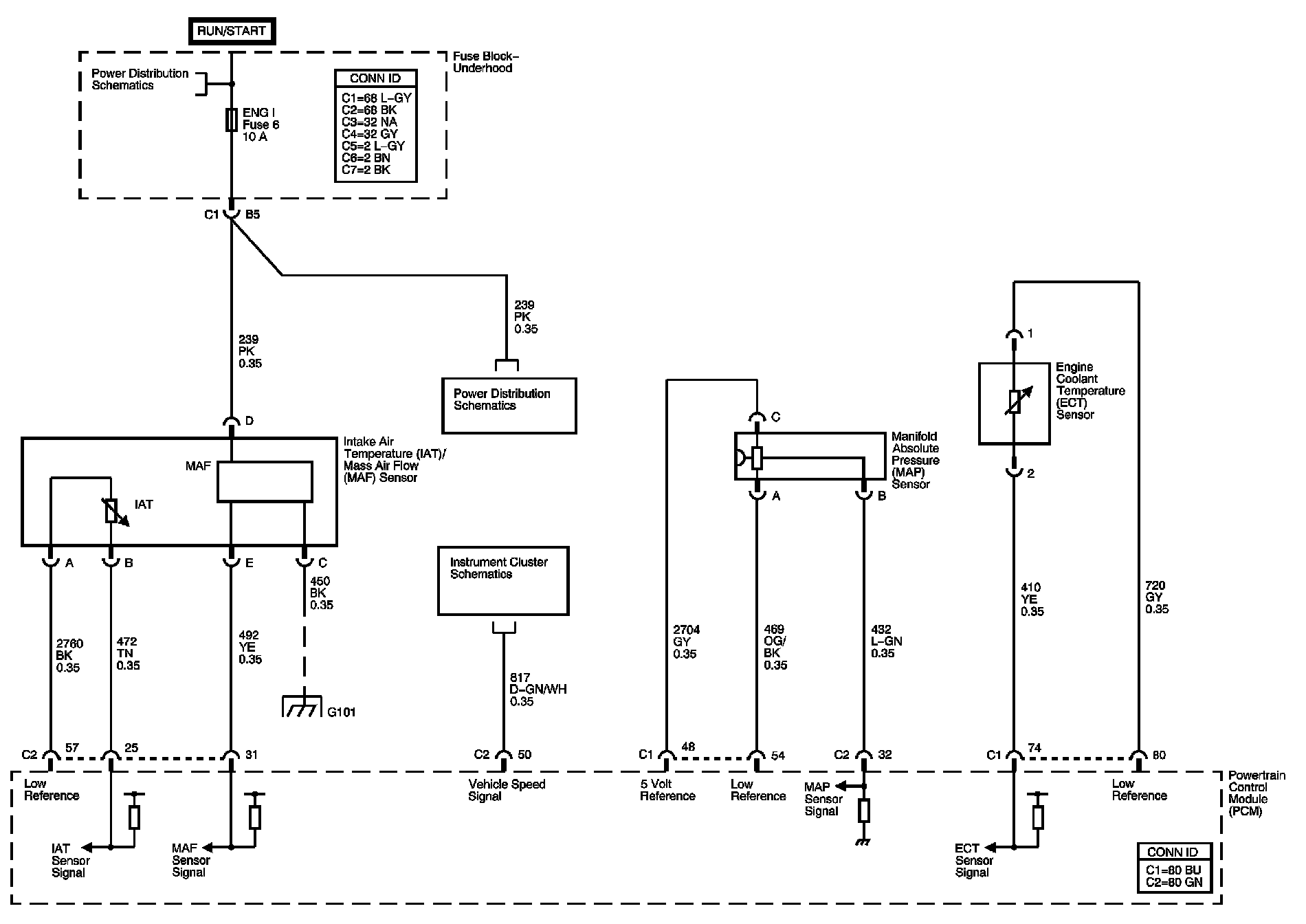

Engine Data Sensors - Pressure, Temperature and VSS:
