Engine Controls Diagram 6

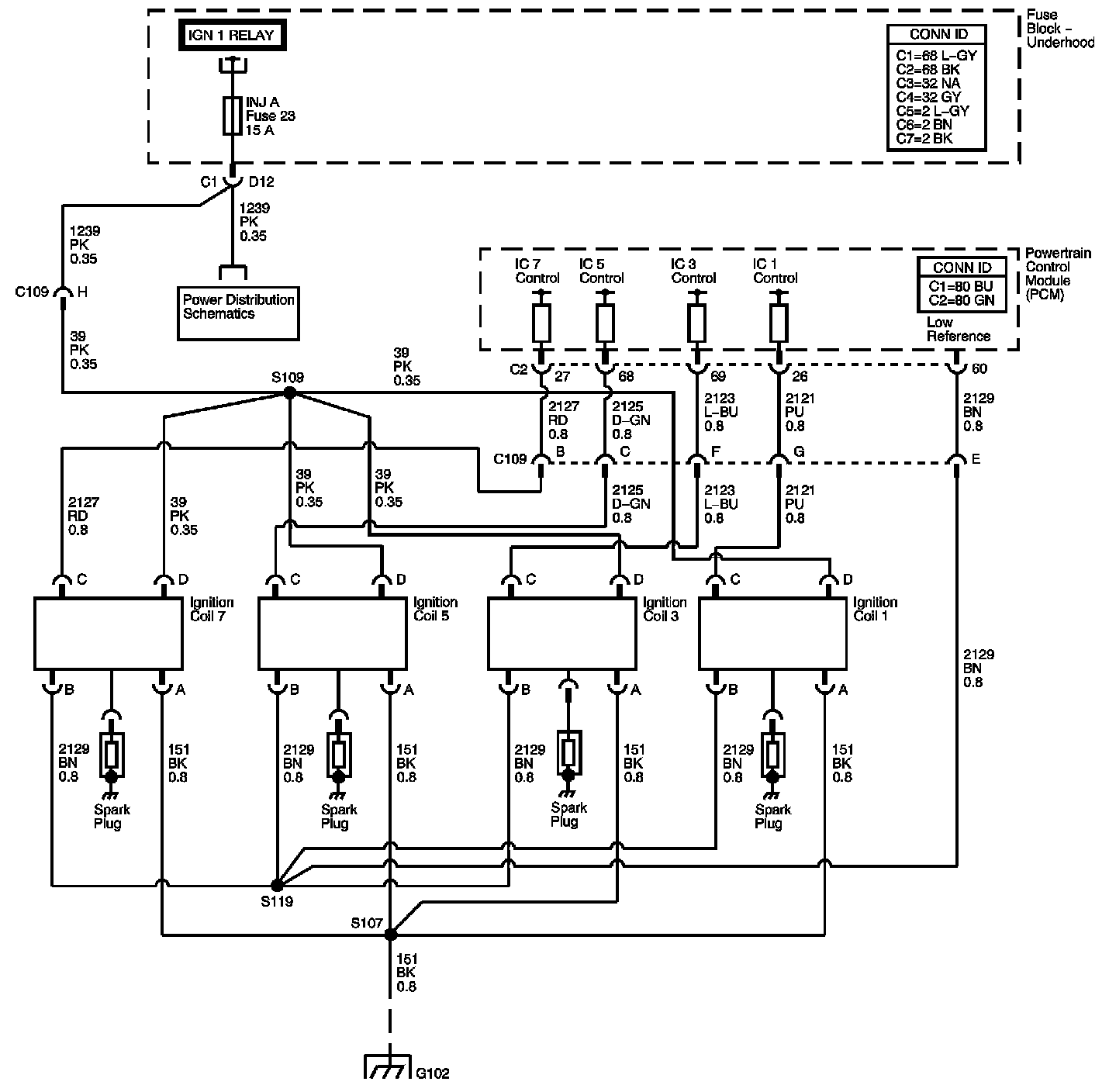

Engine Data Sensors - Ignition Controls - Ignition System Coils 1, 3, 5, 7:
