Engine Controls Diagram 7

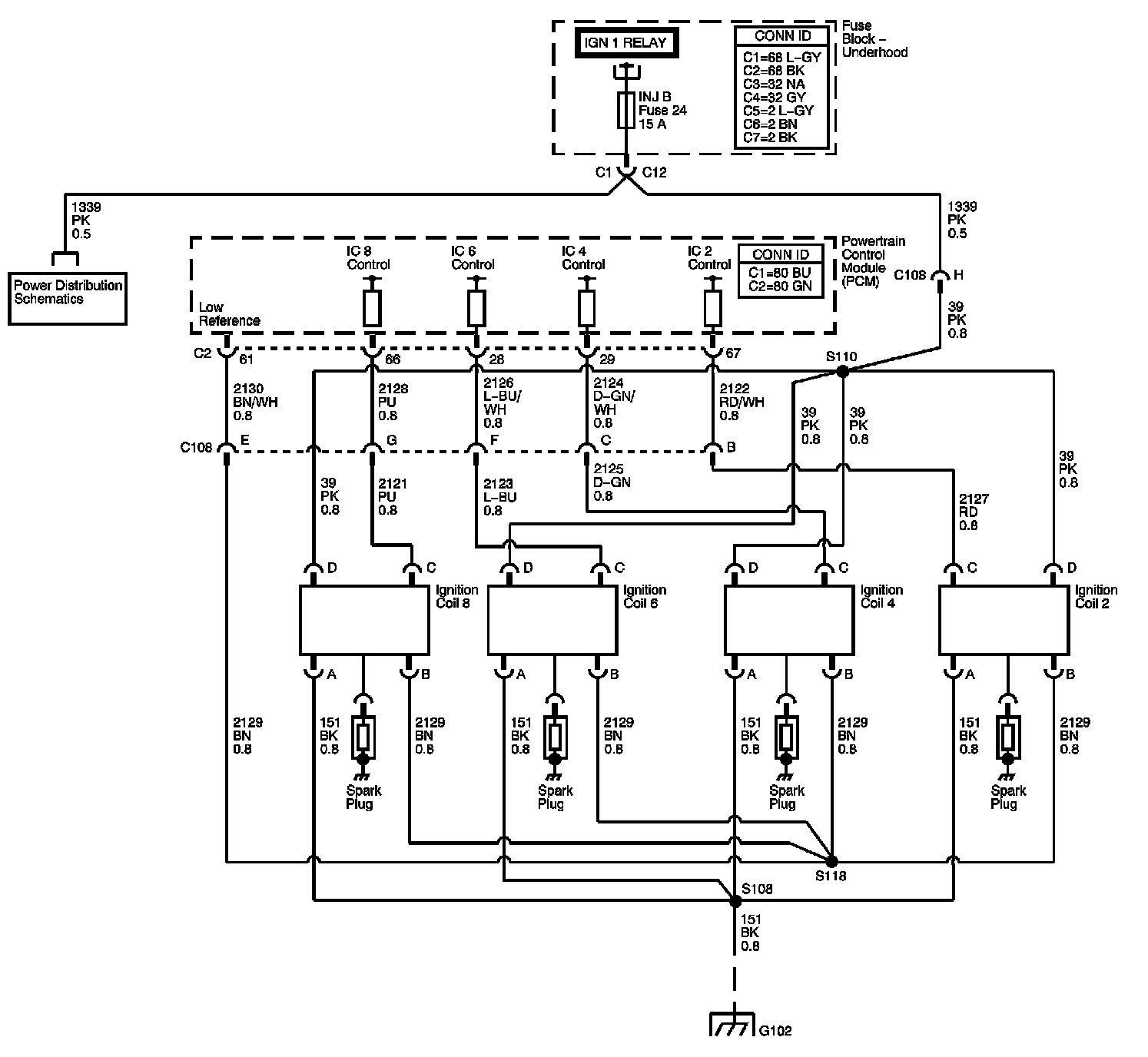

Engine Data Sensors - Ignition Controls - Ignition System Coils 2, 4, 6, 8:
