Impact Sensor: Locations

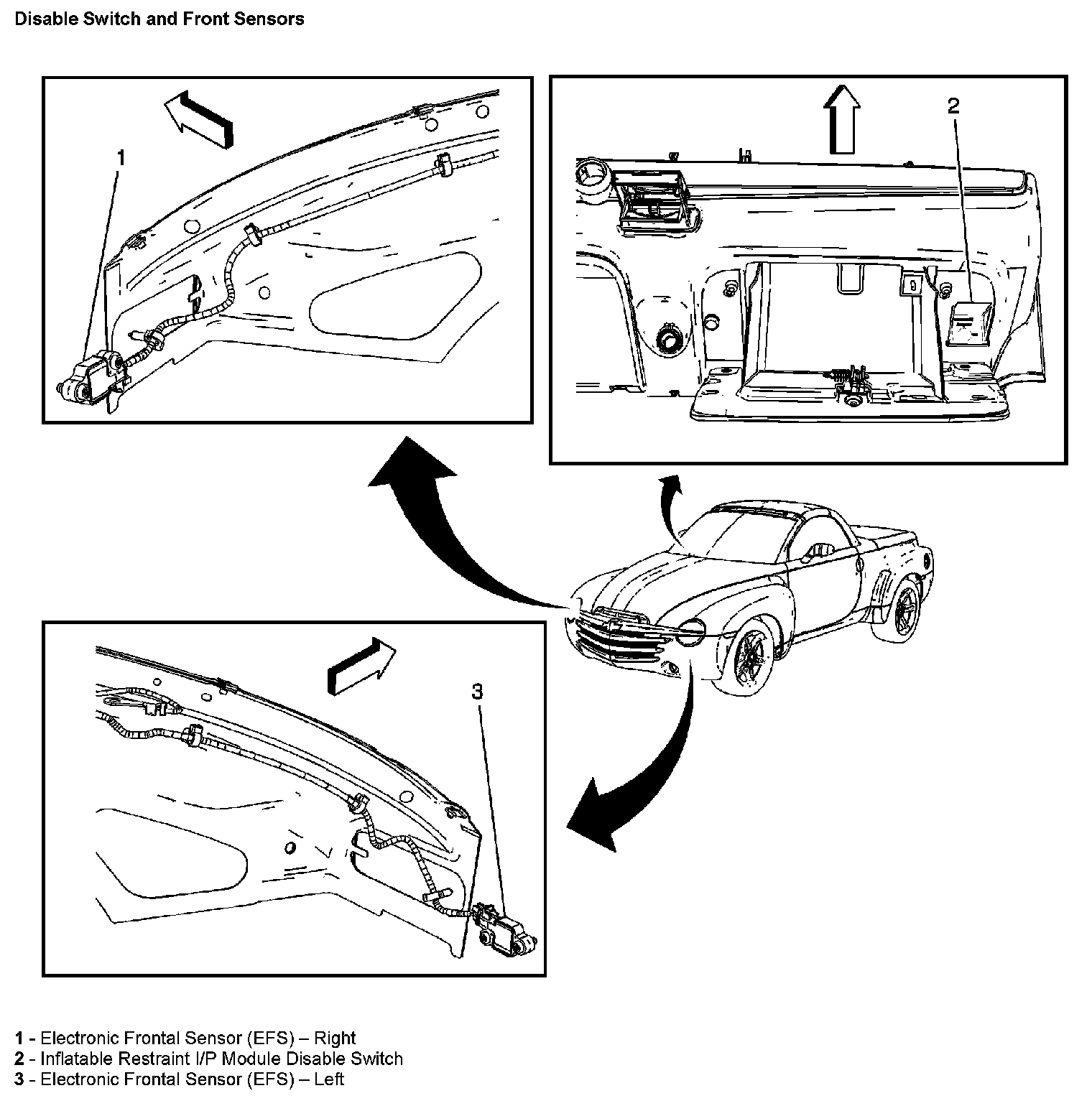

Disable Switch And Front Sensors:



Driver Seat Base Level Component Views:

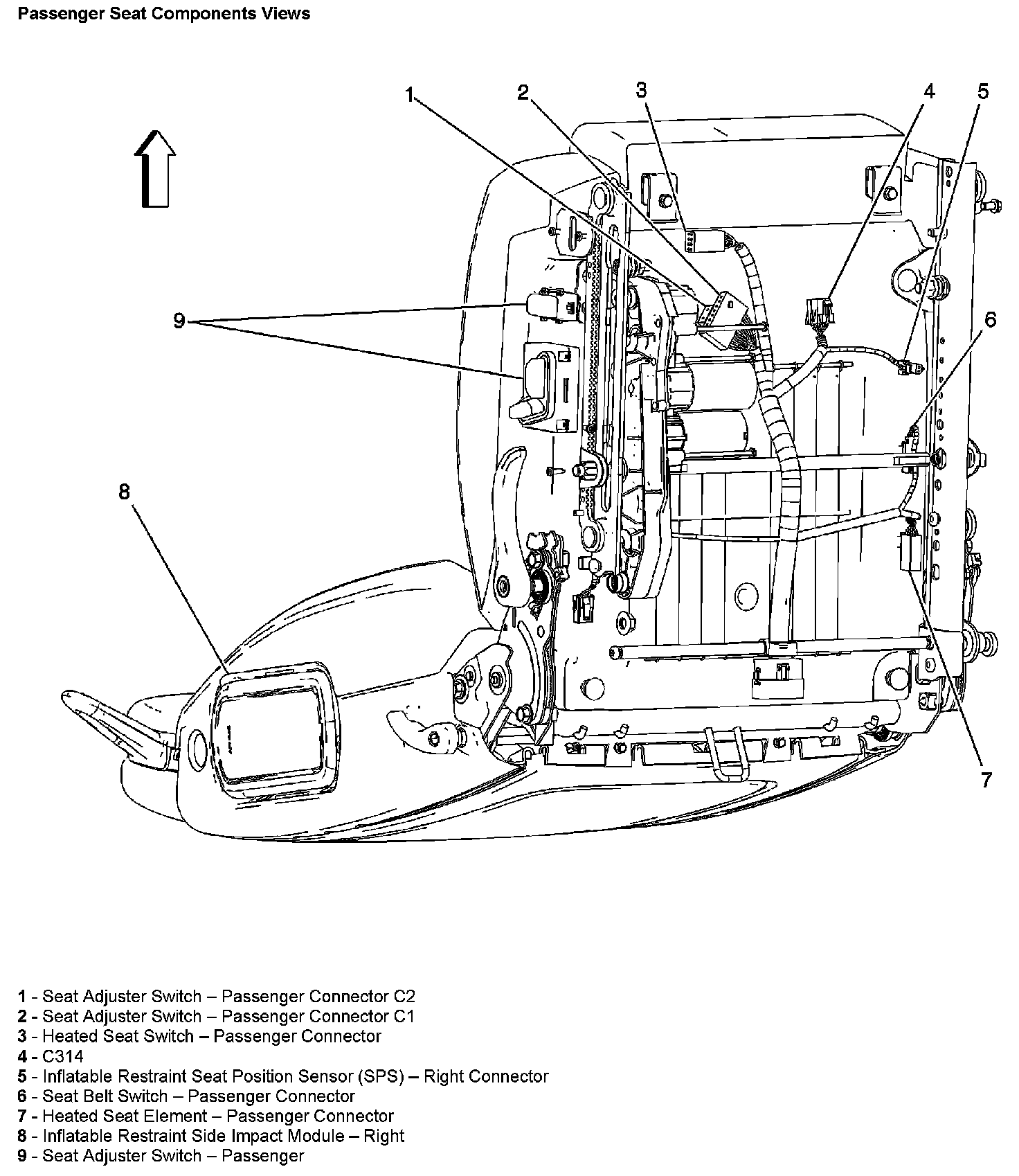

Passenger Seat Components Views:



Driver Door Components (Premium Radio):

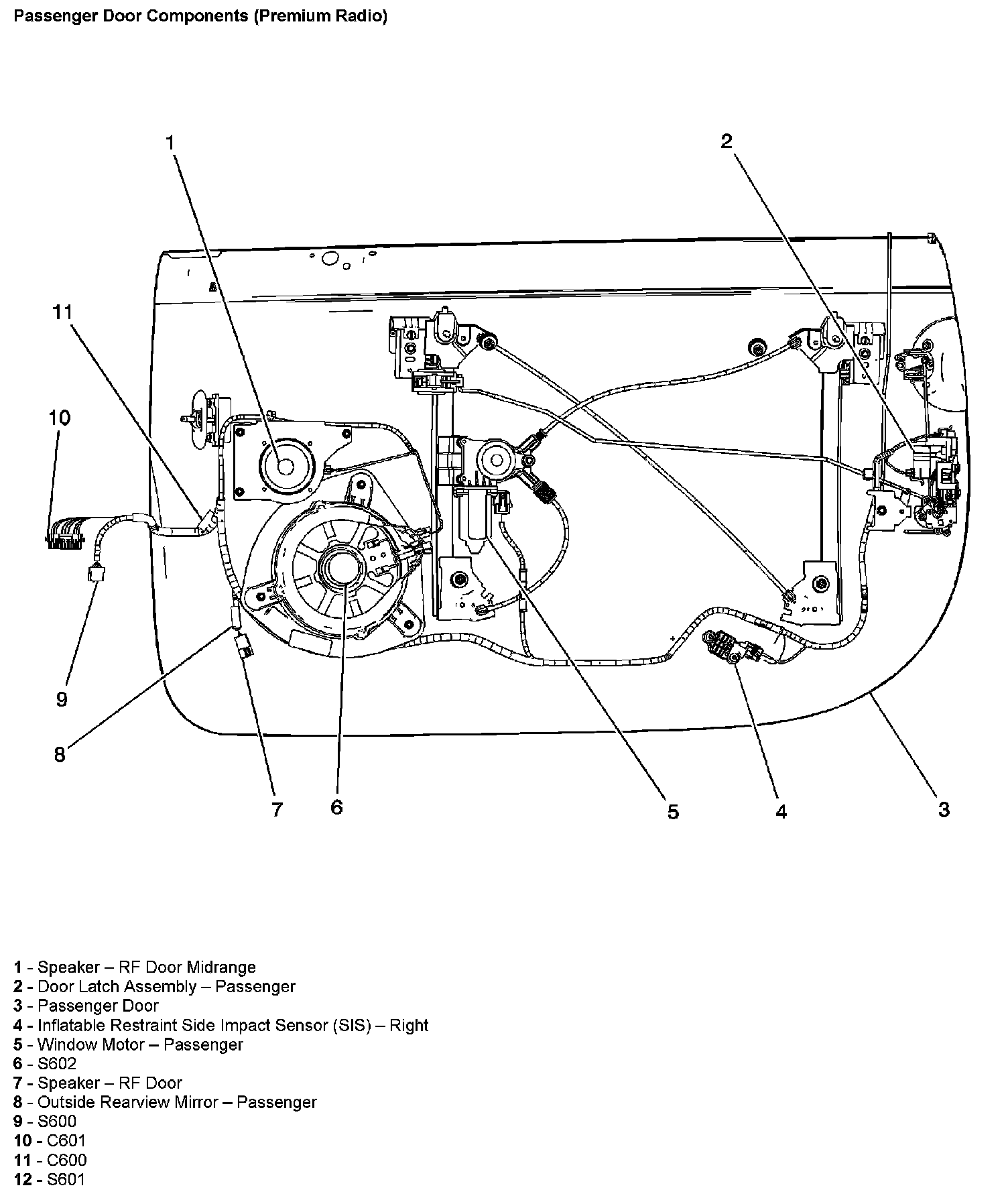

Passenger Door Components (Premium Radio):
