Assembly Replacement

BLOWER MOTOR RESISTOR ASSEMBLY REPLACEMENT

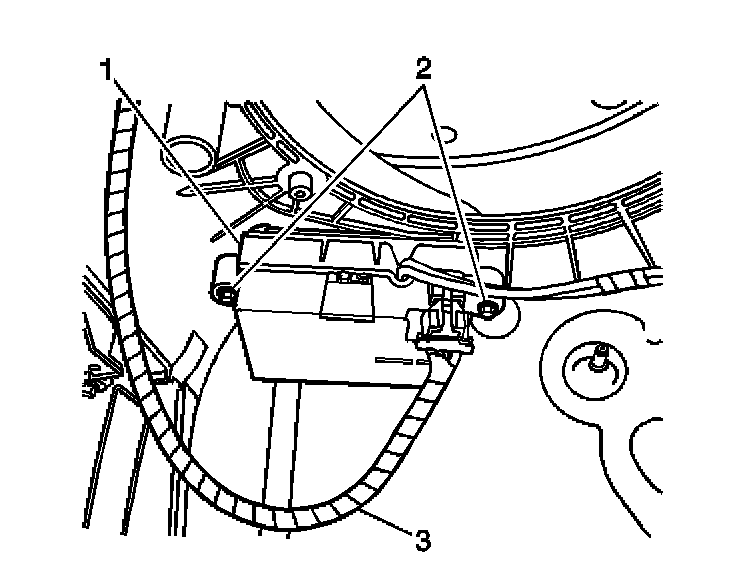

REMOVAL PROCEDURE
1. Remove the right closeout/insulator panel.







2. Disconnect the blower motor resistor electrical connector (3).
3. Remove the blower motor resistor mounting screws (2).
4. Remove the blower motor resistor (1).

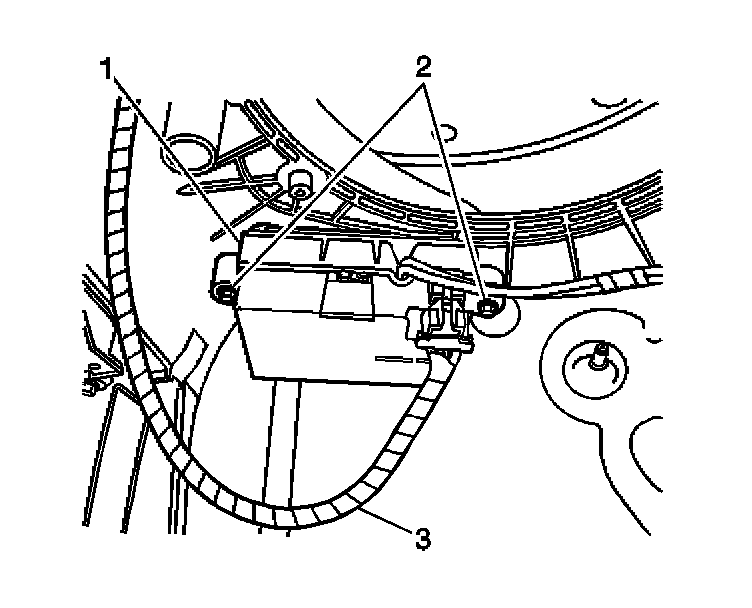

INSTALLATION PROCEDURE







1. Install the blower motor resistor (1).
2. Install the blower motor resistor mounting screws (2).

NOTE: Refer to Fastener Notice in Service Precautions.
Vehicle Damage Warnings

Tighten
Tighten the screws to .....1.9 N.m (17 lb in).

3. Connect the blower motor resistor electrical connector (3).
4. Install the right closeout/insulator panel.
