Radiator Support Shield Replacement

Radiator Support Shield Replacement

Removal Procedure




1. Raise and support the vehicle. Refer to Vehicle Lifting.

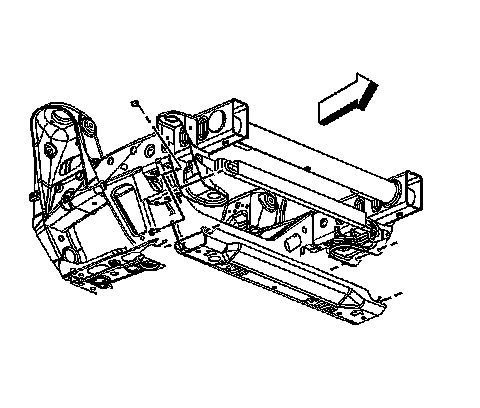

2. Remove the radiator support shield mounting nuts and bolts.
3. Remove the radiator support shield.

Installation Procedure




1. Remove the radiator support shield.

Notice: Refer to Fastener Notice in Service Precautions.

2. Remove the radiator support shield mounting nuts and bolts.

Tighten the radiator support shield mounting nuts to 17 N.m (13 lb ft).

3. Lower the vehicle.
