Compact Disc Player (CD)

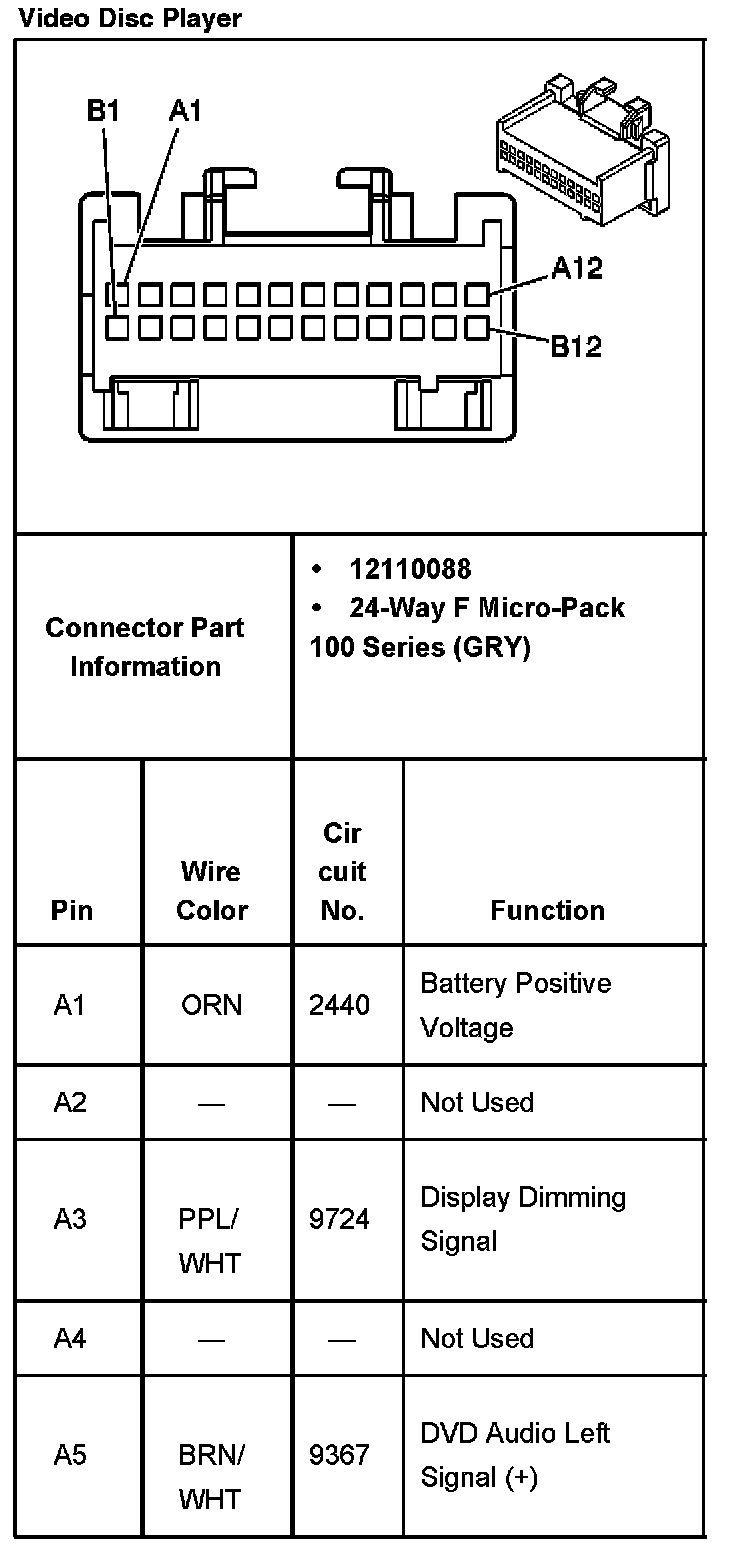

Video Disc Player Part 1:

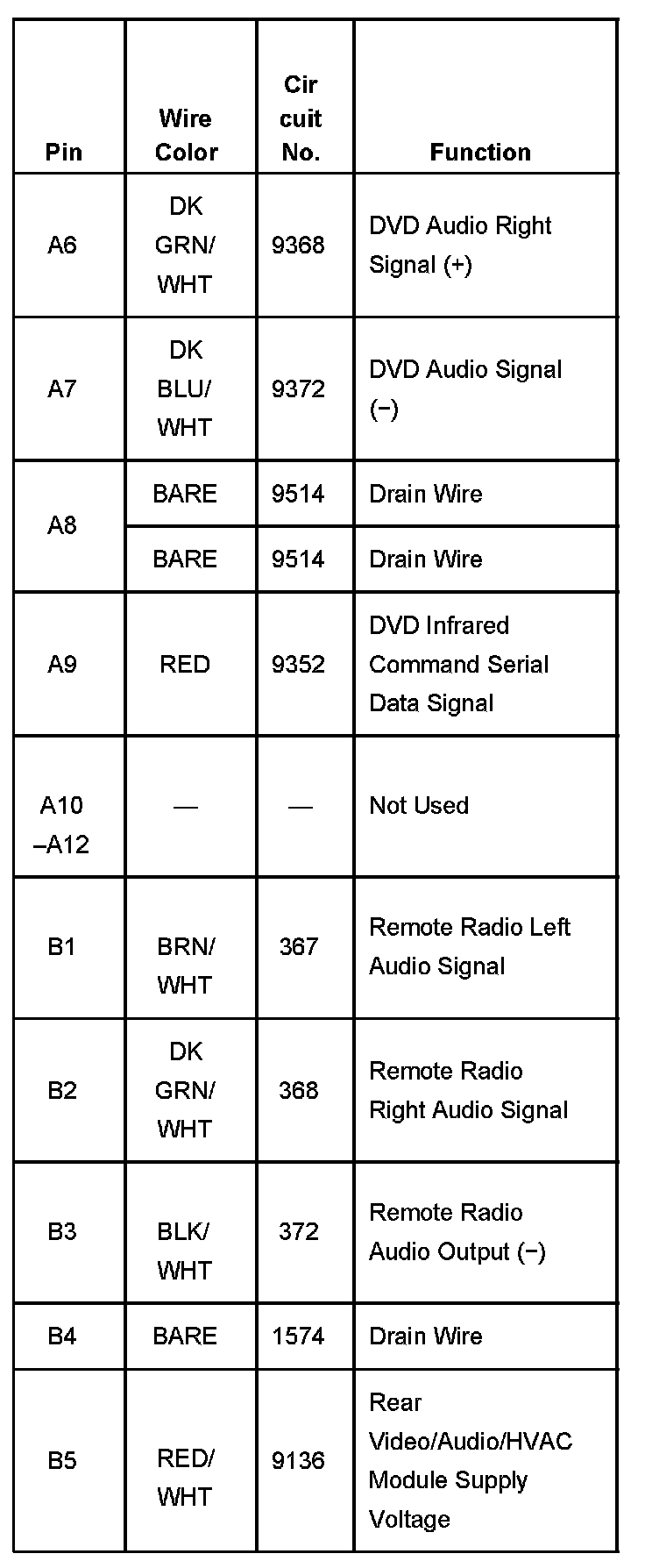

Video Disc Player Part 2:



Video Disc Player Part 3:
