Entertainment Systems

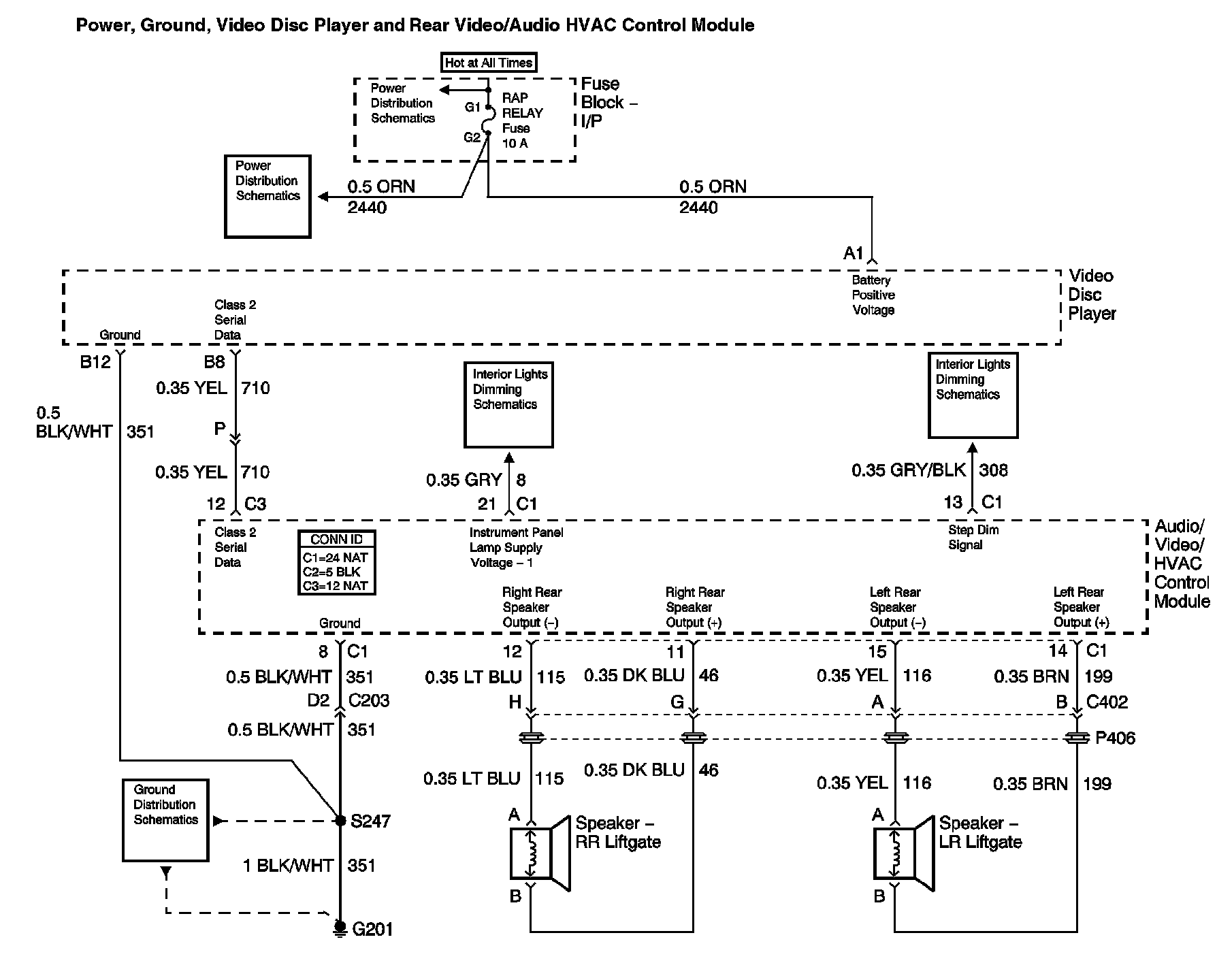

Video System Diagram 1:

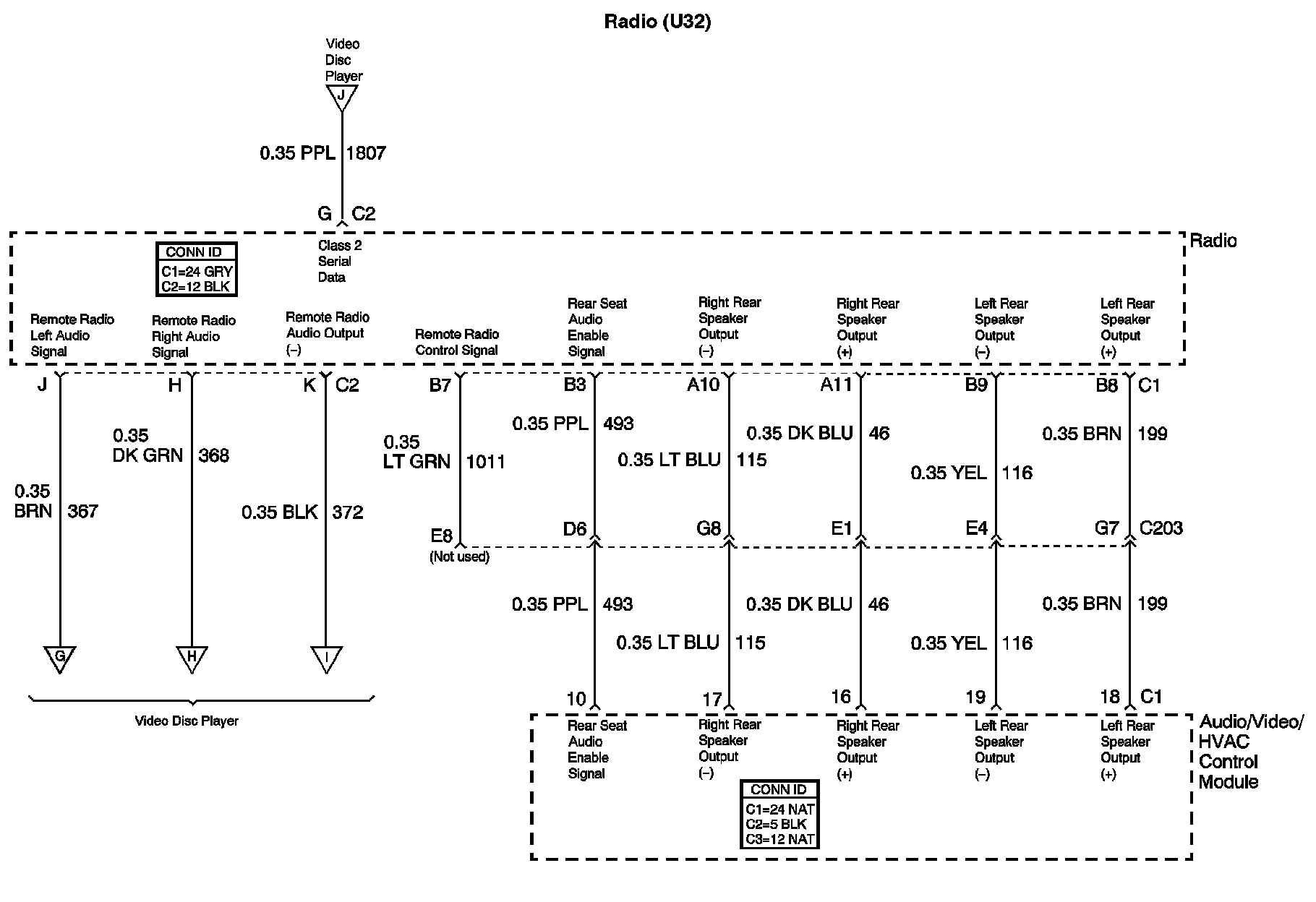

Video System Diagram 2 (1 Of 2):

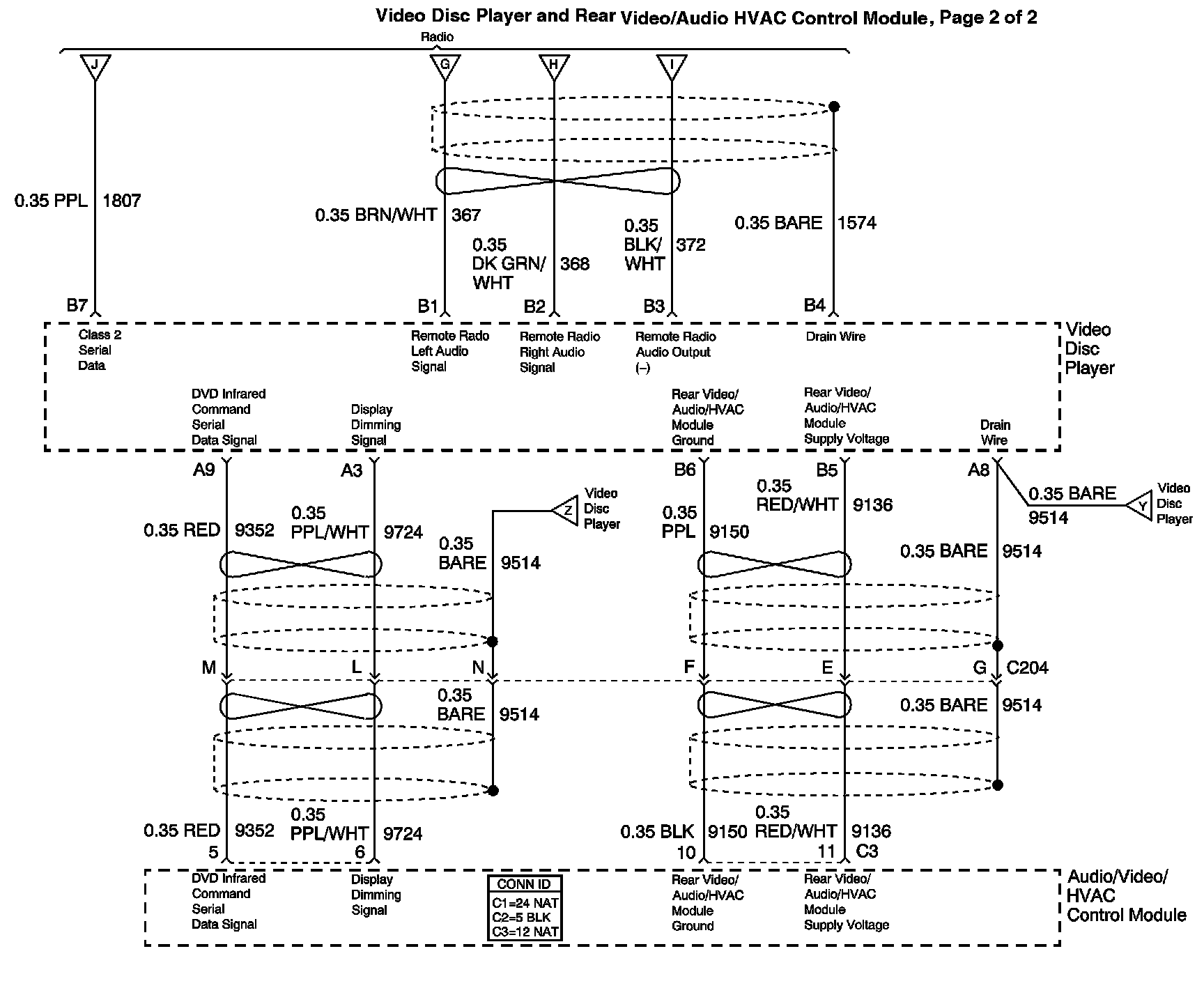

Video System Diagram 2 (2 Of 2):

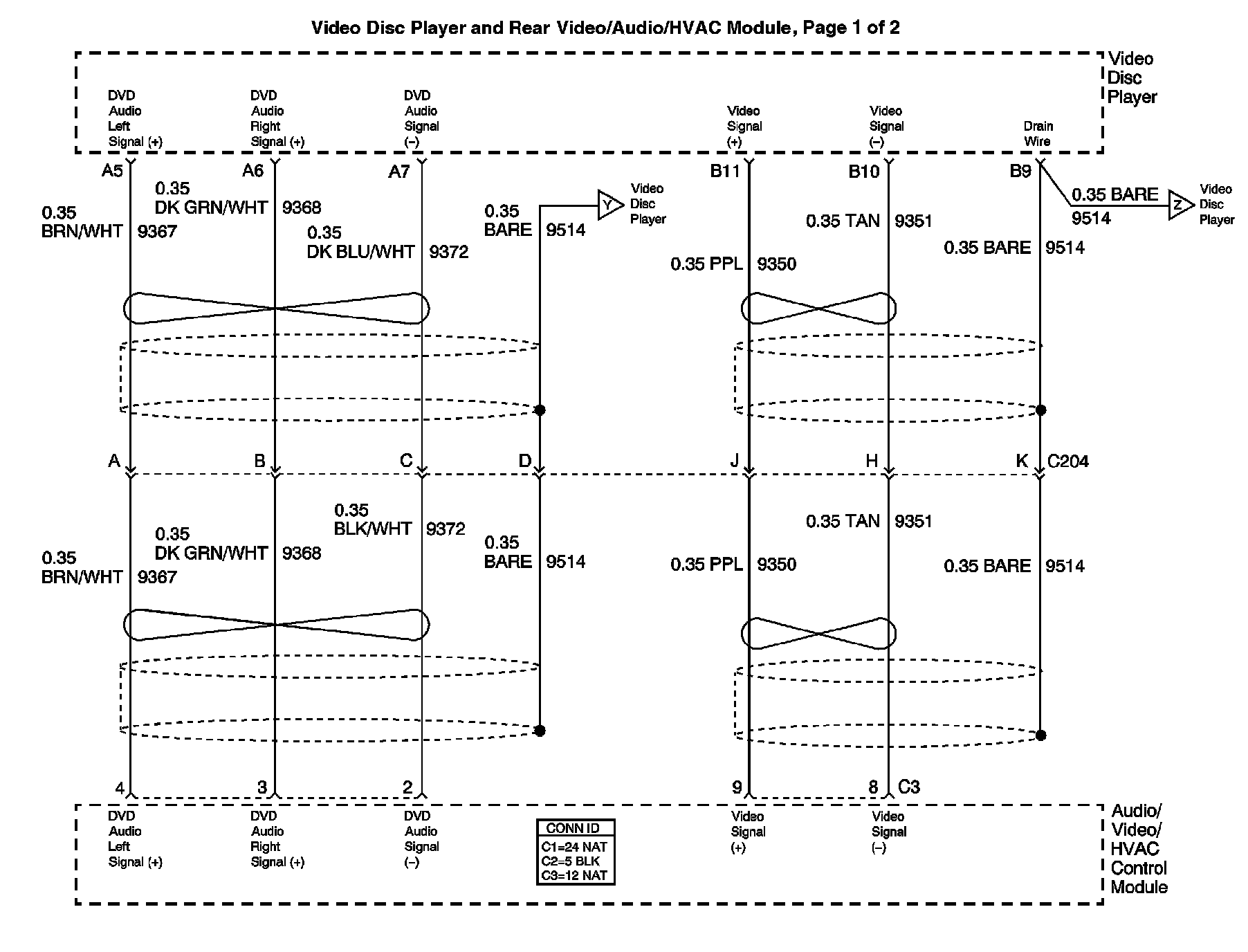

Video System Diagram 3:
