Blower Motor: Locations

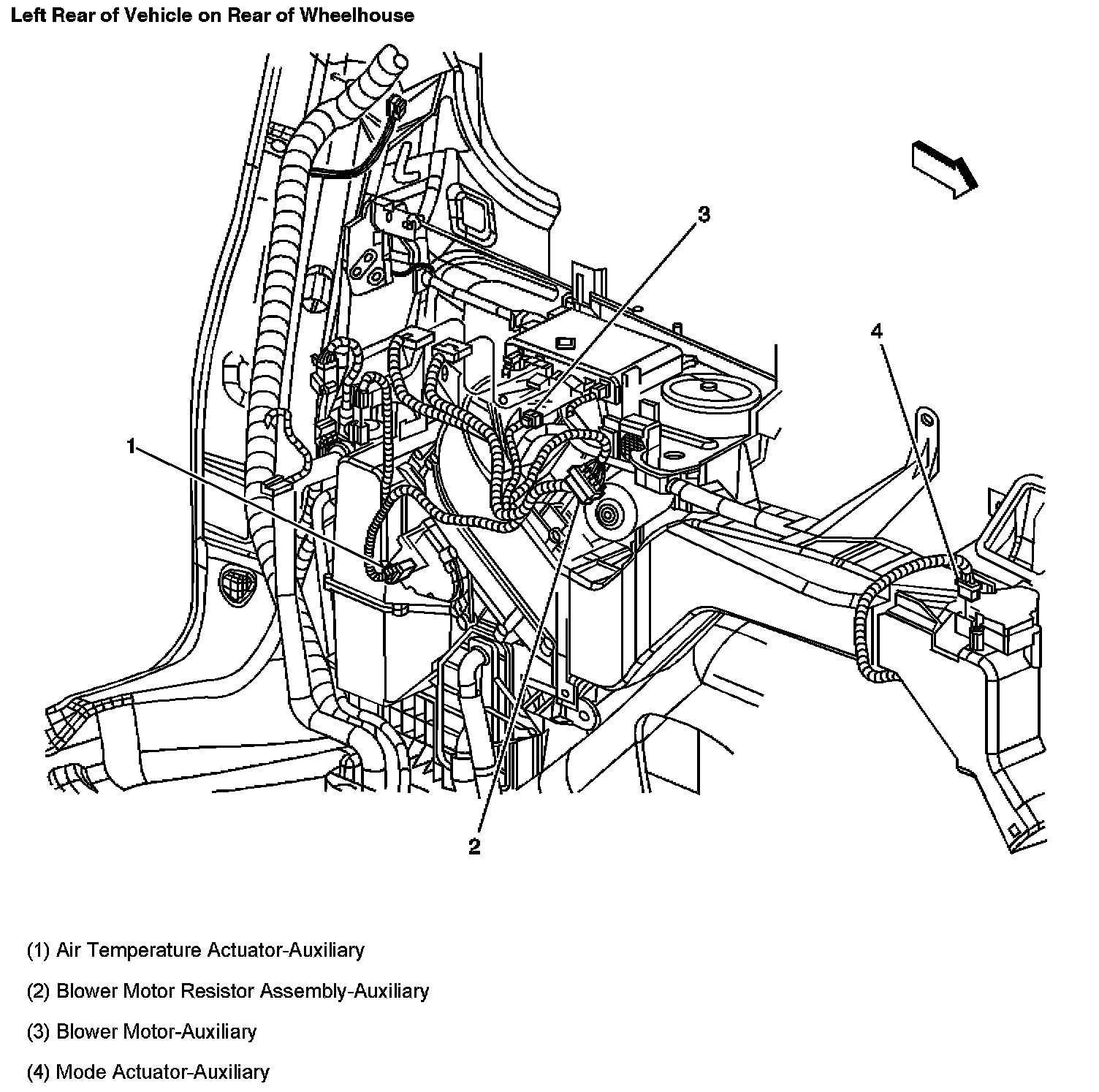

Left Rear of Vehicle on Rear of Wheelhouse:

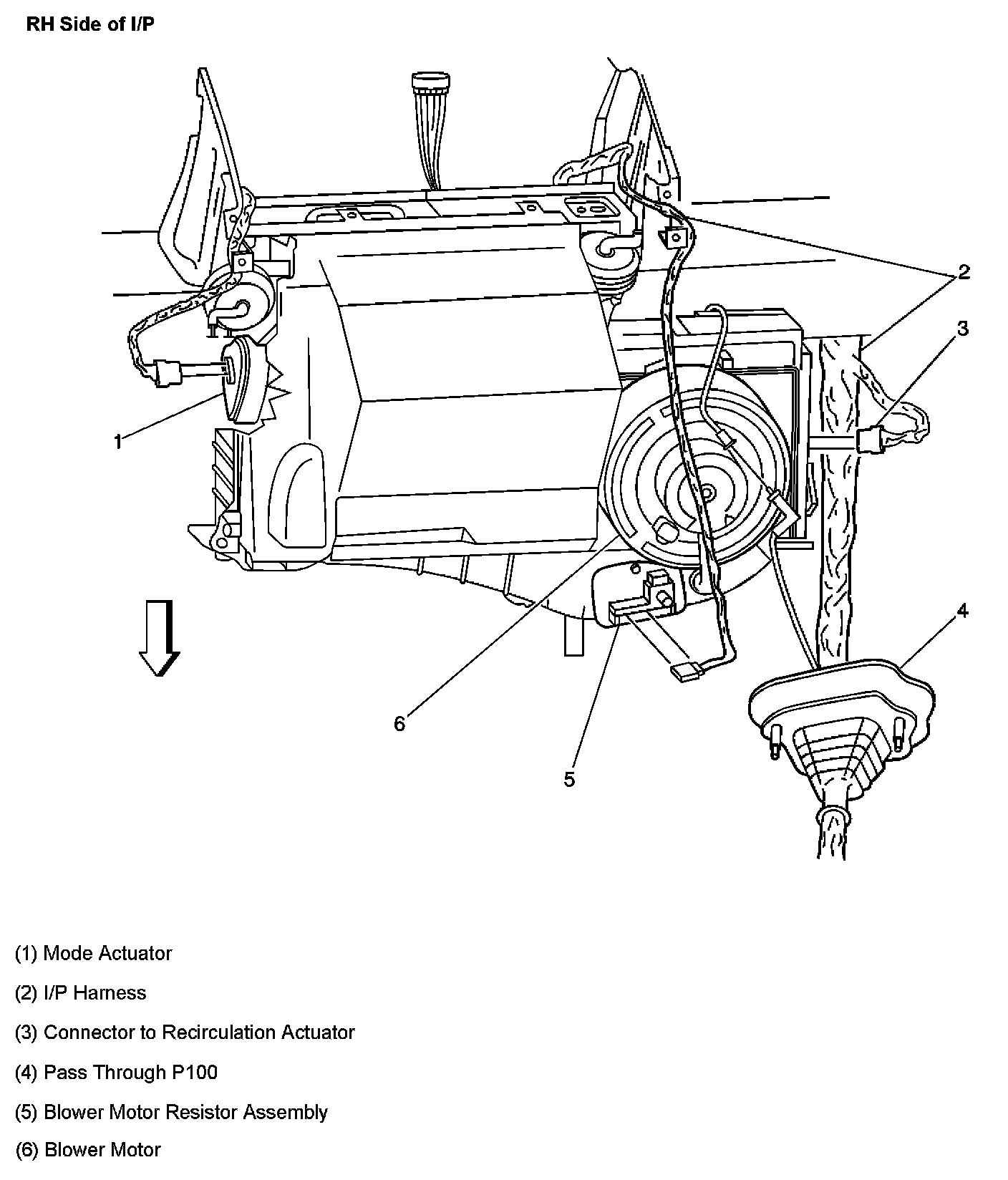

RH Side of I/P:

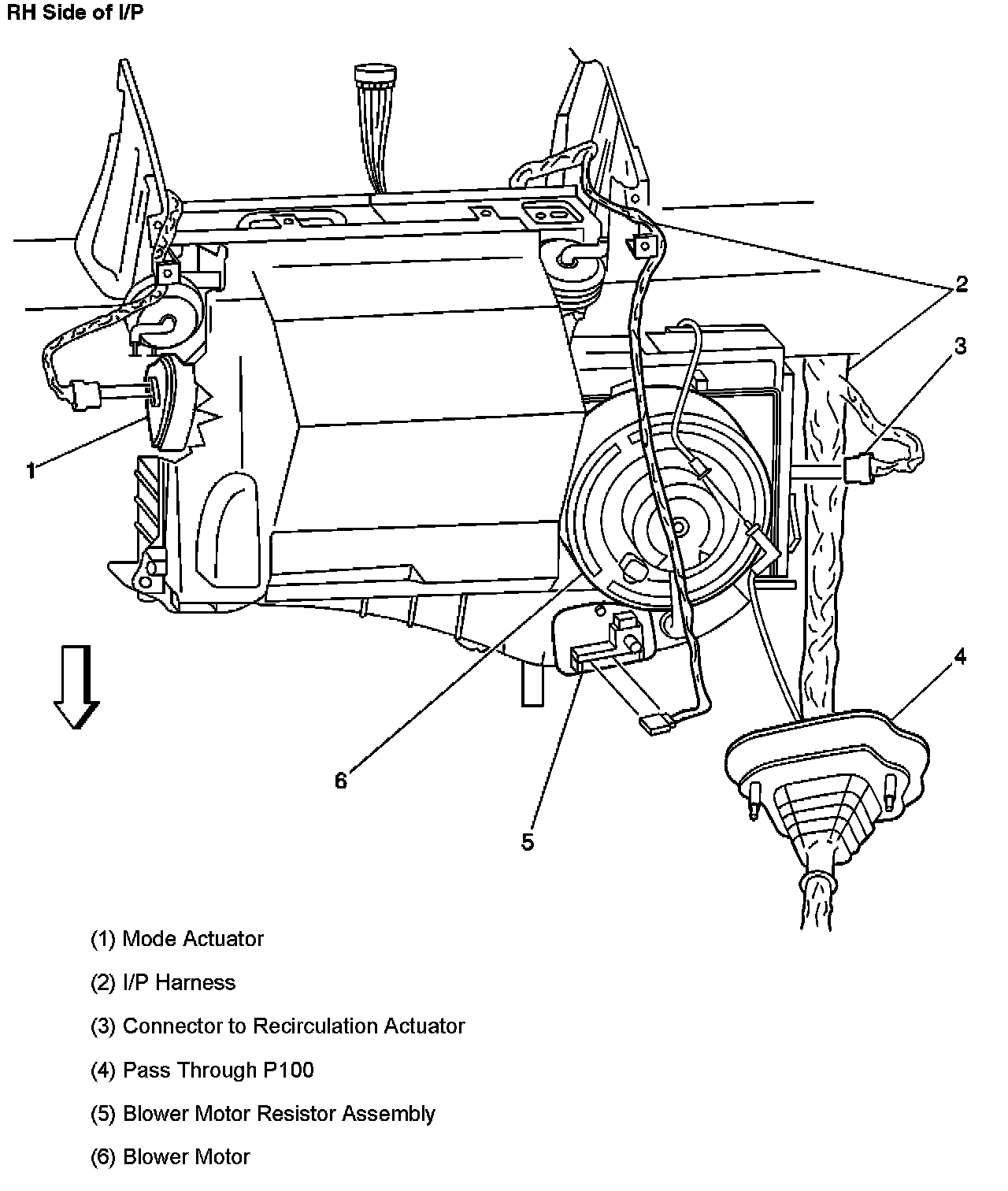

RH Side Of I/P:



Behind Rear Left Wheelhouse:
