Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Master Connector List
Master Connector List

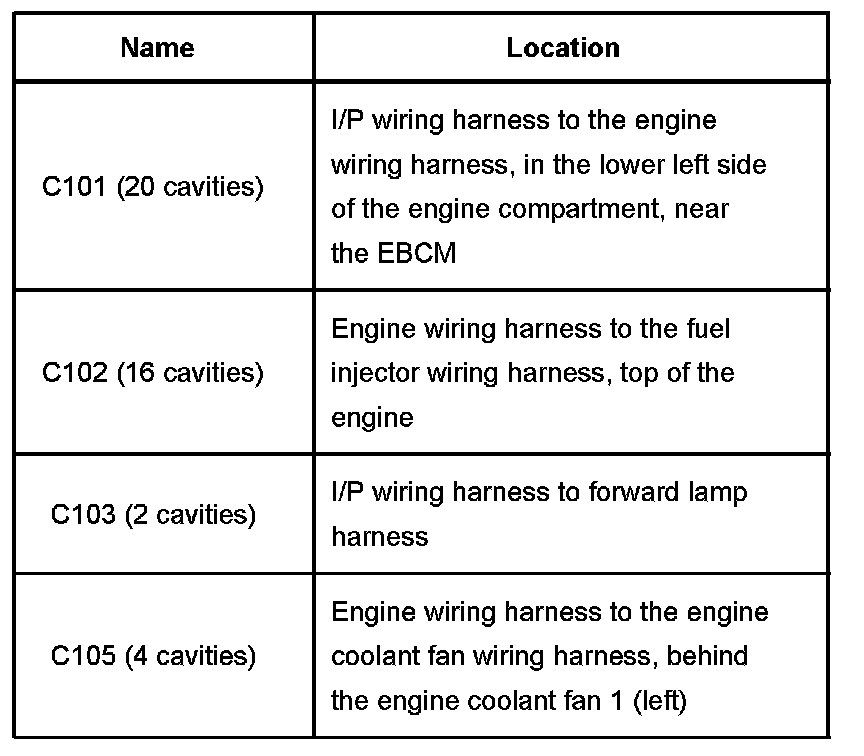

C101 - C105:

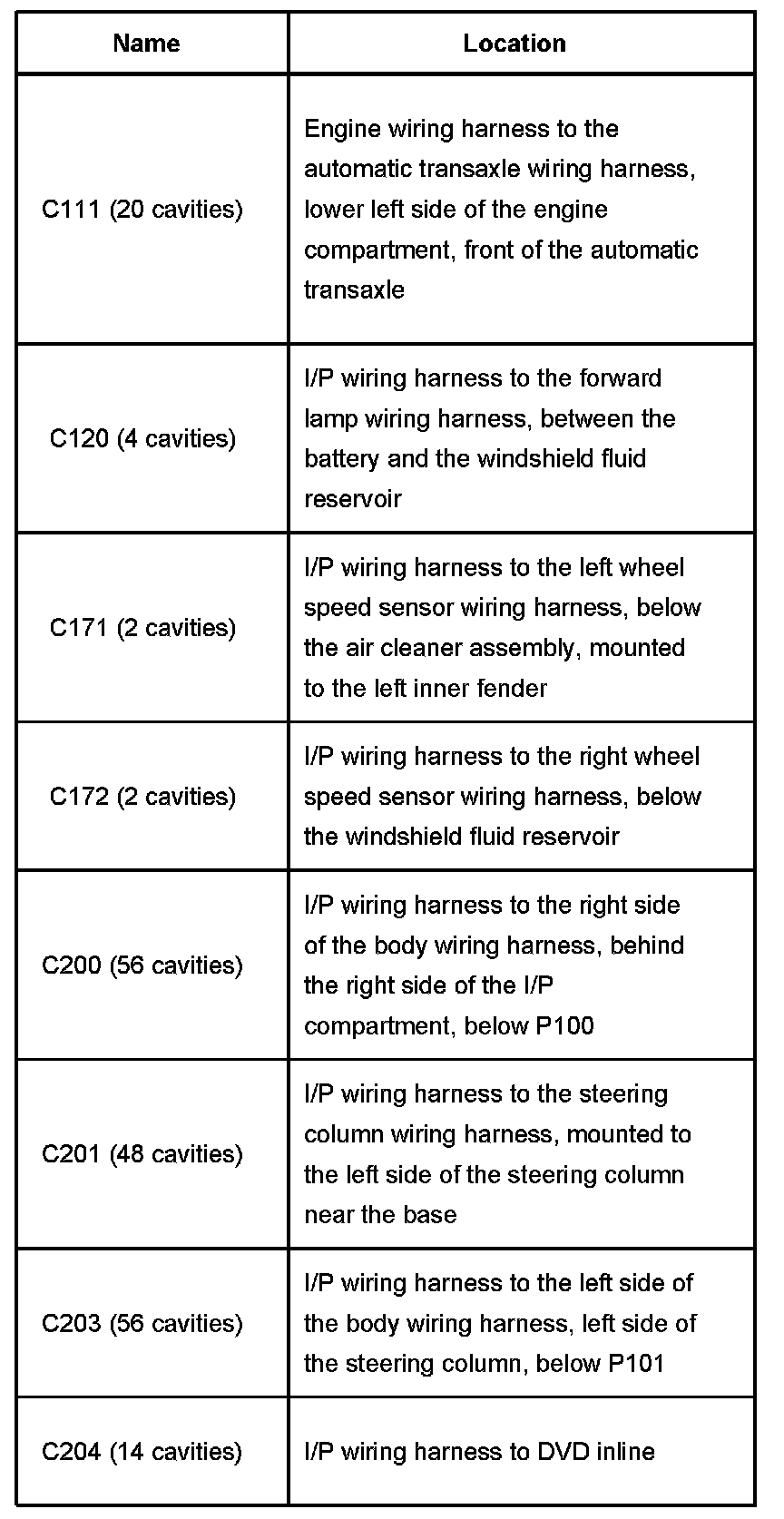

C111 - C204:

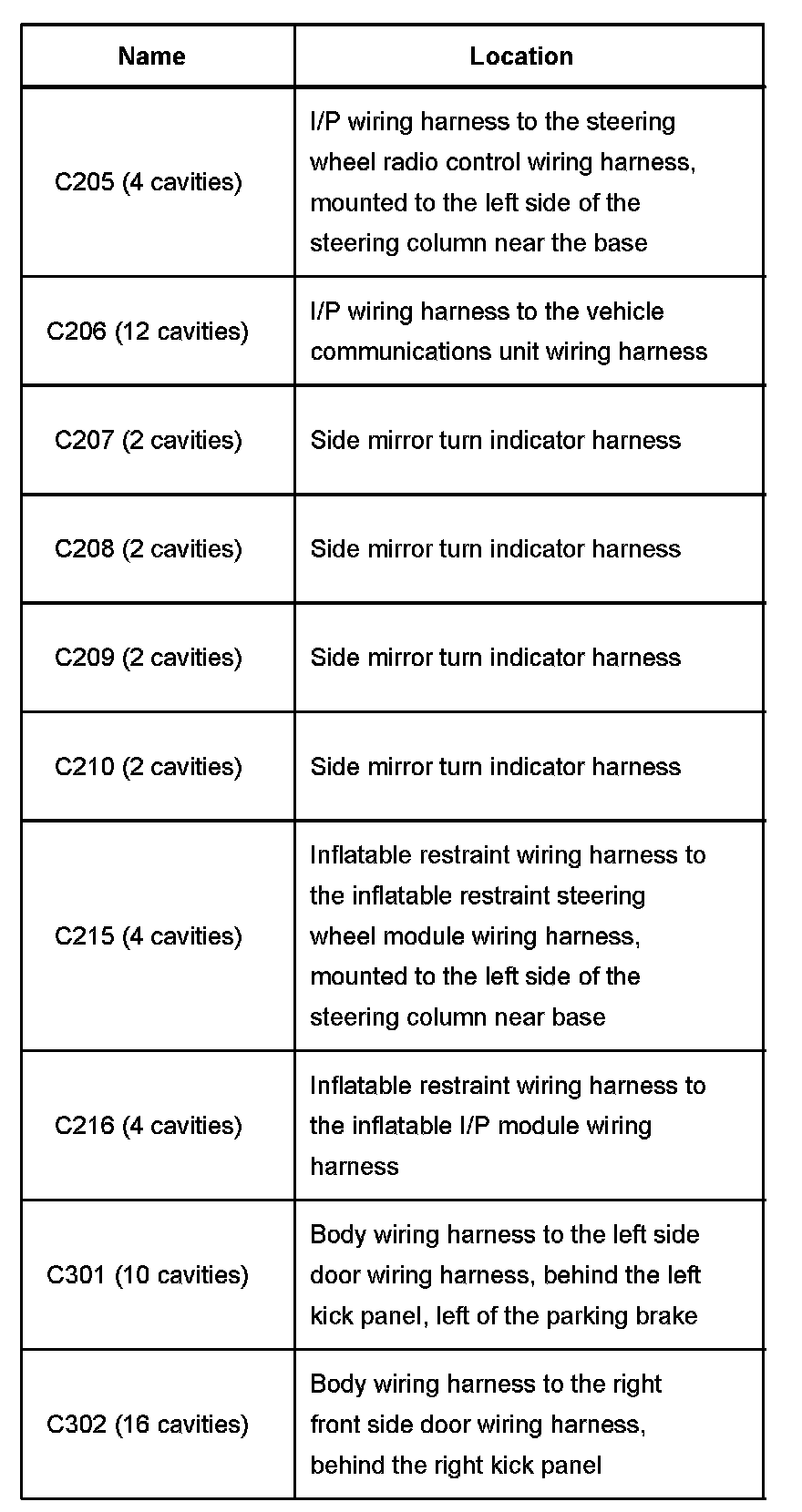

C205 - C302:

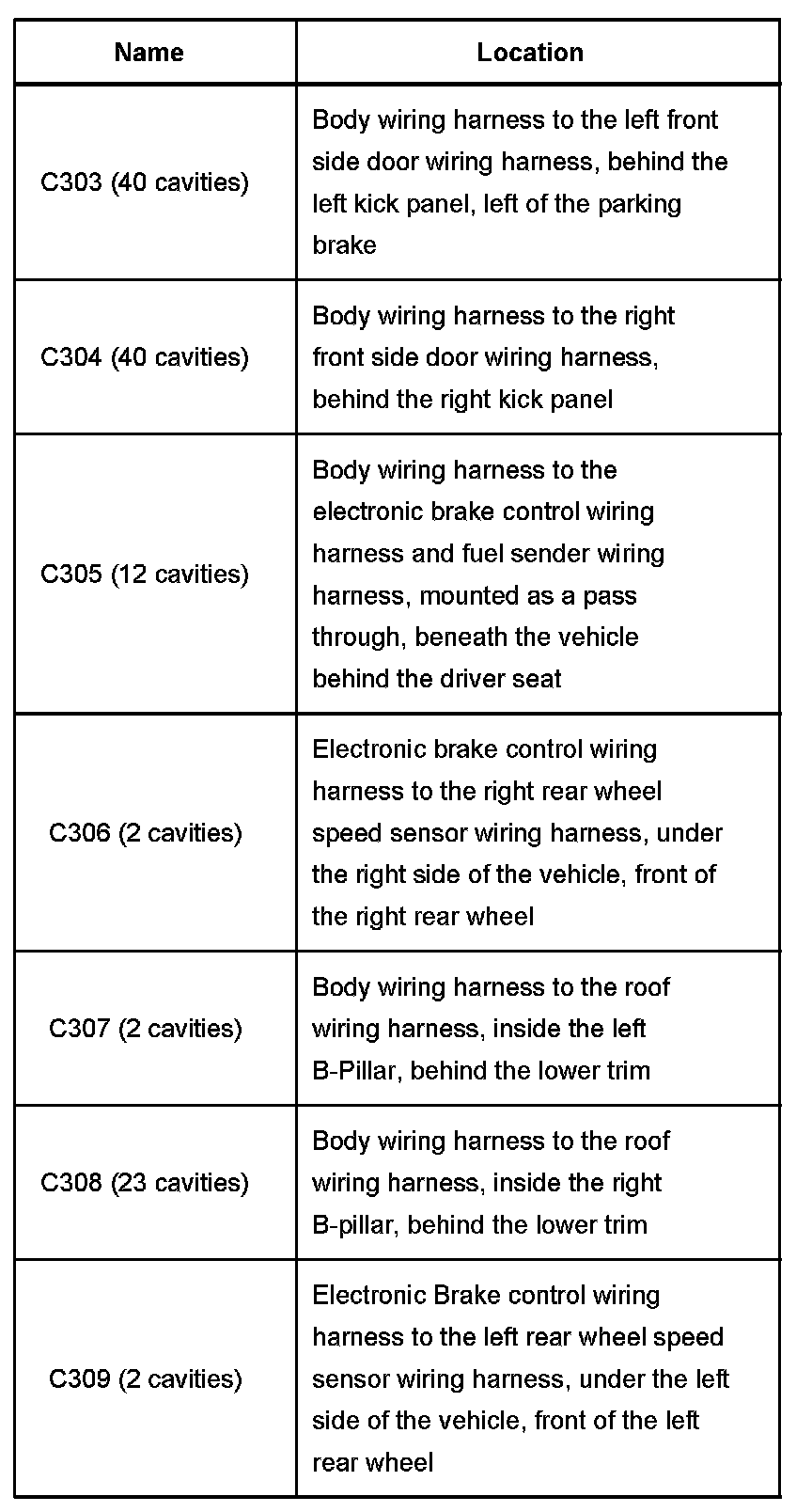

C303 - C309:
C313 - C330:

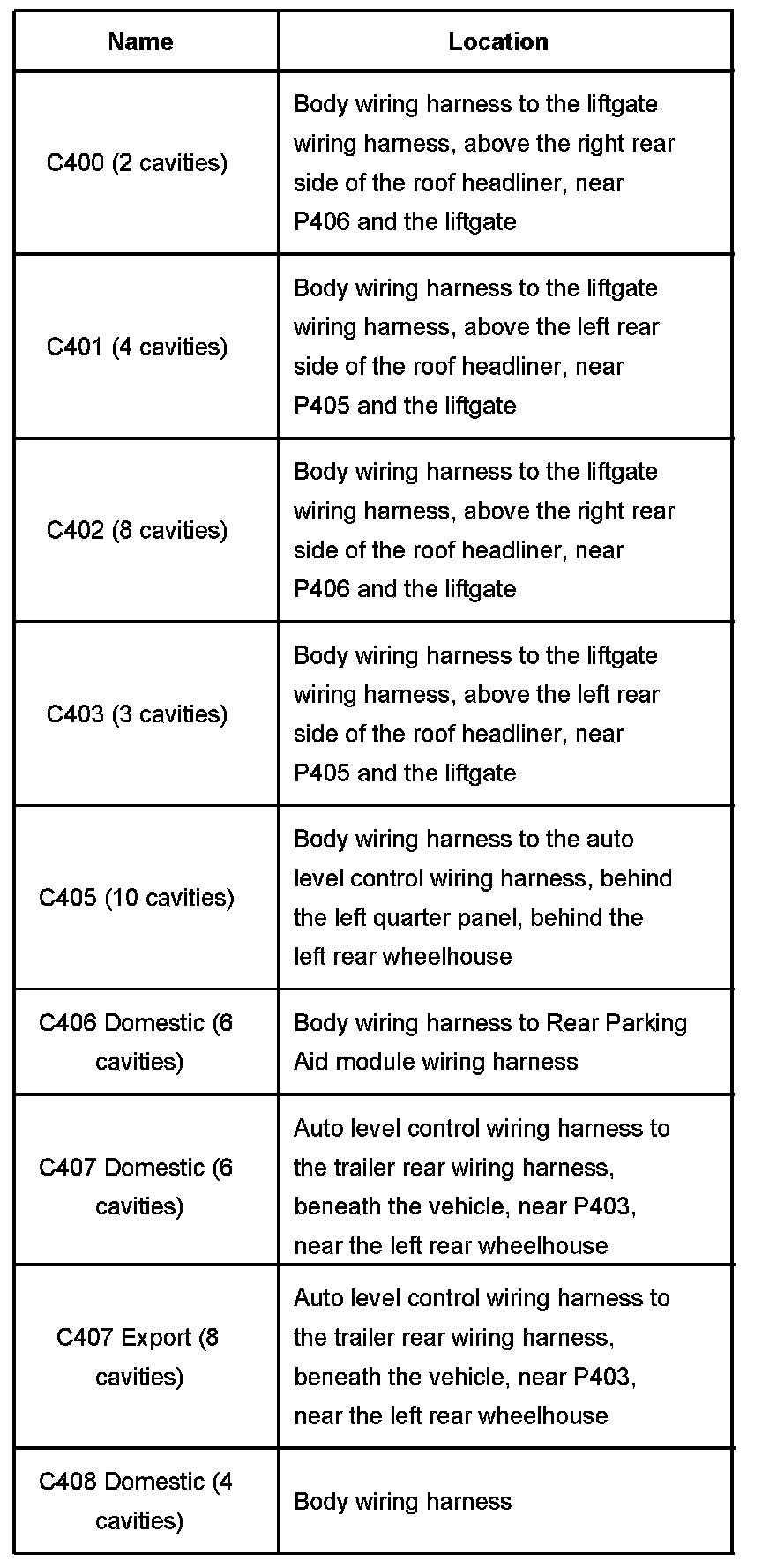

C400 - C408:
