Locations
>>
Harness Locations
>>
Fuel Tank View
Fuel Tank View

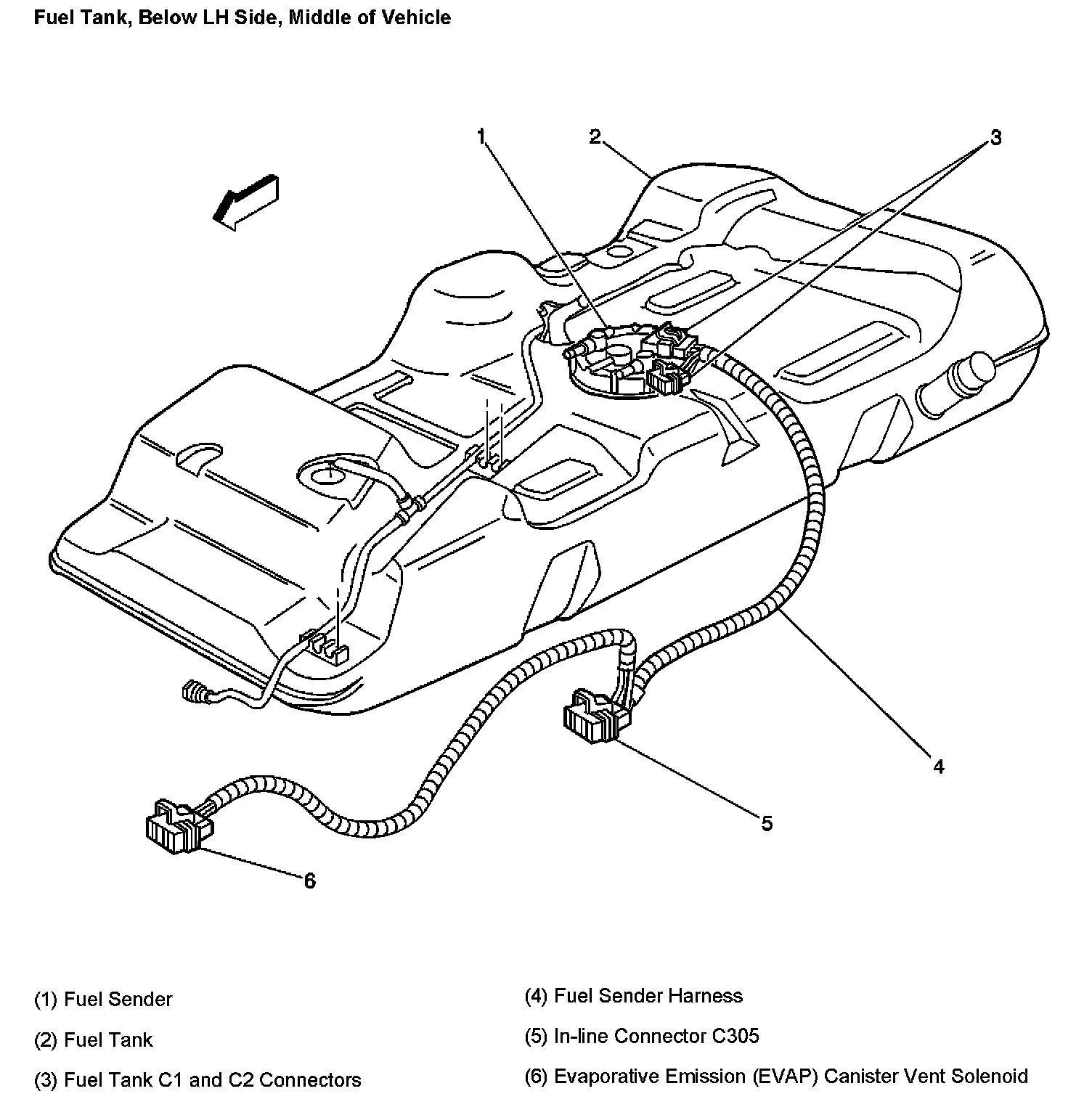

Fuel Tank, Below LH Side, Middle Of Vehicle:
