Home >> Chevrolet >> 2003 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Parking Assist Control Module >> Locations

Parking Assist Control Module: Locations

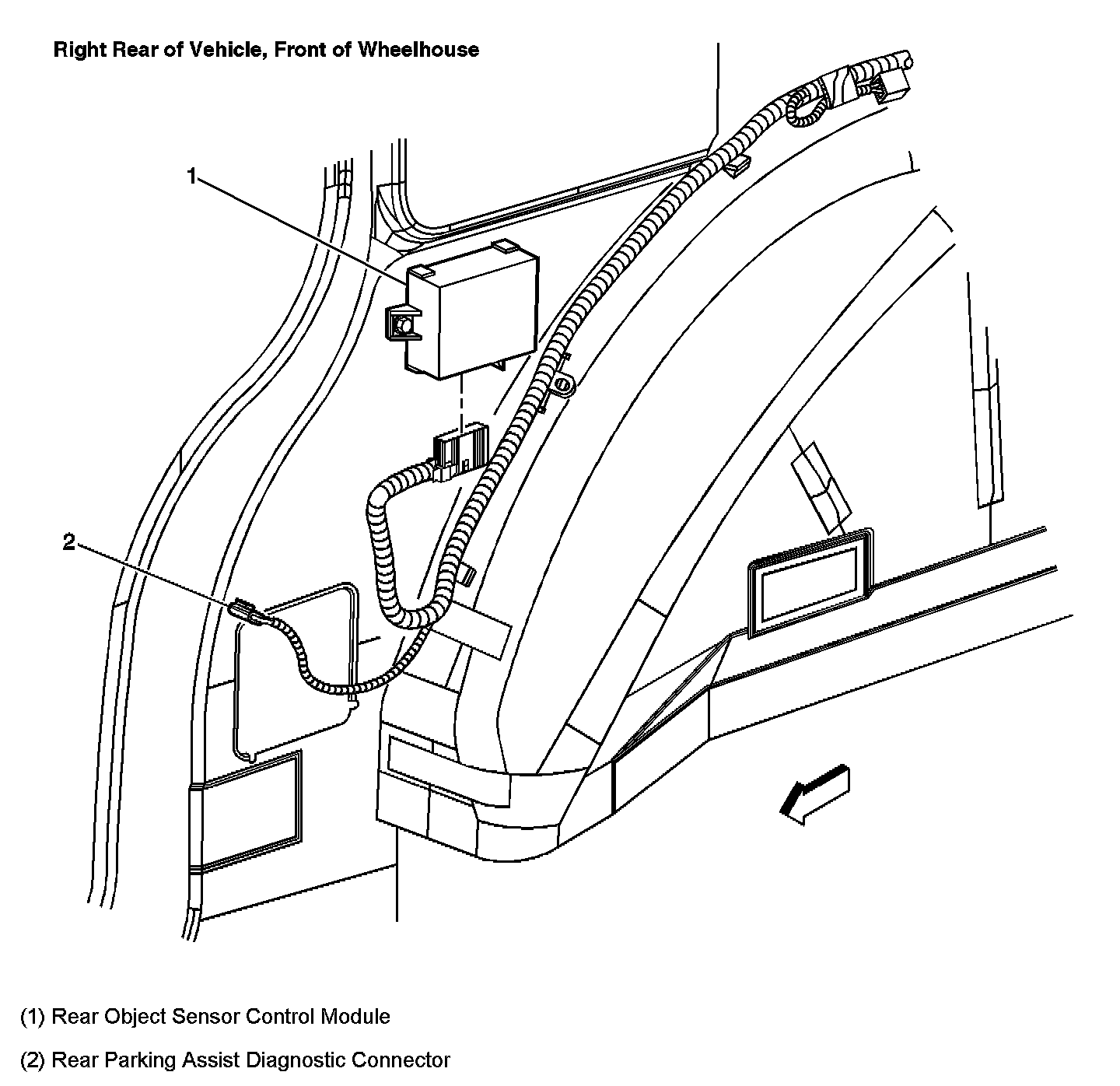

Right Rear Of Vehicle, Front Of Wheelhouse:
