Coolant Temperature Sensor/Switch (For Computer): Locations

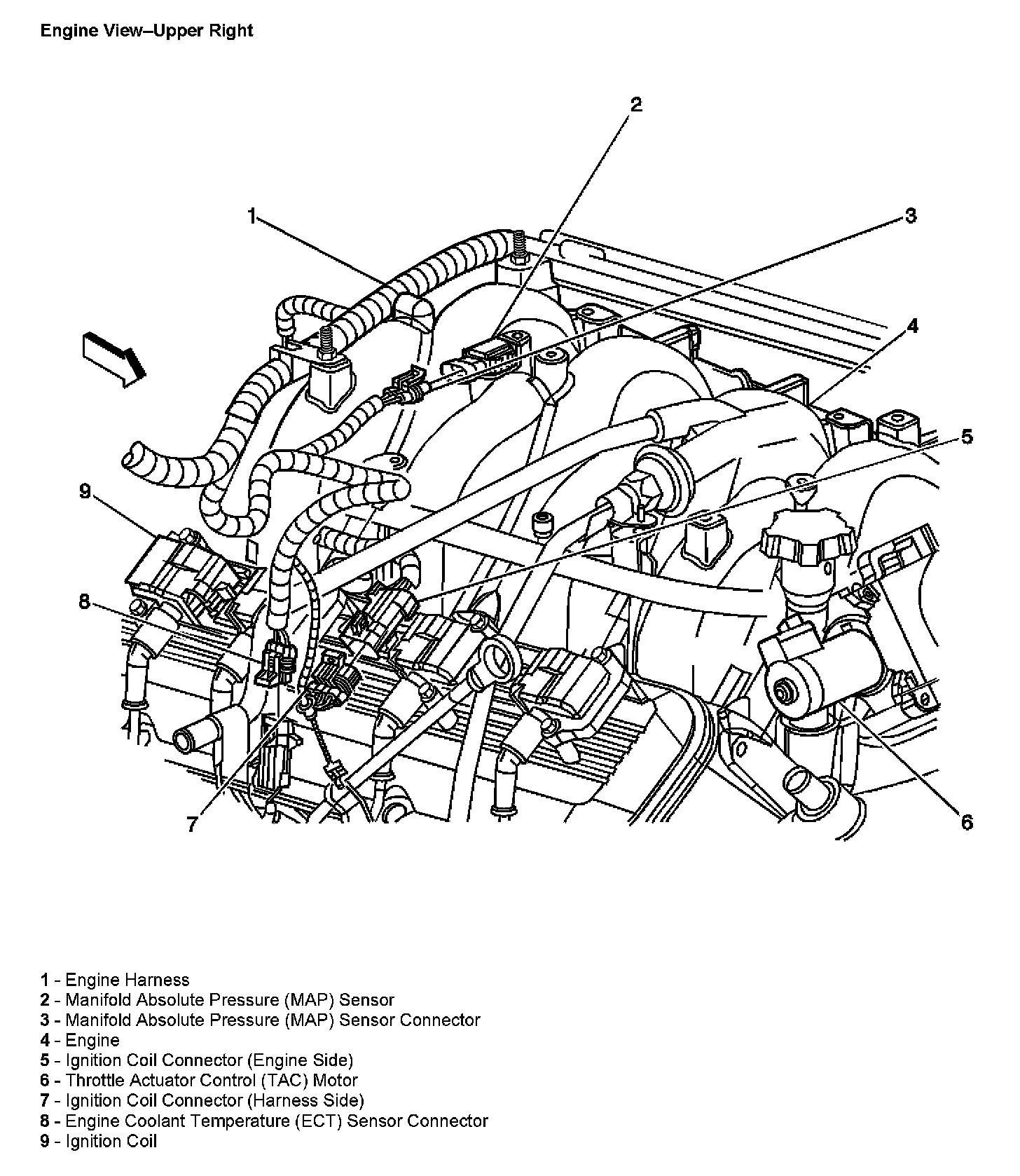

Engine View - Upper Right:

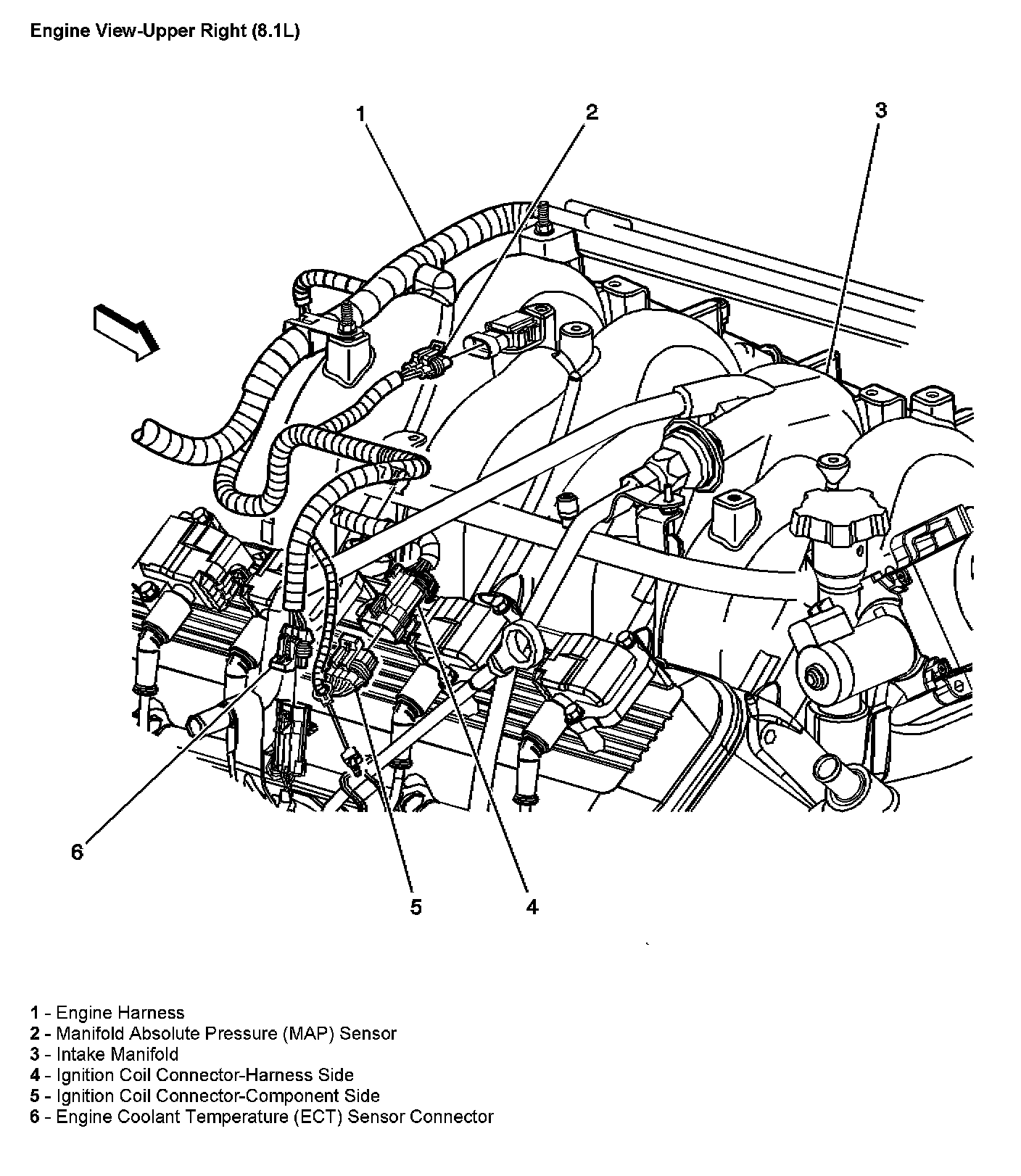

Engine View - Upper Right:
