Knock Sensor: Locations

Engine Oil Level Switch:

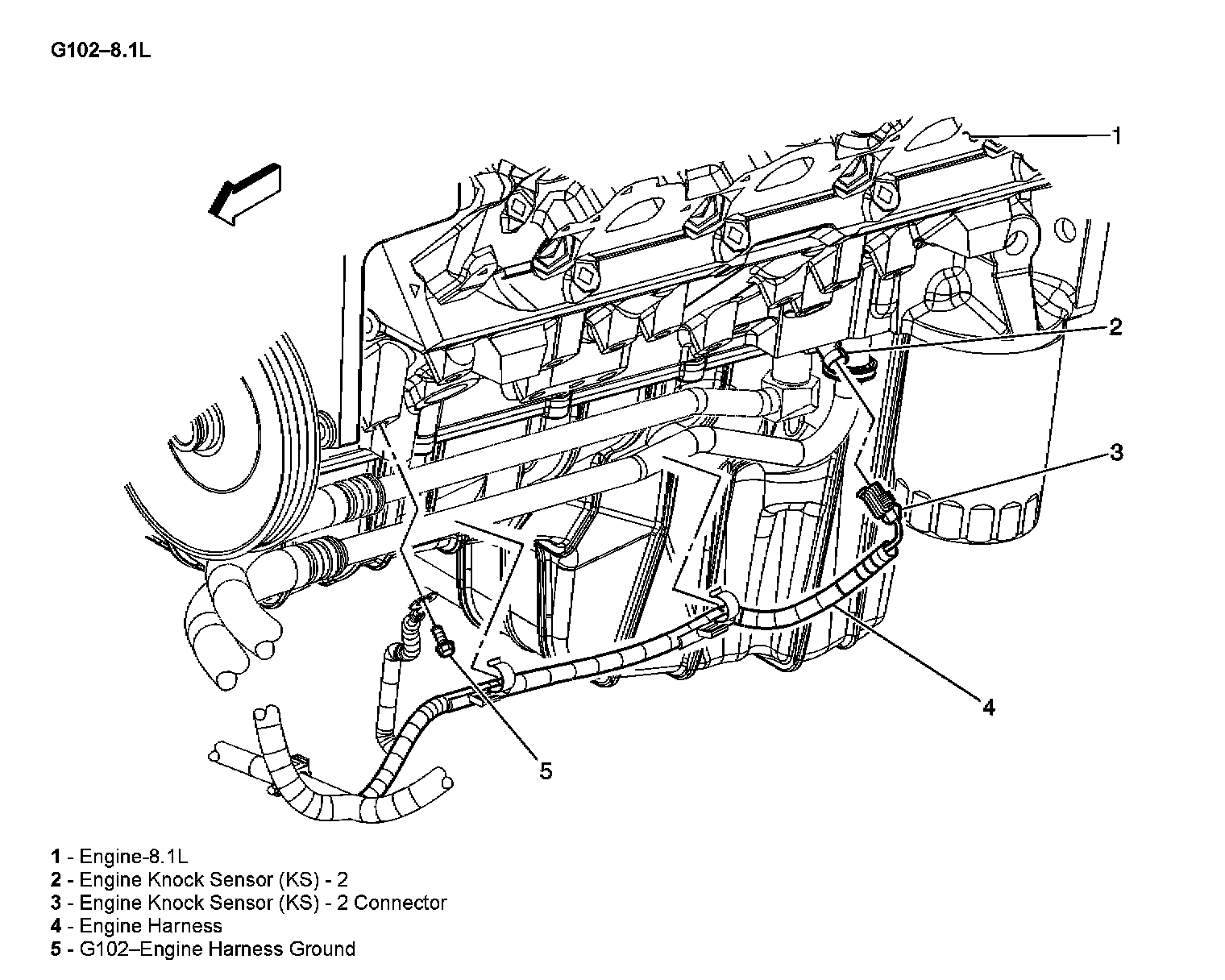

G102:

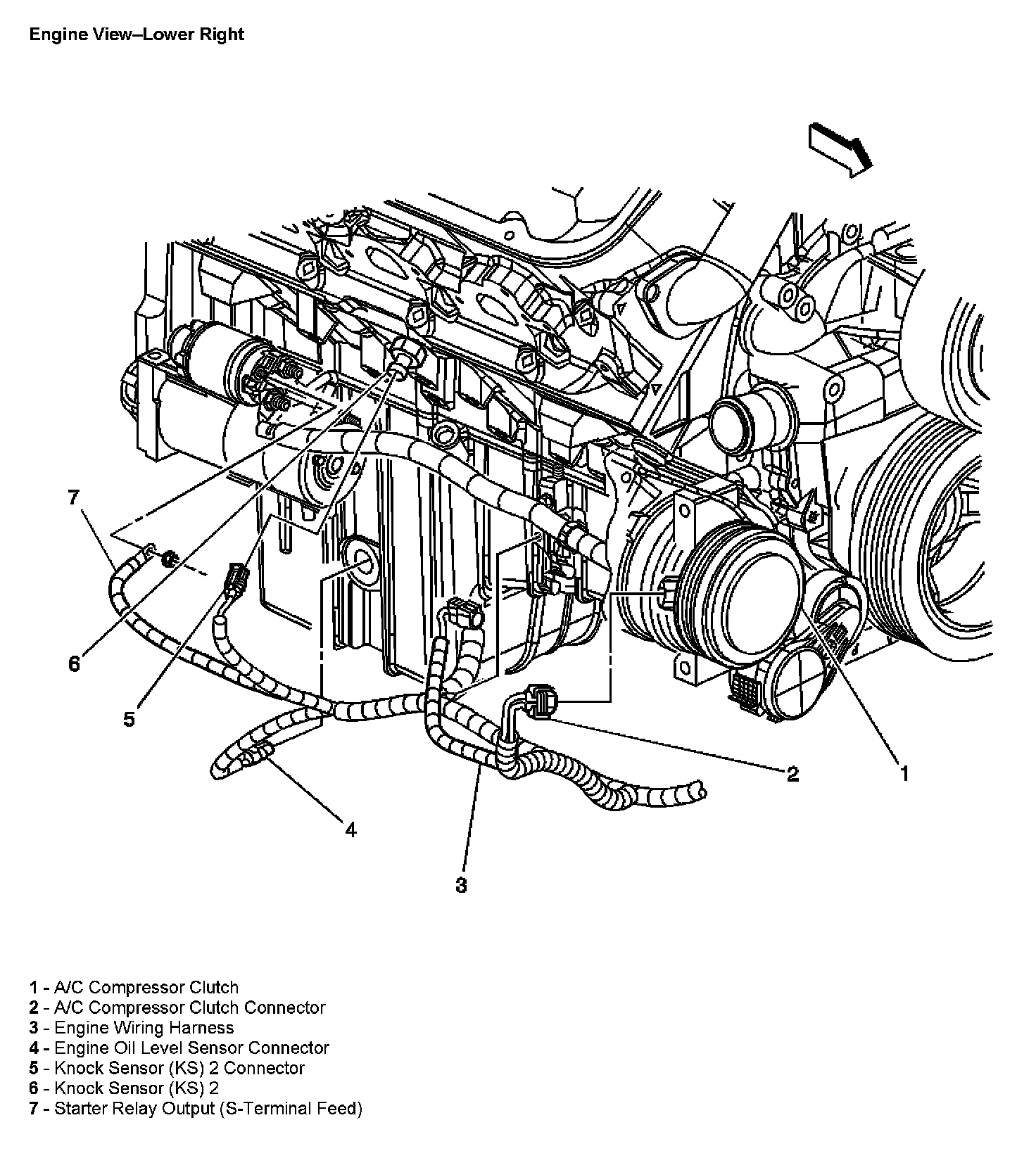

Engine View - Lower Right:

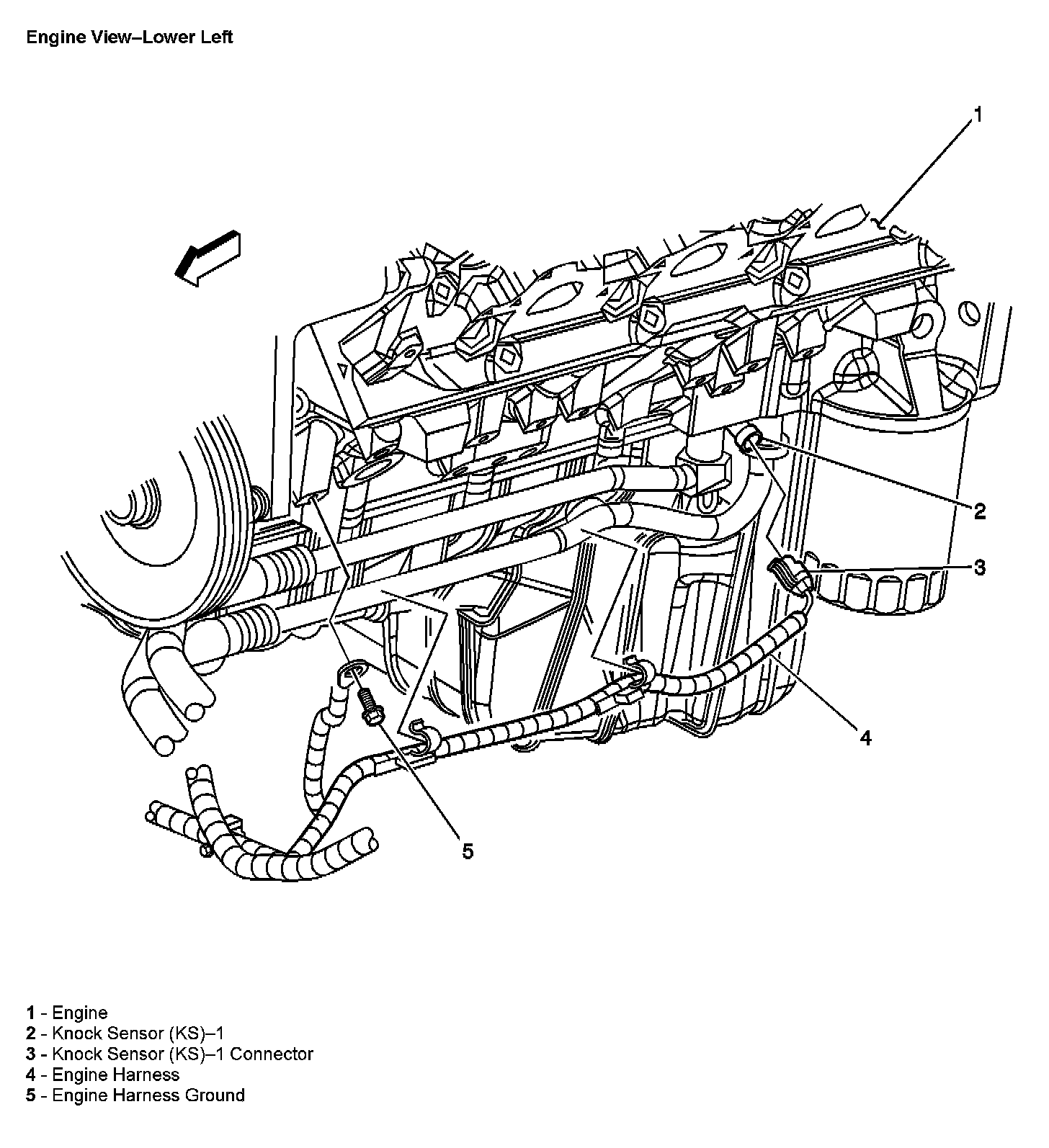

Engine View - Lower Left:
