Cylinder Head and Components

Disassembled Views

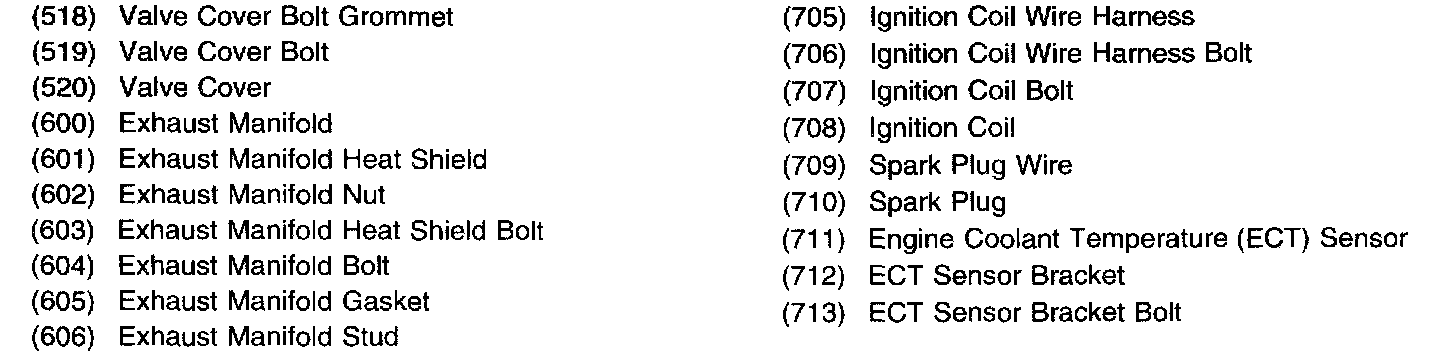

Cylinder Head/Upper Engine

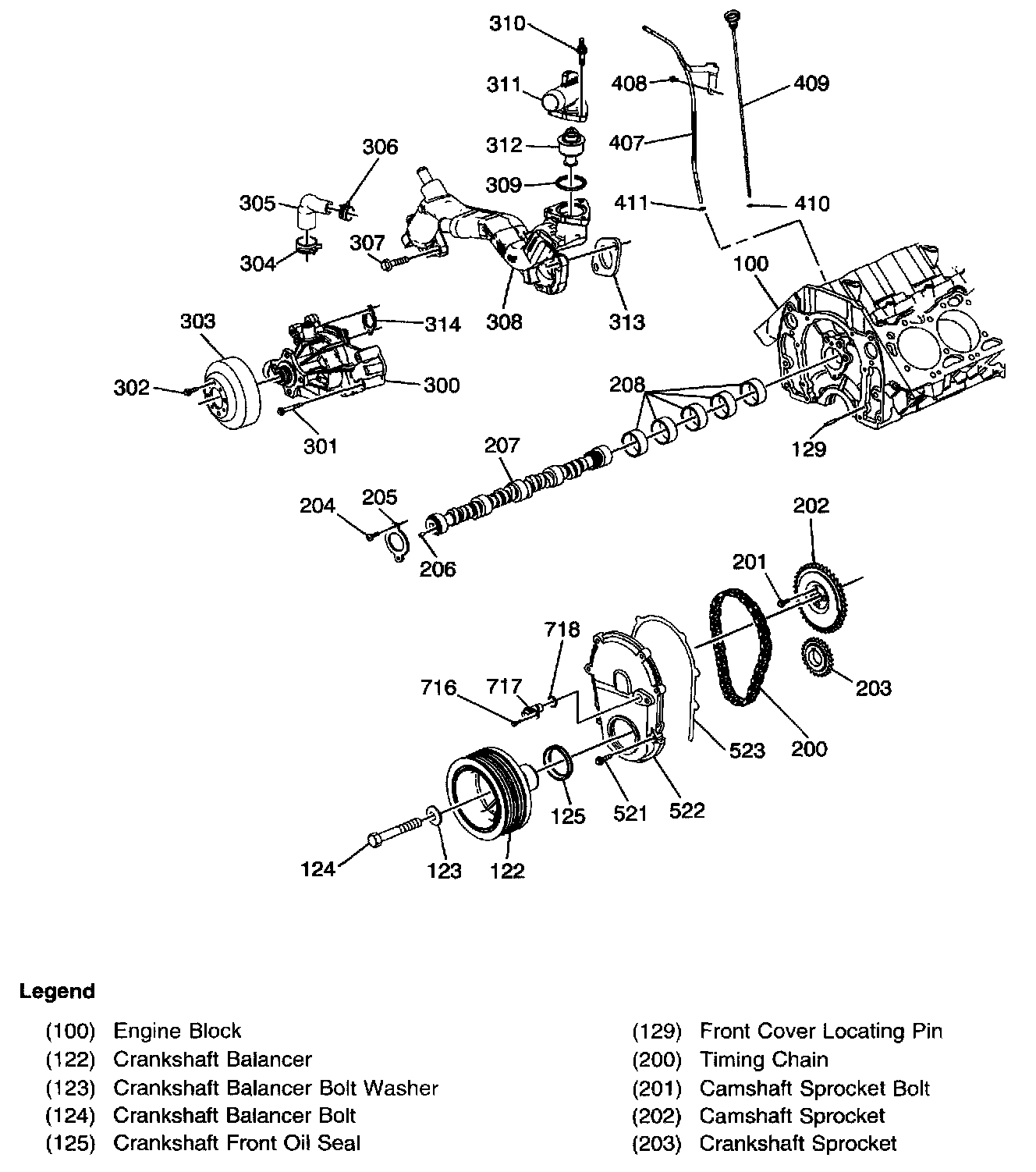

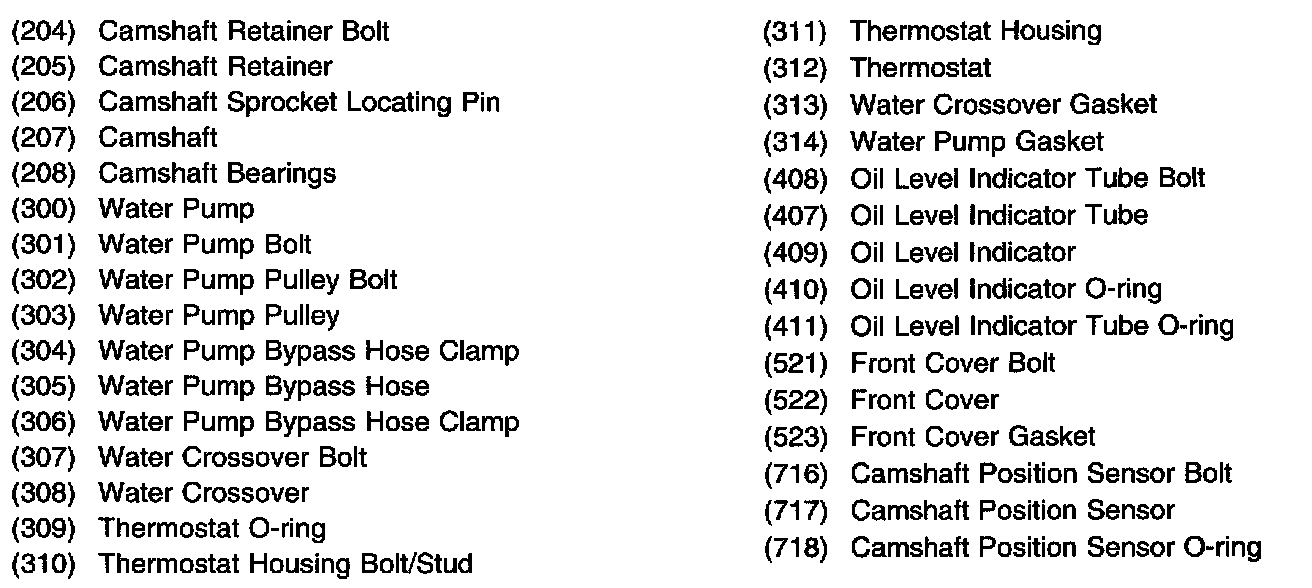

Front of Engine

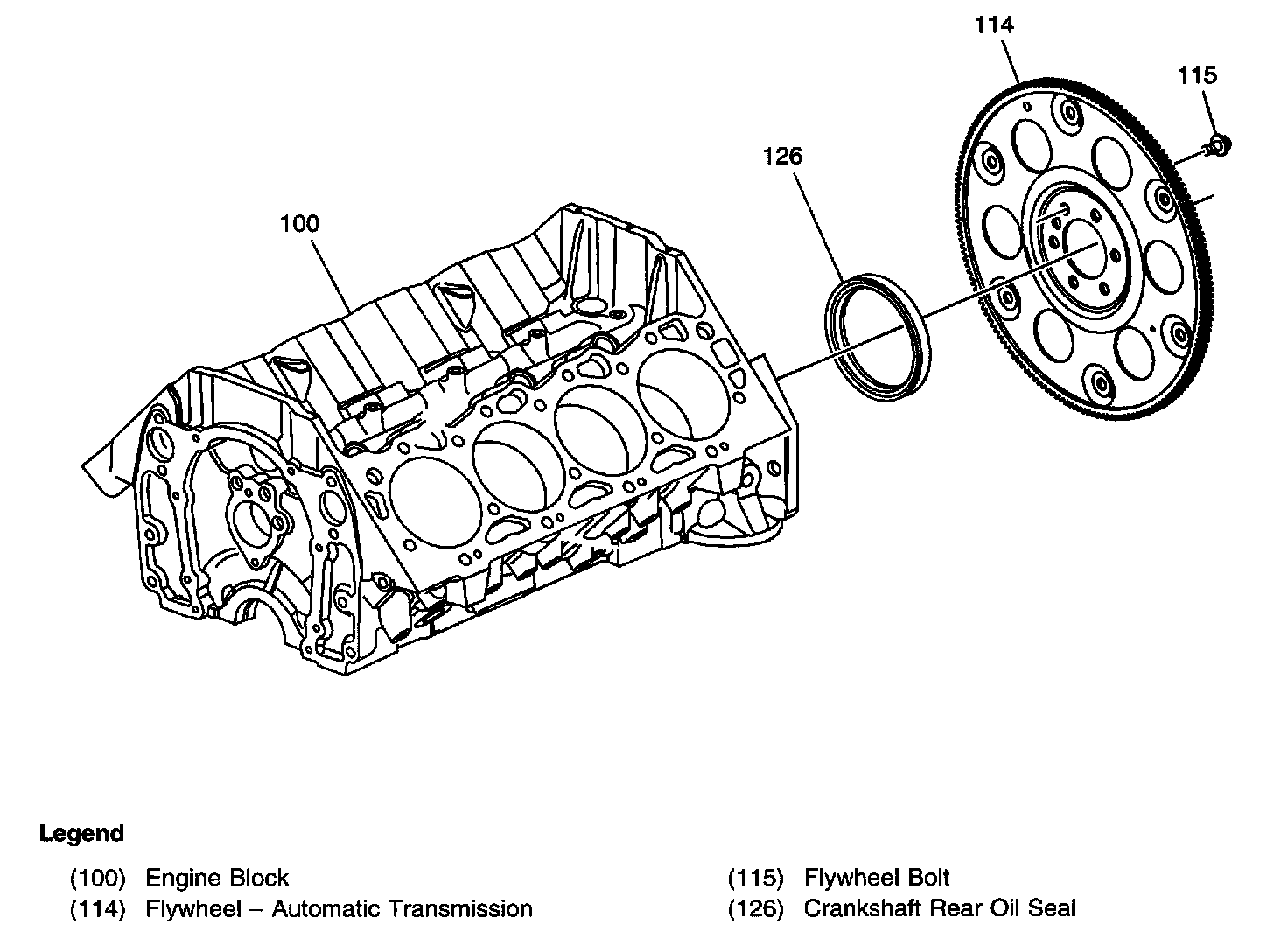

Engine Flywheel

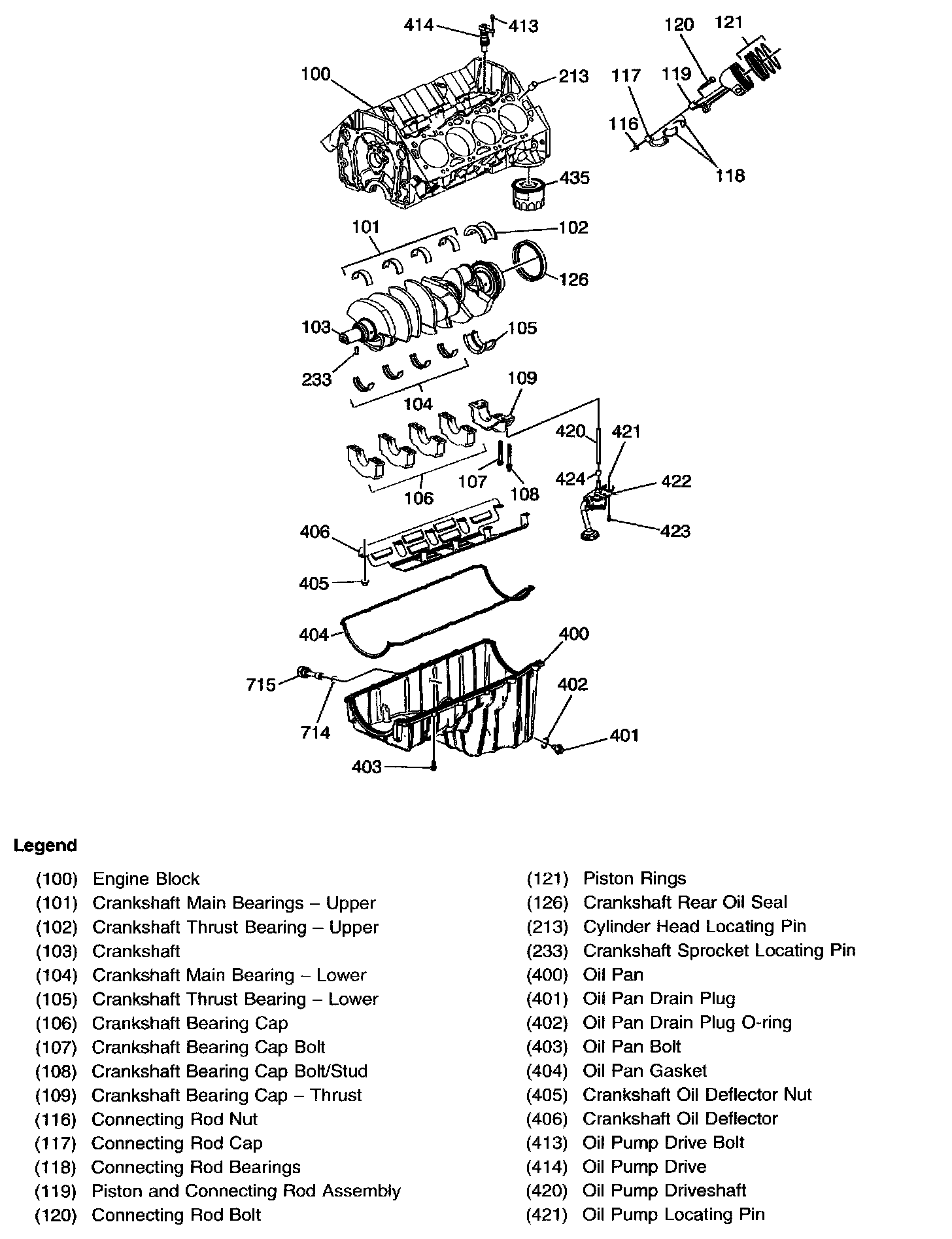

Lower Engine Assembly

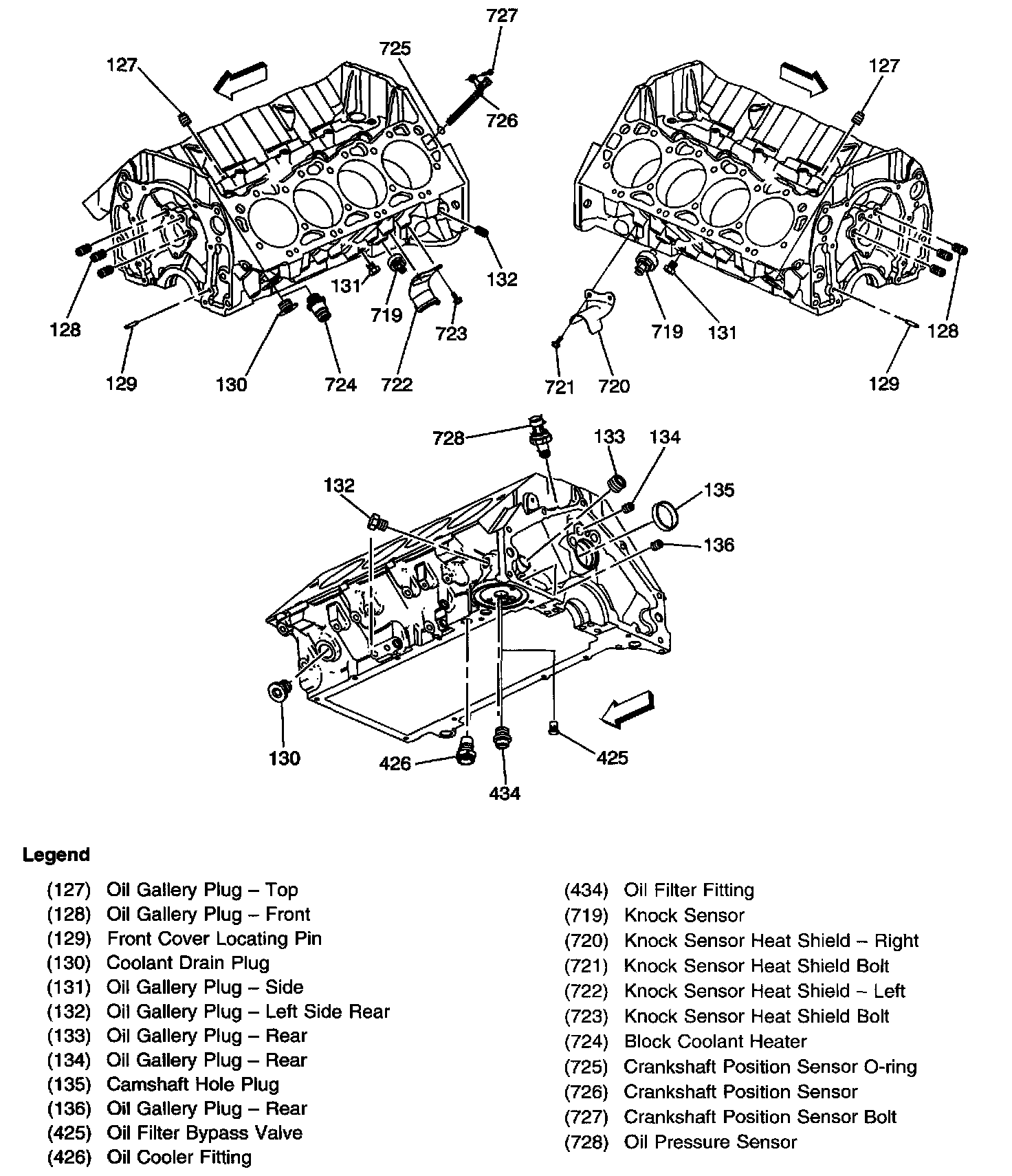

Engine Block Plus/Sensors

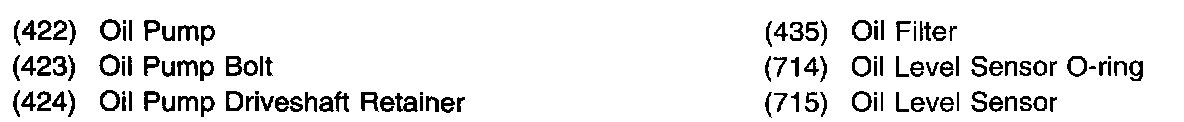

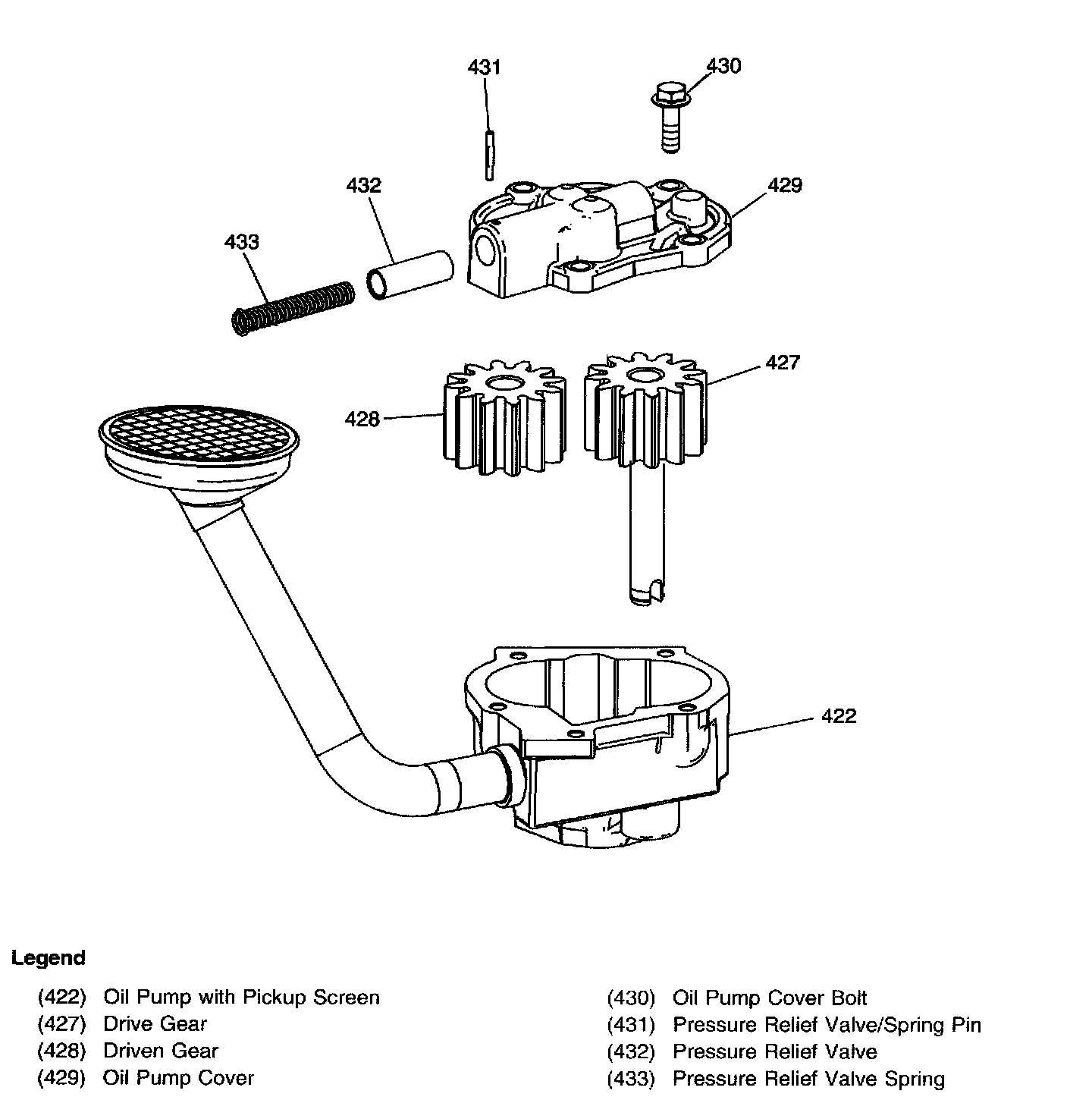

Oil Pump Assembly
